Description
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | LAM Research |
| Part Number | 810-801237-021 |
| Product Type | Stepper Driver Interface PCBA |
| Board Function | Stepper-drive interface |
| Equipment Association | LAM Research Kiyo C Series systems |
| Board Technology | PCB / PCBA |
| Known Revisions | Rev B, Rev C |
| Application | Semiconductor processing equipment |
| Subsystem | Motion / stepper-drive control |
| Exact Supply Voltage | Not confirmed from available documentation |
| Communication Protocol | Not confirmed from available documentation |
| Connector Pinout | Revision/tool dependent; verify from equipment documentation |
| Operating Temperature | Not confirmed from available documentation |
| Calibration Requirement | Tool-dependent |
| Condition | New Surplus / Tested Refurbished |

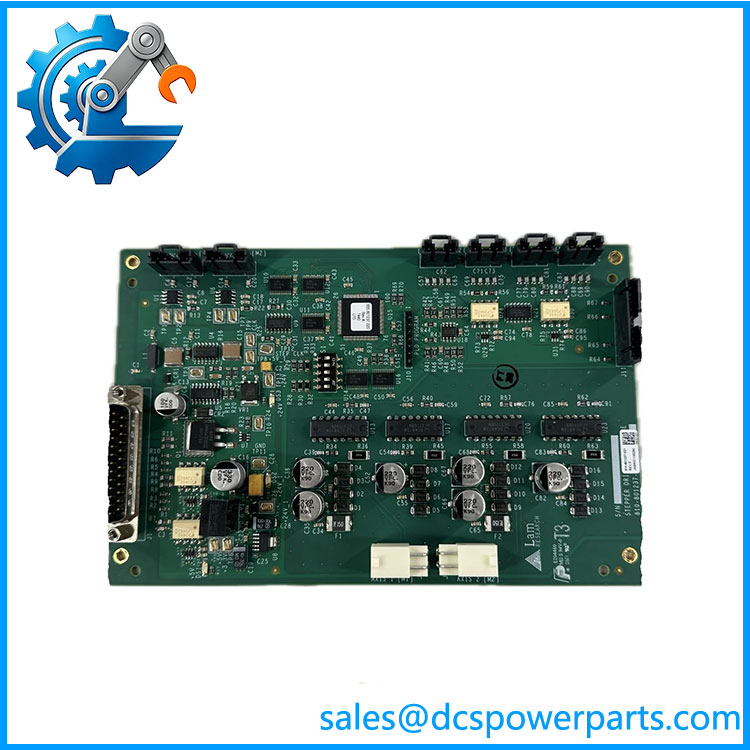

The strongest available identification describes 810-801237-021 as a “PCBA, Stepper Driver Interface” and specifically associates it with LAM Research Kiyo C Series systems.
I would not publish generic PLC specifications for this board. Several secondary records incorrectly classify it as a PLC/control module or power connection board, while the more specific equipment listing identifies it as a stepper-driver interface.
Application Scenarios & Pain Points
In semiconductor equipment, motion faults can stop an entire process sequence even when the underlying stepper motor is mechanically healthy. A failed interface PCBA can sit between otherwise functional controller and drive hardware, making signal-path troubleshooting essential.
Typical Applications
- Kiyo C Series Process Tools: The 810-801237-021 is identified specifically with LAM Research Kiyo C Series equipment, making tool-model verification important before procurement.
- Stepper Motion Control: The board serves as the interface between control electronics and stepper-drive hardware, supporting the electrical command/status path associated with controlled mechanical movement.
- Semiconductor Equipment Maintenance: Useful as a replacement spare when an existing tool has a verified 810-801237-021 board fault and an equipment shutdown is affecting production.
- Legacy Tool Support: Particularly relevant where the original board is no longer readily available through normal equipment-support channels and an exact PCB-level replacement is required.
Field Case:
A stepper-related alarm does not automatically condemn the interface board. Check the drive enable signal, controller output, harness continuity, connector seating, and drive status first. If those checks pass, the interface PCBA becomes a much stronger suspect.
810-801237-021
Related Products
Because LAM Research equipment uses tool-specific hardware, the following parts should be treated as related procurement references, not automatic substitutes.
- LAM Research 810-801237-021 Rev B — Earlier reported board revision. Verify the equipment revision and electrical configuration before replacing a Rev C board with Rev B.
- LAM Research 810-801237-021 Rev C — Later reported revision of the same basic part number. Several equipment-spare records specifically identify a Rev C stepper-driver interface board.
- LAM Research 810-801237-001 — Related 810-801237 family part number. Similar numbering does not establish interchangeability; verify the board function and tool configuration.
- LAM Research 810-801237-011 — Another related 810-801237 family number. Treat it as a cross-reference candidate only after confirming the schematic and revision.
- LAM Research 810-801237-121 — Related part number within the same numbering family. It may represent a different board revision or application and should not be installed based on numbering similarity alone.
- LAM Research 810-801237-022 — Closely numbered companion/variant reported in parts references. Confirm its exact board function before considering it for substitution.
- LAM Research 810-801237-005 — Another member of the 810-801237 family. Useful as a procurement cross-reference but not a confirmed functional equivalent.
- LAM Research 810-046015-010 — Separate LAM Research PCBA associated with control/electronics hardware. It belongs to a different part family and should not be treated as a direct substitute.
The Engineer’s Guide: Field Pitfalls to Avoid
⚠️ Do Not Ignore Rev B vs. Rev C
The same base part number has been documented with both Rev B and Rev C references.
How to avoid it: Photograph the original board before removal. Record the revision letter, PCB markings, connector population, jumpers, and any daughterboard configuration.
⚠️ Do Not Diagnose the Board From the Motor Alarm Alone
A stepper-drive alarm can originate from the motor, drive, harness, controller, or interface board.
How to avoid it: Troubleshoot in this order:
Controller → Interface PCBA → Drive → Motor → Mechanical Axis
Check command and status signals at each boundary rather than swapping boards immediately.
⚠️ Do Not Accept Generic Electrical Specifications
The available public records do not establish reliable voltage, pinout, protocol, or environmental specifications for this exact board.
How to avoid it: For procurement, request the actual-unit photographs and revision, then compare them against the equipment’s service documentation. A physically similar PCB is not enough.
Frequently Asked Questions (FAQ)
What is LAM Research 810-801237-021?
It is a Stepper Driver Interface PCBA used in LAM Research semiconductor processing equipment. Available equipment records specifically associate the part with Kiyo C Series systems.
Is 810-801237-021 a PLC module?
No. It should not be marketed or engineered as a conventional PLC I/O module. The strongest available identification describes it as a stepper driver interface board, designed for semiconductor equipment motion electronics.
What equipment uses 810-801237-021?
Available technical records identify it with LAM Research Kiyo C Series systems.
For an actual replacement, verify the exact tool model, subsystem, and board revision. LAM part numbers can be highly application-specific.
Are Rev B and Rev C interchangeable?
They should not be assumed interchangeable. Both revisions have been reported for 810-801237-021, but available public information does not establish that the revisions are electrically identical.
Compare schematic references, PCB revision, component population, firmware requirements, and the target tool configuration before substitution.
What should I check when buying a refurbished 810-801237-021?
Request:
- Actual PCB photographs
- Complete 810-801237-021 marking
- Rev B or Rev C identification
- Connector and edge-contact condition
- Component condition
- Evidence of power-up testing
- Stepper-interface functional testing where available
- Tool compatibility information
- Warranty terms
A board that simply passes a visual inspection is not adequately tested for production equipment.
Can I use 810-801237-021 from another LAM tool?
Not automatically. Even when the part number matches, verify the tool model, board revision, connector configuration, and application position.
For semiconductor equipment, the safest replacement is an exact part-number and revision match supported by the equipment documentation.
Is the board still available as new?
Availability varies. Records show both new and used examples, including Rev C references, but condition and testing status differ significantly between units.
For a production-critical spare, specify exact part number + revision + actual-unit photographs + functional test evidence rather than accepting “new/used” as the complete condition description.
