Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | KUC711AE |
| ABB Part Number | 3BHB004661R0001 |
| Manufacturer | ABB |
| Product Type | Power Supply Control Unit |
| Application | ABB converter / drive power control |
| System Platform | ABB industrial power electronics systems |
| Control Voltage | 24 VDC system interface (application dependent) |
| Input Measurement | Converter-related monitoring signals |
| Output Signals | Control and status interfaces |
| Installation | Industrial cabinet / converter assembly |
| Communication | System-specific control interface |
| Protection Functions | Power monitoring and fault supervision |
| Mounting Type | Rack or cabinet mounted module |
| Typical Use | Gate control and power management systems |
| Operating Environment | Industrial automation equipment |
Application Scenarios & Pain Points
Power converter failures can stop production without warning. A damaged control unit may create confusing symptoms: drive faults, communication alarms, or repeated restart attempts. The troubleshooting path usually requires checking the control board, gate electronics, power supplies, and feedback circuits together.
Typical applications:
- Steel Processing Lines: Used in ABB drive systems controlling motors for rolling mills, conveyors, and production equipment where precise speed regulation is required.
- Power Generation: Applied in converter systems supporting generator excitation, auxiliary drives, and industrial power control equipment.
- Marine and Offshore Equipment: Supports large motor drive applications where converter reliability affects propulsion or process machinery.
- Heavy Industrial Machinery: Used in high-power automation systems requiring coordinated control between low-voltage electronics and power stages.
Field note: A plant experienced repeated converter trips during motor acceleration. Initial checks focused on the power semiconductor section, but diagnostics pointed toward the control unit. After replacing the KUC711AE and checking interface connections, the drive returned to stable operation.

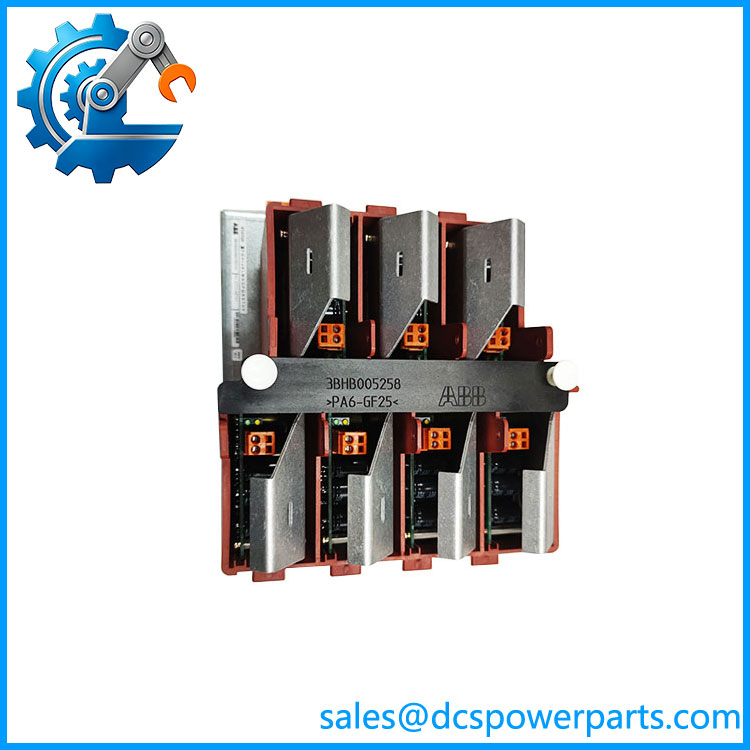

3BHB004661R0001 KUC711AE
Related Products
- ABB KUC711AE 3BHB004661R0101 — Related KUC711AE variant with different ordering configuration. Used where the installed converter documentation specifies this part number.
- ABB 5SHY3545L0010 — Power semiconductor component used in ABB converter systems. Often associated with high-power drive repair applications.
- ABB GVC750BE101 — Converter control-related module used in ABB power electronics systems.
- ABB UNITROL1020 3BHE030579R0001 — Excitation control unit used for generator excitation applications.
- ABB UNS0119A-Z V1 — Control board family used in ABB industrial automation and drive applications.
- ABB 3BHE009681R0101 — ABB power electronics module used in converter system assemblies.
- ABB AC800M PM865 Controller — DCS controller hardware used in ABB automation environments, with different application roles from KUC711AE.
- ABB S800 I/O Modules — Distributed I/O products used in ABB automation systems but not direct replacements for converter control hardware.
The Engineer’s Guide: Field Pitfalls to Avoid
⚠️ Confusing KUC711AE Variants
ABB converter modules may share similar names while having different hardware functions or ordering references.
How to avoid: Match the complete ABB part number, including the final revision code, against the original equipment documentation.
⚠️ Incorrect Interface Connection
A replacement module can power up but fail if control cables or feedback interfaces are connected incorrectly.
How to avoid: Photograph wiring before removal and verify every connector position during installation.
⚠️ Ignoring Power Stage Compatibility
The control unit must match the connected converter hardware.
How to avoid: Confirm converter type, gate unit configuration, firmware compatibility, and parameter backup before replacement.
Frequently Asked Questions (FAQ)
What is the main function of the ABB 3BHB004661R0001?
The is a power control unit used in ABB power electronic systems to manage converter-related control and monitoring functions.
Is the a PLC controller?
No. It is not a general-purpose PLC CPU. It is designed for ABB power electronics and converter control applications.
Can I replace a with another ABB control module?
Not automatically. The replacement must match the converter design, hardware revision, interface connections, and application requirements.
Why does the drive still trip after installing a replacement ?
Possible causes include:
- Incorrect parameter configuration
- Wrong hardware revision
- Damaged gate unit components
- Communication wiring problems
- Faults in the power stage
What should be checked before purchasing 3BHB004661R0001?
Recommended checks:
- Complete ABB part number
- Existing converter model
- Installed control cabinet design
- Firmware or parameter backup
- Connector arrangement
- Fault history
Is a refurbished suitable for industrial drive service?
A tested refurbished unit can be suitable when it passes functional testing, power checks, interface verification, and inspection of connectors and electronic components.
How should the be stored as a spare?
Store the module in anti-static packaging in a dry, clean environment. Avoid humidity, dust, vibration, and corrosive conditions that may affect electronic circuits.
