GE IS200VTURH1BAA Product Description

Product Overview

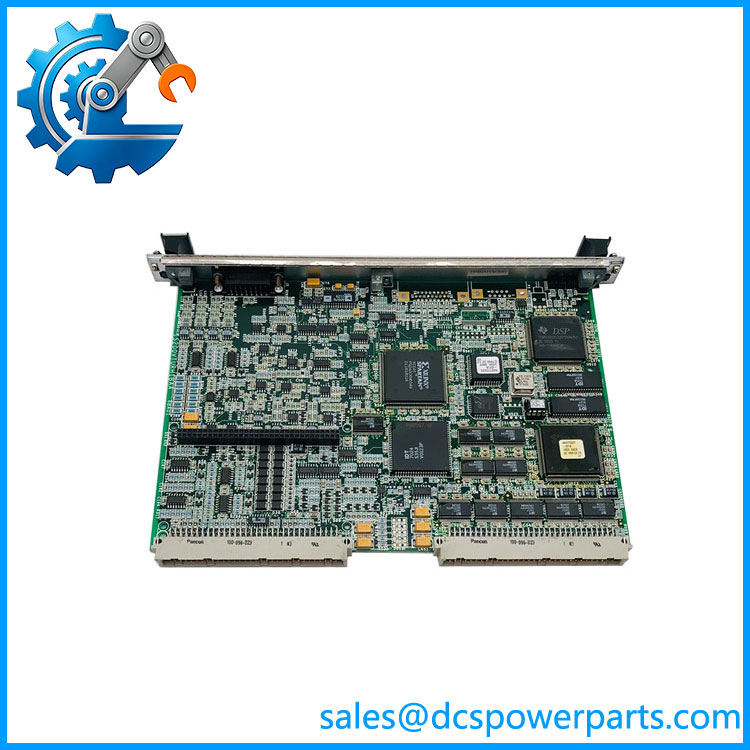

GE IS200VTURH1BAA is a Primary Turbine Protection Board designed for the GE Mark VI Speedtronic Turbine Control System. As a critical protection and control module within the Mark VI platform, the GE IS200VTURH1BAA performs essential turbine safety functions including overspeed protection, turbine speed measurement, generator synchronization support, and critical condition monitoring. It is specifically developed for gas turbine and steam turbine applications where high reliability, fast response, and precise protection logic are required.

The IS200VTURH1BAA GE module, also known as the VTUR (Turbine Specific Primary Trip) board, interfaces with turbine protection circuits, terminal boards, and turbine controllers to process critical operating signals. It supports turbine speed measurement through passive pulse rate devices, controls primary trip relay functions, monitors shaft voltage and current conditions, and provides protection-related feedback to the Mark VI control system.

As a core component of the GE Mark VI Speedtronic family, GE IS200VTURH1BAA provides dependable protection performance for power generation equipment and critical rotating machinery. Its modular VME rack design allows convenient installation, replacement, and maintenance, making it an important spare component for extending the operational life of existing GE turbine control systems.

Technical Specifications

Main Features and Advantages

Advanced Turbine Protection Functionality

The GE IS200VTURH1BAA provides critical turbine protection functions within the Mark VI Speedtronic architecture. It processes turbine speed signals and executes primary trip-related operations to protect rotating equipment from dangerous operating conditions. The module plays a key role in preventing overspeed events and improving turbine operational safety.

Accurate Speed Measurement and Monitoring

The IS200VTURH1BAA GE board supports turbine speed measurement using multiple passive pulse rate inputs. With high-speed signal processing capability, it can accurately monitor shaft rotational speed and provide reliable information for turbine control and protection logic. This enables rapid detection of abnormal speed conditions and supports fast protective action.

IS200VTURH1BAA

Reliable Trip Control Architecture

A major advantage of the GE IS200VTURH1BAA is its ability to manage primary turbine trip relay functions. The board controls overspeed trip circuits connected through TRPx terminal boards and supports both Simplex and Triple Modular Redundant (TMR) turbine control configurations. This architecture improves system availability and fault tolerance in critical power generation applications.

Generator Synchronization and Condition Monitoring

The module supports automatic generator synchronization functions by processing generator and bus voltage-related signals. In addition, it can monitor induced shaft voltage and current conditions, helping operators identify abnormal electrical conditions that may affect turbine reliability.

Easy Replacement and Lifecycle Support

Designed for GE Mark VI turbine control platforms, the IS200VTURH1BAA uses a modular VME board structure that simplifies installation, troubleshooting, and replacement. It is widely used as a maintenance spare for existing turbine control systems, helping reduce downtime and maintain reliable plant operation.

Application Fields

GE IS200VTURH1BAA is primarily used in GE Mark VI Speedtronic turbine control systems installed in power generation facilities. In gas-fired power plants, combined-cycle plants, and steam turbine installations, the module provides turbine protection functions such as overspeed monitoring, trip command processing, and synchronization support. It helps maintain safe turbine operation during startup, normal running, and abnormal operating conditions.

In the oil and gas industry, the IS200VTURH1BAA GE module can be applied to turbine-driven compressors, mechanical drive turbines, and auxiliary power generation systems. These applications require highly reliable protection hardware to prevent equipment damage caused by excessive speed, electrical abnormalities, or mechanical failures.

In petrochemical, energy, and industrial manufacturing facilities, this turbine protection board supports critical rotating equipment where continuous operation is essential. It integrates with GE turbine control architectures to provide fast protection response and accurate equipment monitoring.

For power plants maintaining legacy GE Mark VI systems, GE IS200VTURH1BAA is an important replacement component that helps extend the service life of installed automation systems while preserving existing turbine control strategies and protection configurations.
