GE IC695CPE400-ABAB PACSystems RX3i Rackless CPU Controller Product Description
Product Overview
GE IC695CPE400-ABAB is a high-performance standalone CPU controller belonging to the GE PACSystems RX3i automation platform. Designed for advanced industrial control applications, GE IC695CPE400-ABAB combines powerful processing capability, integrated Ethernet communication, large memory capacity, and modern industrial networking functions in a compact rackless controller architecture. As the central processing unit of the PACSystems RX3i family, GE IC695CPE400-ABAB executes user application logic, manages distributed I/O systems, handles industrial communication tasks, and provides a reliable control platform for complex automation processes.
Unlike traditional RX3i CPUs installed inside a backplane rack, GE IC695CPE400-ABAB adopts a standalone design that can be directly mounted on a DIN rail or panel, providing greater flexibility for machine builders and system integrators. The controller integrates a high-speed processor, non-volatile memory, Ethernet interfaces, USB programming interface, and support for advanced communication protocols such as EtherNet/IP, Modbus TCP, SRTP, OPC UA, and PROFINET-related applications. This architecture allows GE IC695CPE400-ABAB to support modern industrial automation requirements including distributed control, edge computing, data collection, and intelligent manufacturing systems.
As a key controller in the PACSystems RX3i ecosystem, GE IC695CPE400-ABAB is widely used in manufacturing automation, process industries, energy systems, water treatment, transportation, and OEM machine applications. Its combination of high processing speed, flexible communication capability, cybersecurity-oriented design, and compatibility with GE programming environments makes it an ideal solution for upgrading legacy GE control systems or building new high-performance automation platforms.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | IC695CPE400-ABAB |
| Manufacturer | GE Intelligent Platforms / Emerson Automation |
| Product Type | PACSystems RX3i Standalone CPU Controller |
| CPU Architecture | High-speed multi-core processor architecture |
| Processor Speed | Approximately 1.1–1.2 GHz |
| User Memory | 64 MB non-volatile user memory |
| Data Memory | High-capacity RAM memory (configuration dependent) |
| Programming Software | Proficy Machine Edition (PME) |
| Programming Languages | IEC 61131-3 LD, ST, FBD, SFC, C programming support |
| Ethernet Interfaces | Multiple Gigabit Ethernet ports |
| Network Protocols | EtherNet/IP, Modbus TCP, SRTP, OPC UA, PROFINET (configuration dependent) |
| Serial Interface | RS-232 programming/communication port |
| USB Interface | USB 2.0 programming and maintenance port |
| Mounting Method | DIN rail or panel mounting |
| Power Supply | 24 VDC industrial power input |
| Operating Temperature | -20°C to +60°C |
| Memory Expansion | MicroSD support for backup/data logging |
| Application Platform | GE PACSystems RX3i |
Main Features and Advantages
High-performance processing capability:
The biggest advantage of GE IC695CPE400-ABAB is its powerful processing performance. Equipped with a high-speed processor and optimized control architecture, the controller can handle complex logic execution, large-scale data processing, and demanding automation tasks. This makes GE IC695CPE400-ABAB suitable for applications requiring fast scan cycles, advanced motion coordination, and large I/O configurations.
Standalone rackless architecture:
Unlike conventional PLC CPUs that require installation in a dedicated rack, GE IC695CPE400-ABAB features a compact standalone design. This architecture reduces cabinet space requirements and simplifies system installation. The flexible mounting method allows engineers to deploy the controller in machine-level automation systems, distributed control cabinets, and compact industrial equipment.

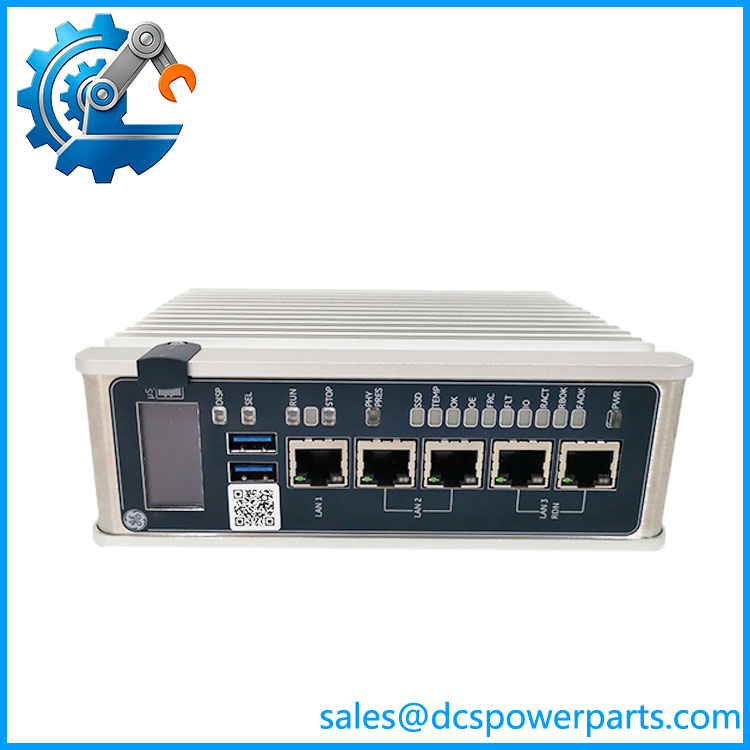

IC695CPE400-ABAB
Advanced industrial communication:
GE IC695CPE400-ABAB provides integrated Ethernet communication capabilities to support modern automation networks. With support for industrial protocols including EtherNet/IP, Modbus TCP, SRTP, and OPC UA, the controller can communicate with HMIs, SCADA systems, remote I/O modules, intelligent devices, and enterprise-level data platforms.
Large memory capacity and data management:
The controller provides sufficient memory resources for complex automation programs, recipes, historical data storage, and system parameters. GE IC695CPE400-ABAB also supports memory expansion and data logging functions, making it suitable for applications requiring advanced monitoring and information management.
Flexible programming and engineering environment:
Through GE Proficy Machine Edition software, GE IC695CPE400-ABAB supports multiple IEC 61131-3 programming languages, allowing engineers to select the most suitable programming method for different applications. This improves development efficiency and simplifies maintenance of existing GE automation projects.
Reliable industrial automation performance:
Designed for continuous industrial operation, GE IC695CPE400-ABAB provides stable performance in demanding environments. Its robust hardware design, diagnostic capabilities, and communication monitoring functions help reduce downtime and improve overall system availability.
Modernization capability for legacy systems:
Many industrial facilities continue operating GE Fanuc and GE automation platforms due to their reliability and long lifecycle. GE IC695CPE400-ABAB provides an effective migration path for upgrading older control architectures while maintaining familiar programming methods and engineering workflows.
Application Areas
Factory Automation Systems:
GE IC695CPE400-ABAB is widely used in manufacturing automation applications such as assembly lines, packaging machines, material handling systems, and production equipment. Its fast processing capability enables precise control of complex industrial processes.
Process Control Applications:
In chemical, pharmaceutical, food processing, and water treatment industries, GE IC695CPE400-ABAB provides reliable control and monitoring functions. It can manage distributed I/O, process sequences, alarms, and communication with supervisory systems.
Energy and Utility Automation:
Power-related applications require stable controllers capable of long-term operation. GE IC695CPE400-ABAB can be applied in energy management systems, auxiliary control systems, and industrial electrical automation projects requiring reliable data exchange.
Machine Builder Solutions:
OEM manufacturers benefit from the compact standalone architecture of GE IC695CPE400-ABAB. The controller provides a powerful yet space-saving solution for automated machinery requiring advanced communication and flexible programming.
Industrial IoT and Edge Applications:
With Ethernet connectivity, data processing capability, and support for modern communication protocols, GE IC695CPE400-ABAB can serve as a control platform for intelligent manufacturing and industrial data integration projects.
Control System Upgrade Projects:
For customers replacing older GE PLC systems, GE IC695CPE400-ABAB offers improved processing performance, communication capability, and system flexibility while preserving investment in GE automation engineering.
Related Products
- GE IC695CPE305-ABAB – RX3i CPU controller with lower processing capability, suitable for standard automation applications.
- GE IC695CPE310 – RX3i CPU module designed for general industrial control tasks.
- GE IC695CPE330 – Higher-performance RX3i CPU supporting advanced control applications.
- GE IC695PNS001 – PROFINET scanner module for RX3i systems.
- GE IC695ETM001 – Ethernet interface module for RX3i communication expansion.
- GE IC695ACC403 – Energy pack module used for memory backup protection.
- GE IC695CHS007 – RX3i universal backplane chassis.
- GE IC695ALG600 – Analog input module used with RX3i controllers for process measurement applications.
