Description
Product Overview

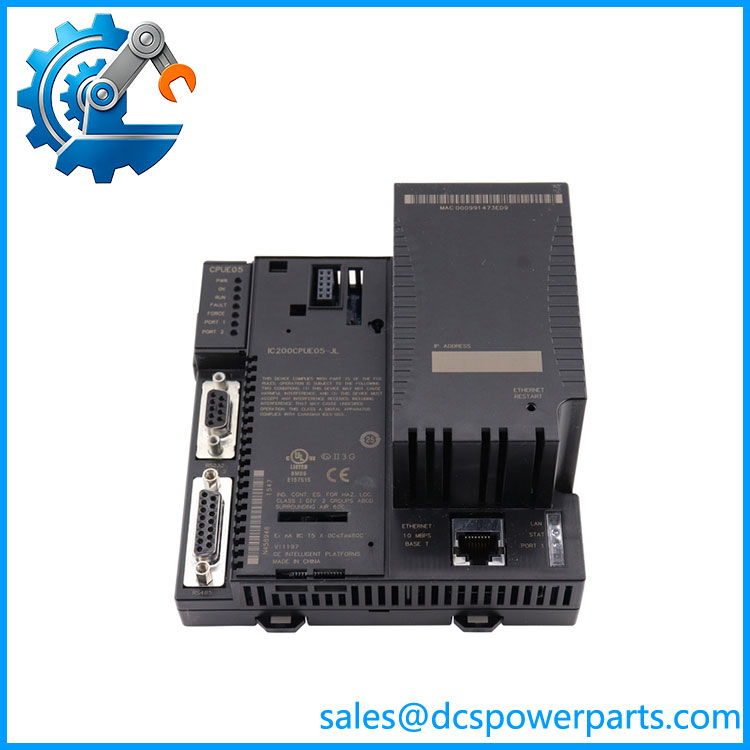

GE Fanuc / Emerson IC200CPUE05 is a VersaMax™ PLC CPU Controller Module with integrated Ethernet communication capability. It is designed to serve as the main processor for GE VersaMax modular PLC systems, providing control logic execution, I/O management, communications, and system diagnostics for industrial automation applications.
The IC200CPUE05 combines a PLC CPU, two serial communication ports, and an embedded Ethernet interface in a compact DIN-rail mounted controller. It supports Ladder Diagram, Sequential Function Chart (SFC), and Instruction List programming, making it suitable for machine control, process automation, and distributed control applications.
The module can control up to 64 VersaMax modules and up to 2048 I/O points, providing a scalable solution for industrial automation systems requiring flexible expansion and network connectivity.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | IC200CPUE05 |
| Manufacturer | GE Fanuc / Emerson Automation |
| Product Family | VersaMax PLC |
| Product Type | CPU Controller Module |
| CPU Function | Main PLC processor |
| Programming Languages | Ladder Diagram, SFC, Instruction List |
| User Configurable Memory | Up to 128 KB (configuration dependent) |
| Program Storage | System flash memory + battery-backed RAM |
| Floating Point Support | Yes |
| Boolean Execution Speed | Approx. 0.8 ms/K typical |
| Serial Ports | 2 × serial ports |
| Serial Communication | RS-232 and RS-485 |
| Ethernet Interface | Built-in Ethernet |
| Ethernet Speed | 10 Mbps |
| Ethernet Connector | RJ-45 UTP |
| SRTP Server Connections | Up to 8 |
| Ethernet Global Data (EGD) Exchanges | Up to 32 |
| I/O Capacity | Up to 2048 points |
| Module Capacity | Up to 64 modules |
| Mounting | VersaMax DIN rail system |
| Power Consumption | 5 VDC / 3.3 VDC backplane supply |
| Real-Time Clock | Integrated |
| Programming Software | GE Proficy Machine Edition |
| Application | Industrial PLC control systems |
Main Features and Advantages
Integrated Ethernet Communication
The GE Fanuc IC200CPUE05 includes an embedded Ethernet interface, allowing direct connection to industrial networks without requiring an additional communication module. It supports Ethernet-based programming, diagnostics, and PLC-to-PLC communication.
Communication features include:
- Ethernet programming access
- SRTP communication
- Ethernet Global Data (EGD)
- Network diagnostics
- Remote PLC communication
Dual Serial Communication Ports
The CPU provides two built-in serial interfaces:
- RS-232 port
- RS-485 port
These ports support connections to operator interfaces, serial devices, legacy controllers, and third-party equipment.
Flexible PLC Control
The IC200CPUE05 provides full PLC functionality, including:
- Logic execution
- Timer and counter operations
- Data handling
- Floating-point calculations
- Communication management
- I/O scanning
Its compact design allows installation in applications where traditional rack PLC systems may be too large.
IC200CPUE05
Expandable VersaMax Architecture
The VersaMax platform allows the IC200CPUE05 to be expanded with:
- Digital input modules
- Digital output modules
- Analog input/output modules
- Communication modules
- Remote I/O interfaces
This modular structure allows systems to be scaled according to machine or process requirements.
Memory Backup and Data Retention
The controller uses flash memory and battery-backed RAM to retain application programs and system data. A super capacitor provides temporary memory backup, with battery support for extended retention periods.
Applications
GE Fanuc IC200CPUE05 is used in a wide range of industrial automation systems.
Machine Automation
Common applications include:
- Packaging machines
- Assembly equipment
- Material handling systems
- Conveyor controls
- Automated production equipment
Process Control
The CPU can manage:
- Pump systems
- Valve control
- Temperature control
- Flow monitoring
- Batch processes
Building and Facility Automation
Applications include:
- HVAC control systems
- Energy monitoring
- Utility management systems
Manufacturing Industries
Typical industries:
- Automotive manufacturing
- Food and beverage
- Chemical processing
- Water treatment
- Power utilities
- General industrial automation
Related Products
GE Fanuc IC200CPUE05 — VersaMax CPU with Ethernet interface.
GE Fanuc IC200PWR102 — VersaMax power supply module.
GE Fanuc IC200MDD841 — VersaMax discrete I/O module.
GE Fanuc IC200ALG230 — VersaMax analog input module.
GE Fanuc IC200MDL Series — VersaMax digital I/O modules.
GE Fanuc IC200ETM001 — VersaMax Ethernet interface module.
GE Proficy Machine Edition — Programming and configuration software for VersaMax PLCs.
