Description
Product Overview

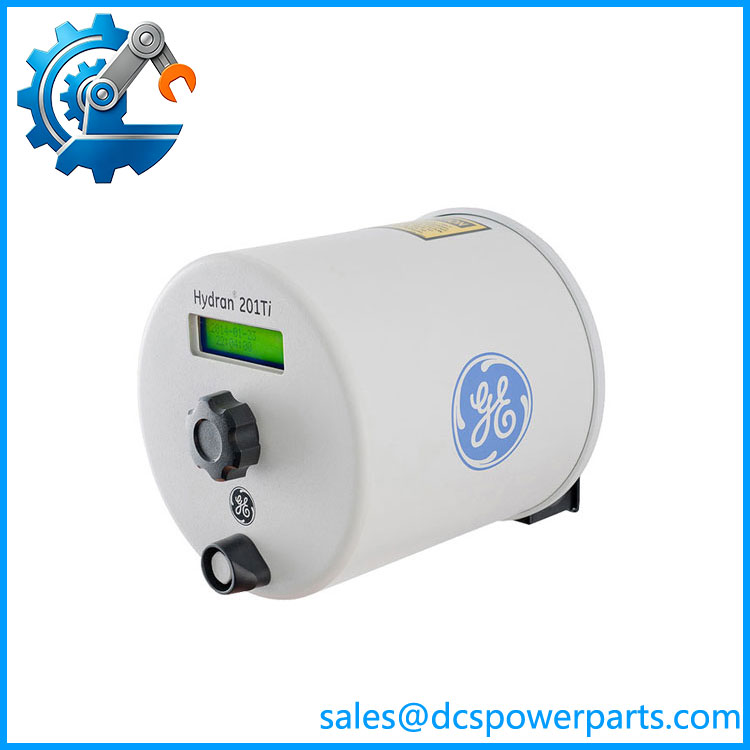

GE Hydran 201Ti is a continuous on-line Dissolved Gas-in-Oil Analysis (DGA) transformer monitoring transmitter designed to provide early warning of developing transformer faults. It is permanently installed on oil-filled transformers and measures a composite concentration of fault gases, providing operators with real-time condition information.
The Hydran 201Ti is part of the GE Vernova Grid Solutions Hydran family and is designed mainly for small and medium power transformers, where continuous monitoring provides an alternative to periodic manual oil sampling.
The unit uses a Hydran composite gas sensor based on fuel cell technology. It responds primarily to hydrogen (H₂), which is a general indicator of transformer faults, and is also sensitive to gases associated with overheating and arcing conditions.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | HYDRAN 201Ti |
| Manufacturer | GE Vernova Grid Solutions (formerly GE Digital Energy) |
| Product Type | Online transformer dissolved gas monitor |
| Monitoring Method | Dissolved Gas-in-Oil Analysis (DGA) |
| Primary Measurement | Composite fault gas concentration |
| Gas Sensitivity | Hydrogen (H₂), Carbon Monoxide (CO), Acetylene (C₂H₂), Ethylene (C₂H₄) |
| Measurement Unit | ppm (parts per million) |
| Sensor Technology | Fuel cell gas sensor |
| Installation | Direct mounting on transformer oil valve |
| Display | Local LCD display |
| Communication | RS-485 standard; Modbus / Hydran protocol options |
| Data Logging | Local event and trend logging |
| Alarm Functions | Gas level alarms and rate-of-change alarms |
| Diagnostics | Built-in self-test and self-diagnostics |
| Enclosure | Outdoor industrial enclosure |
| Application | Oil-filled transformer condition monitoring |
Main Features and Advantages
Continuous Transformer Condition Monitoring
The Hydran 201Ti continuously monitors dissolved fault gases in transformer oil, allowing operators to detect abnormal conditions before major failures occur.
Typical fault indications include:
- Insulation overheating
- Partial discharge activity
- Electrical arcing
- Oil overheating
- Paper insulation deterioration
Early Fault Detection
By tracking gas concentration and trends, the Hydran 201Ti can provide:
- Early warning alarms
- Gas trend analysis
- Transformer health assessment
- Reduced risk of unexpected outages
HYDRAN 201TI
Simple Installation
The transmitter is designed for easy installation:
- Mounts directly to a transformer oil valve
- No oil circulation pump required
- No additional piping required
- No moving mechanical parts
Remote Monitoring Capability
The Hydran 201Ti supports remote integration through serial communication interfaces, allowing connection to:
- SCADA systems
- Substation automation systems
- Transformer monitoring platforms
Self-Diagnostics
Built-in diagnostics monitor:
- Sensor condition
- Electronics health
- Communication status
- System faults
This helps maintenance teams identify equipment issues quickly.
Applications
Power Transformers
Commonly installed on:
- Transmission transformers
- Distribution transformers
- Generator step-up transformers
- Industrial transformers
Electrical Utilities
Applications include:
- Substations
- Grid transformers
- Transmission networks
- Utility asset management systems
Industrial Facilities
Used in:
- Oil & gas plants
- Petrochemical facilities
- Steel plants
- Mining operations
- Large manufacturing sites
