Description
Product Overview
The Honeywell 51305896-200 NIM Modem CE is a Network Interface Module (NIM) Modem Paddle Card designed for Honeywell legacy distributed control systems, particularly the TDC 3000 and TPS (TotalPlant Solution) architectures. It provides the communication interface between the Universal Control Network (UCN) and the Network Interface Module assembly, supporting reliable communication between process controllers, application processors, and other Honeywell control-system nodes.
The Honeywell 51305896-200 is part of the CE-compliant NIM hardware family and replaces earlier generations of NIM modem-related assemblies by integrating modem interface functions into a compact paddle-card design. In installed Honeywell systems, the NIM architecture serves as a key network connection point between LCN and UCN environments, allowing controllers, operator stations, and process-management nodes to exchange process data and system information.
The Honeywell 51305896-200 NIM Modem CE connects to UCN network cabling through dedicated A/B network connections and is typically installed as part of a NIM chassis configuration. It is commonly found in long-life process plants where Honeywell TDC3000 or TPS systems remain in service for refinery, chemical, power generation, and other continuous-process applications.
For maintenance replacement, the 51305896-200 should be evaluated as part of the complete NIM network assembly rather than as a standalone communication card. Engineers should verify the associated NIM chassis, EPNI/PNI configuration, firmware compatibility, and network topology before installation. Some later NIM configurations require matching firmware revisions on related network interface hardware to maintain full communication and synchronization functions.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Honeywell |
| Model | 51305896-200 |
| Product Type | NIM Modem CE Paddle Card |
| Product Family | Honeywell TDC3000 / TPS |
| Function | Network Interface Module Modem Interface |
| Network System | Universal Control Network (UCN) |
| Application | LCN / UCN communication interface |
| Board Type | Paddle Card / Circuit Board Assembly |
| Compliance | CE-Compliant NIM Hardware |
| UCN Interface | UCN Network Cable A & B |
| Mounting | NIM Chassis Assembly |
| Power Supply | 24 VDC system supply |
| Typical Current | Approx. 110 mA |
| Dimensions | Approx. 9-3/8 × 4-1/2 inches |
| Communication Role | UCN network modem interface |
| Compatibility | Honeywell TPS / TDC3000 NIM systems |
| Associated Hardware | EPNI / NIM network assemblies |
| Installation Type | Rack-mounted DCS communication hardware |
| Lifecycle Status | Legacy / Maintenance Replacement |
Specifications are based on Honeywell NIM Modem CE product references.
Main Features and Advantages
Honeywell UCN Network Communication
The primary function of the Honeywell 51305896-200 is providing the modem interface required for Honeywell UCN communication networks. The UCN is a core communication layer within Honeywell TDC3000 and TPS systems, connecting controllers and other process-control components across the plant automation network.

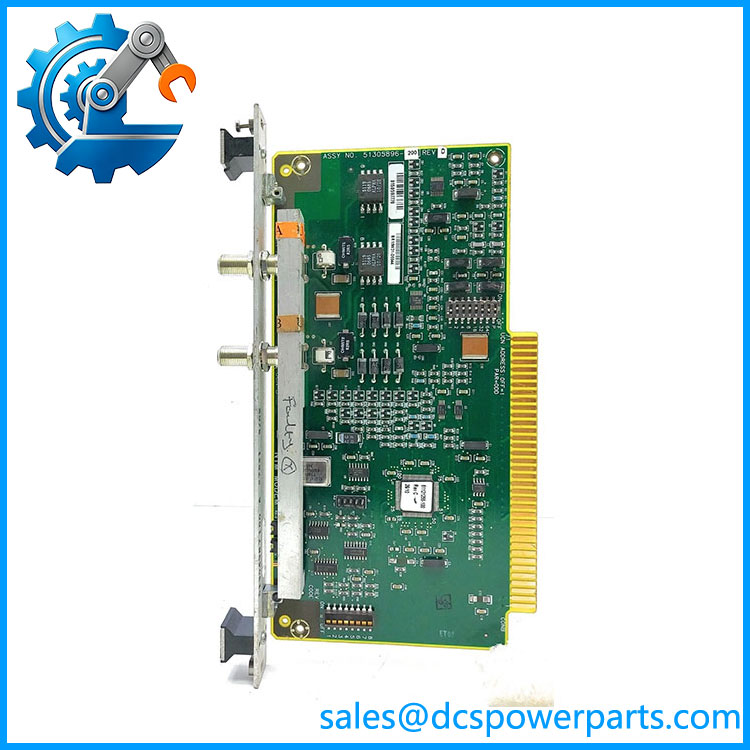

51305896-200 NIM MODEM
The module supports dual UCN network connections, commonly identified as UCN A and UCN B, allowing integration into Honeywell network architectures designed for improved availability.
CE-Compliant NIM Architecture
The 51305896-200 NIM Modem CE was developed for newer CE-compliant NIM configurations. It consolidated functions previously distributed across several older NIM-related assemblies, reducing the number of separate hardware components required within the communication subsystem.
For plants maintaining older Honeywell installations, this design simplifies spare-parts management because one replacement assembly can cover functions previously handled by multiple legacy boards.
Integration With EPNI and Network Interface Hardware
The module is commonly associated with Honeywell EPNI-based communication configurations. It works together with related Network Interface hardware to provide communication between UCN devices and higher-level Honeywell system networks.
When replacing a failed unit, the engineer should confirm:
- Existing EPNI hardware revision
- NIM chassis type
- Firmware compatibility
- Network configuration
- Controller communication status
A replacement board with the same part number does not automatically guarantee full operation if the surrounding NIM hardware has incompatible firmware or configuration.
Legacy DCS Maintenance Application
The Honeywell 51305896-200 remains relevant in installed-base maintenance because many process plants continue operating Honeywell TDC3000 and TPS systems beyond their original design lifecycle.
Typical applications include:
- Oil and gas processing
- Refining facilities
- Chemical plants
- Power generation
- Continuous manufacturing processes
In these environments, maintaining original network hardware is often preferred over large-scale migration because the existing control database, operator interfaces, and validated process logic may depend on the legacy architecture.
Replacement Considerations
Before installing a Honeywell 51305896-200, verify:
- Exact part number: 51305896-200
- NIM chassis compatibility
- UCN network wiring
- A/B network connection status
- EPNI or related interface hardware
- Firmware revisions
- Node addressing
- LCN/UCN communication configuration
- Existing system backups
- Post-installation network diagnostics
The module should be tested as part of the complete Honeywell communication path rather than evaluated only as an individual PCB.
Related Honeywell Products
| Model | Description |
|---|---|
| 51401583-100 | EPNI Enhanced Process Network Interface |
| 51305896-100 | Earlier NIM Modem Version |
| 51304511-200 | NIM Modem CE Compliant Version |
| 51400955-100 | Process Network Interface (PNI) |
| 51401163-100 | Process Network Modem NIM |
| TDC3000 | Honeywell Distributed Control System Platform |
| TPS | TotalPlant Solution DCS Platform |
FAQ
What is Honeywell 51305896-200?
The Honeywell 51305896-200 is a CE-compliant NIM Modem Paddle Card used in Honeywell /TPS distributed control systems for UCN network communication.
What does NIM stand for?
NIM stands for Network Interface Module. It provides the communication interface between Honeywell system networks and connected control-system nodes.
Is 51305896-200 a controller module?
No. It is a communication interface board used within the Honeywell NIM network architecture.
What systems use 51305896-200?
It is primarily used in Honeywell and TPS DCS environments.
What should be checked before replacement?
Verify the NIM chassis type, related EPNI/PNI hardware, firmware revision, UCN cabling, and network configuration before returning the system to operation.
Procurement judgment: The Honeywell 51305896-200 NIM Modem CE is a legacy but important communication component within Honeywell /TPS UCN networks. Replacement success depends on matching the complete NIM communication architecture, not only the board part number. Firmware compatibility and surrounding network hardware should be confirmed before installation.
