Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | HIMA |
| Model | F6705 |
| Product Type | Safety Analog Output Module |
| System Platform | HIQuad / H41q / H51q |
| Number of Outputs | 2 analog outputs |
| Output Type | Current output |
| Output Range | 0/4–20 mA |
| Resolution | 12-bit |
| Output Mode | Source / Sink mode |
| Output Isolation | Galvanically isolated outputs |
| Basic Error | ≤0.2% (40 µA) at 25°C |
| Operating Error | ≤0.4% at 0…+60°C |
| Maximum Cable Length | Up to 1000 m (depending on load conditions) |
| Electrical Strength | 250 V against Analog-GND |
| Source Voltage | 10–30 VDC |
| Power Consumption | Approx. 85 mA at 5 VDC / 130 mA at 24 VDC |
| Diagnostics | D/A converter test, output monitoring, cross-talk test |
| Safety Rating | SIL 3 capable applications |
| Mounting | HIMA controller rack/backplane |
| Application | Safety instrumented systems |
Product Introduction

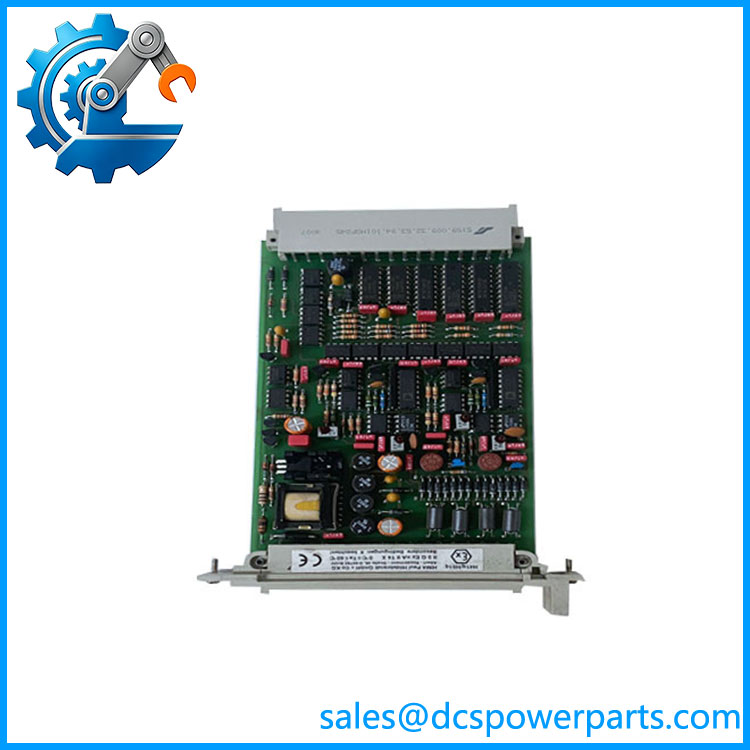

HIMA F6705 Overview
The HIMA F6705 is a safety-related two-channel analog output module designed for HIMA HIQuad safety controller systems. It provides the interface between the controller logic layer and analog field devices that require continuous control signals, such as regulating valves, proportional actuators, and variable speed drives.
The HIMA F6705 receives digital output commands from the safety CPU and converts them through integrated digital-to-analog conversion circuits into industrial standard current signals. The module supports 0/4–20 mA outputs and provides individual galvanic isolation between channels, helping reduce interference caused by field wiring conditions and ground potential differences.
The HIMA F6705 is designed for safety applications where analog control signals must be monitored and validated continuously. Built-in diagnostic routines check important functions including D/A converter linearity, output channel interaction, and safety shutdown operation. These tests allow the safety controller to detect internal module problems and move the output into a defined safe condition when required.
The HIMA F6705 is commonly installed in process industries where safety integrity and controlled analog response are required. Typical systems include refinery shutdown systems, chemical processing plants, power generation equipment, and industrial burner management applications.
When replacing a , engineers should verify the existing HIMA controller family, application configuration, output scaling parameters, field device requirements, and wiring arrangement. The module provides the analog interface, but correct operation depends on the complete safety application configuration.
F6705
Application Scenarios & Field Considerations
Engineering Pain Point
A safety system reports analog output faults, valve positioning errors, or unexpected actuator behavior. The may appear to be the source, but field devices, loop wiring, power supply conditions, and configuration errors are common causes.
Recommended troubleshooting steps:
- Check module diagnostic indicators
- Verify output current with a calibrated meter
- Confirm loop power supply voltage
- Check actuator input impedance
- Review HIMA configuration parameters
- Inspect field cable shielding and termination
The provides the output conversion function, but the complete analog loop determines final control performance.
Typical Applications
Emergency Shutdown Systems (ESD)
Used for:
- Safety valve positioning
- Process shutdown control
- Hazard prevention systems
Oil & Gas Facilities
Applied in:
- Refinery process units
- Offshore platforms
- Compressor protection systems
Power Generation
Used for:
- Turbine control interfaces
- Boiler safety systems
- Auxiliary process regulation
Chemical Processing
Applied for:
- Flow control valves
- Pressure regulation
- Critical process control loops
Technical Pitfalls to Avoid
1. Verify Output Loop Design
Confirm:
- 2-wire or 4-wire loop design
- Source/sink configuration
- Field device input requirements
- Loop resistance
Incorrect loop design can create inaccurate current output.
2. Check Safety Configuration
Before replacement, document:
- Output channel assignment
- Engineering scaling
- Shutdown behavior
- Safety logic references
A replacement module without matching configuration may not operate correctly.
3. Inspect Field Wiring
Common issues include:
- Open circuits
- Short circuits
- Poor shielding
- Incorrect polarity
Analog loops are sensitive to installation quality.
4. Verify Module Compatibility
Confirm:
- HIMA controller family
- Rack configuration
- Firmware compatibility
- Engineering software version
The belongs to specific HIMA safety platforms and should not be treated as a general-purpose analog output card.
