Description
GE Panametrics XDP-221-2
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | XDP-221-2 |
| Manufacturer | GE Panametrics |
| Product Family | XDP Explosion-Proof Display Package |
| Product Type | Gas Analyzer Display / Control Unit |
| Primary Application | Oxygen and thermal-conductivity gas measurement |
| Compatible Transmitters | XMO2, XMTC, O2X1 |
| Software | H₂-cooled generator software |
| Transmitter Supply | 24 VDC |
| Transmitter Signal | 4–20 mA |
| Main Power | 100–240 VAC configuration |
| Display | 4-line backlit LCD |
| Keypad | 6-key infrared |
| Analog Output | User-configurable retransmission |
| Alarm Outputs | Programmable relay outputs |
| Communications | RS232 / RS485 |
| RS485 Function | Multi-drop installations supported |
| Hazardous-Area Protection | Explosion-proof / flameproof |
| Gas Group | IIC |
| Temperature Class | T6 |
| Typical Operating Temperature | −10 to +60 °C |
| Application | Zone 1 hazardous-area gas analysis |
The “-2” portion of XDP-221-2 is significant. GE Panametrics documentation identifies the XDP-221 configuration as an explosion-proof package, with the model coding distinguishing power, keypad, and software configuration. The “2” software selection corresponds to the H₂-cooled generator software, making this configuration particularly relevant to hydrogen purity monitoring around hydrogen-cooled generators.
The XDP platform supplies 24 VDC to the associated transmitter, accepts its 4–20 mA output, displays the selected process variable, provides local programming through the infrared keypad, and provides configurable alarms and analog retransmission.

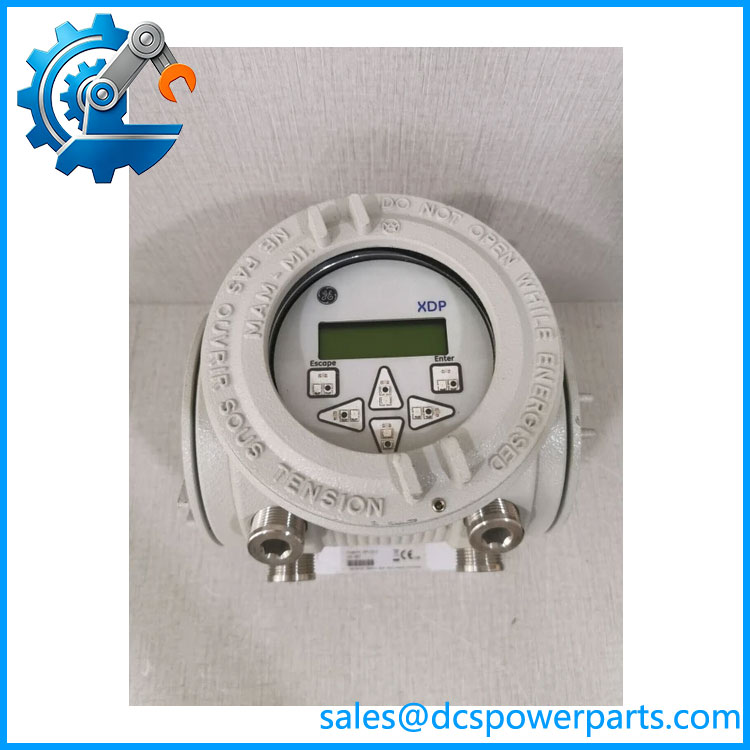

GE XDP‑221‑2
Product Introduction
The GE Panametrics XDP-221-2 is an explosion-proof local display and control package for gas-analysis systems using compatible Panametrics transmitters. It is designed to work with equipment such as the XMO2 oxygen transmitter and XMTC thermal conductivity transmitter, providing local indication and operator access while supplying the remote transmitter with 24 VDC and processing its 4–20 mA measurement signal.
The XDP-221-2 is especially relevant to hydrogen-cooled generator applications, where local hydrogen purity information may need to be viewed and managed in a hazardous area. Its flameproof enclosure, infrared keypad, relay alarms, analog retransmission, and serial interface allow the analyzer package to sit between the field transmitter and the plant control or monitoring system.
Application Scenarios & Field Pitfalls — The Engineer’s Perspective
Engineering Pain Point
Hydrogen-cooled generator systems can have a deceptively simple instrumentation loop: transmitter, display, and DCS input. In practice, the display package is part of the measurement chain. Replacing an with a generic gas display can break transmitter power, scaling, alarm logic, or hazardous-area certification. The correct replacement must therefore be matched to the transmitter model, software configuration, power supply, hazardous-area requirements, and existing signal wiring.
Typical Applications
- Hydrogen-cooled generators — local monitoring of hydrogen purity and related gas-analysis parameters.
- Power generation plants — hazardous-area local indication associated with generator gas monitoring systems.
- Process gas monitoring — local display and retransmission of measurements from compatible thermal-conductivity transmitters.
- Legacy Panametrics installations — replacement of an existing XDP display package while retaining the installed transmitter and field wiring.
Technical Pitfalls to Avoid
- Do not treat -2 as a generic HMI.
It is part of a specific gas-analysis architecture. The transmitter supplies the measurement information, while the XDP provides power, processing, display, programming, alarms, and retransmission. Confirm the installed transmitter model before replacement. - Check the software variant.
The XDP model coding distinguishes standard software from the H₂-cooled-generator software. For a generator application, confirm that the existing system requires the H₂ software configuration rather than assuming that all units are functionally identical. - Do not compromise the hazardous-area installation.
The XDP documentation specifies flameproof protection for Zone 1, Gas Group IIC applications and documents T6 classification. Cable entries, grounding, enclosure integrity, and certification must be checked against the installed hazardous-area design before commissioning. - Verify the 4–20 mA loop before blaming the display.
A blank, incorrect, or unstable gas reading can originate at the transmitter, loop wiring, power supply, or configuration. The XDP accepts the transmitter’s 4–20 mA signal, so loop current should be measured independently during troubleshooting.
Related Products
- XMO2 — Panametrics oxygen transmitter used with the XDP platform for oxygen measurement applications.
- XMTC — thermal conductivity transmitter commonly paired with XDP systems for gas composition and hydrogen-related measurements.
- O2X1 — oxygen analyzer platform supported by the XDP display package.
- — explosion-proof XDP configuration using the standard software package rather than the H₂-cooled-generator software.
- — XDP configuration documented with 100–240 VAC power and standard software for O2X1, XMO2, or XMTC applications.
- — XDP configuration using 100–240 VAC power and H₂-cooled-generator software for XMTC applications.
- XDP-STD — standard XDP display/control platform; useful as a reference when distinguishing standard and explosion-proof configurations.
- XMTC-62-21 — thermal-conductivity transmitter associated with hydrogen purity measurement systems and commonly encountered with XDP installations.
Procurement note: For an installed generator gas-analysis system, the safest identification method is to record the complete XDP nameplate, transmitter model, software designation, supply voltage, and hazardous-area certification before ordering. The suffix should not be reduced to simply “ display,” because the software and enclosure configuration affect system compatibility.
