Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | General Electric (GE) |
| Model | IS430SNUAH1A |
| Product Family | Mark VIe |
| Product Type | Universal I/O Assembly |
| Terminal Board | SUAAH1A |
| I/O Pack | PUAAH1A |
| Analog Channels | 16 simplex channels |
| Thermocouple Input | Configurable |
| RTD Input | Configurable |
| Voltage Input | ±5 V / ±10 V |
| Current Input | 4–20 mA / 0–20 mA |
| Current Output | 0–20 mA |
| Pulse Accumulator | Configurable |
| Signal Processing | Performed by I/O pack |
| Controller Interface | Mark VIe controller network |
| I/O Pack Architecture | Processor board + application-specific acquisition board |
| Temperature Range | -30 to +65 °C |
| Cooling | Free convection |
| Temperature Sensor Accuracy | Within approximately ±2 °C |
| Identification Data | Hardware catalog number, hardware revision, board serial number, firmware catalog number, firmware revision |
| Application | Turbine control / industrial process control |
The strongest technical identification available is that IS430SNUAH1A is a Mark VIe Universal I/O assembly consisting of the SUAAH1A terminal board and PUAAH1A I/O pack. The documented 16 simplex channels can be individually configured for several analog signal types.
Important: Some commercial listings give conflicting power, processor, dimensions, and communication specifications for this exact part number. Those figures should not be used for engineering design unless confirmed against the GE Mark VIe system manual and the actual hardware revision. The functional identification above is much better supported.
Product Introduction

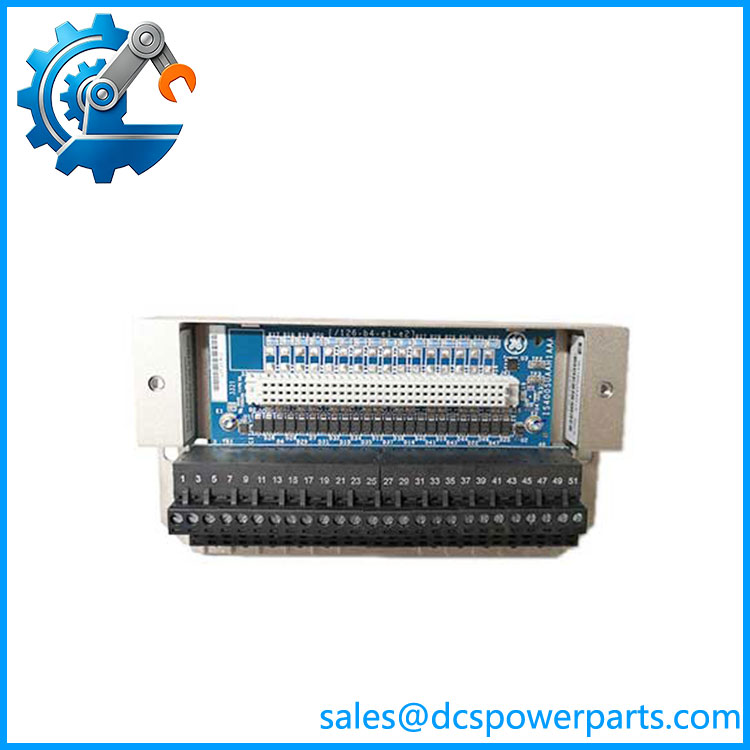

GE IS430SNUAH1A
The GE IS430SNUAH1A is a Mark VIe universal I/O assembly designed for configurable analog signal acquisition and output. It combines the SUAAH1A terminal board with the PUAAH1A I/O pack, allowing one hardware arrangement to handle multiple field-signal types rather than requiring a separate board for every analog measurement category.
That flexibility matters in turbine-control cabinets where thermocouples, RTDs, voltage signals, 4–20 mA transmitters, and analog outputs may coexist. The I/O pack digitizes the field signals, executes its assigned processing, detects internal faults, and communicates the resulting information to the Mark VIe controller.
IS430SNUAH1A
Application Scenarios & Field Pitfalls
Engineering Pain Point
A turbine cabinet can have dozens of temperature, pressure, speed, and process measurements. When one universal I/O assembly develops a fault, the temptation is to replace the entire board without checking the field wiring. That can be expensive and ineffective. A bad transmitter, shield, terminal connection, or incorrect channel configuration can produce symptoms that look like an I/O-pack failure.
Typical Applications
- Gas Turbines — Exhaust temperature, bearing temperature, pressure-transmitter, valve-position, and other analog measurements within Mark VIe control systems.
- Combined-Cycle Power Plants — Process and balance-of-plant measurements requiring mixed analog signal types.
- Steam Turbine Systems — RTD, thermocouple, pressure, and other process instrumentation interfaced to turbine control.
- Industrial Process Equipment — Mixed analog instrumentation where configurable I/O reduces the number of specialized interface assemblies.
Technical Pitfalls to Avoid
- Verify the complete assembly.
IS430SNUAH1A should not be treated as an arbitrary “analog card.” The documented assembly uses SUAAH1A + PUAAH1A. Verify both pieces when replacing damaged hardware. - Check channel configuration before moving wires.
The 16 channels are configurable for different signal types. A channel configured for a thermocouple is not electrically equivalent to one configured for a 4–20 mA transmitter. - Do not assume every channel is identical in use.
The universal nature of the hardware means the installed software configuration determines what each channel is expected to measure. - Check transmitter loop power separately.
A failed 4–20 mA signal does not automatically indicate an I/O problem. Check the transmitter, loop supply, fuse, wiring, grounding, and terminal connections first. - For thermocouples, check polarity and compensation.
Incorrect polarity or wiring can produce plausible-looking temperatures that are nevertheless wrong. Do not rely solely on the presence of a stable reading. - RTD wiring deserves attention.
Confirm the installed RTD wiring arrangement and the configured channel type. A wiring mismatch can create persistent measurement errors. - Check field shielding and grounding.
Analog signals in turbine cabinets are exposed to considerable electrical noise. Poor shield termination or grounding can create unstable measurements that resemble acquisition hardware faults. - Do not use unverified power specifications.
Several online listings disagree about the supply voltage for this assembly. Treat the host Mark VIe terminal-board documentation as authoritative rather than using generic marketplace specifications. - Check the I/O pack identification data.
Mark VIe I/O packs can provide hardware catalog number, revision, serial information, firmware catalog number, and firmware revision to the controller. This is useful when diagnosing configuration or compatibility problems. - Respect the temperature limit.
The documented processor and acquisition electronics are rated for approximately -30 to +65 °C with free-convection cooling. A cabinet running hot can shorten component life and create intermittent failures.
Related Products
- GE PUAAH1A — I/O pack associated with the IS430SNUAH1A assembly. It provides the processor and signal-acquisition functions that interface the terminal-board signals with the Mark VIe controller.
- GE SUAAH1A — Terminal board used with the PUAAH1A I/O pack to form the universal I/O assembly. It provides the field termination/interface portion of the assembly.
- GE IS420PUAAH1A — Mark VIe I/O pack designation associated with the universal/serial I/O hardware family. Verify the exact hardware generation before considering it as a replacement for a Mark VIe IS430 assembly.
- GE IS420YAICS1B — Mark VIe analog I/O pack used for analog signal applications. It is related functionally but is not automatically interchangeable with the assembly.
- GE IS420YDIAS1B — Mark VIe discrete-input I/O pack. It handles discrete signals rather than the mixed analog functions of the .
- GE IS420YDOAS1B — Mark VIe discrete-output I/O pack. Used where digital output control is required instead of universal analog I/O.
- GE IS420UCSCH1B — Mark VIe controller hardware. It performs higher-level control processing; it is not an I/O replacement for .
- GE IS420UCSCH2A — Another Mark VIe controller variant. Useful when identifying the controller architecture connected to a Mark VIe I/O network, but it does not replace the universal I/O assembly.
- GE IS430SSUAH1A — Mark VIe special-function I/O assembly. It belongs to the same IS430 hardware generation but serves a different I/O function and should not be treated as a direct replacement.
- GE Mark VIe I/O Network — The communication architecture connecting Mark VIe I/O packs with their controllers. The I/O pack identifies itself to the controller and transfers processed I/O data over the system network.
Procurement note: The key identification is GE = Mark VIe Universal I/O Assembly, with SUAAH1A terminal-board hardware and PUAAH1A I/O-pack hardware.Do not purchase solely on a generic description such as “Mark VIe analog module.” Before installation, compare the complete part number, hardware revision, terminal-board configuration, I/O-pack revision, firmware, channel assignments, and Mark VIe application configuration. For a turbine control system, those details determine whether the replacement will actually function as intended.
