GE IS420YAICS1B Product Description

Key Technical Specifications

GE identifies the IS420YAICS1B as the Mark VIeS YAIC analog I/O pack. The pack contains a common processor board and an acquisition board dedicated to analog I/O functions. It provides the electrical interface between one or two I/O Ethernet networks and a compatible analog I/O terminal board.

Product Introduction

The GE IS420YAICS1B is an analog I/O pack used in Mark VIe and Mark VIeS control architectures. Its job is to process analog field signals through the associated terminal board and exchange I/O data with the controller over the I/O Ethernet network. The pack supports up to 10 analog inputs and two 0–20 mA analog outputs, making it a central component of the Mark VIeS analog field-I/O interface.

The GE IS420YAICS1B should not be treated as a complete analog I/O module assembly by itself. GE’s Mark VIeS documentation specifies the YAIC pack together with terminal boards such as IS410STAIS2A for simplex operation or IS410TBAIS1C for simplex/TMR configurations. The terminal board provides the field wiring interface while the YAIC performs the signal acquisition, processing, diagnostics, and network communication.

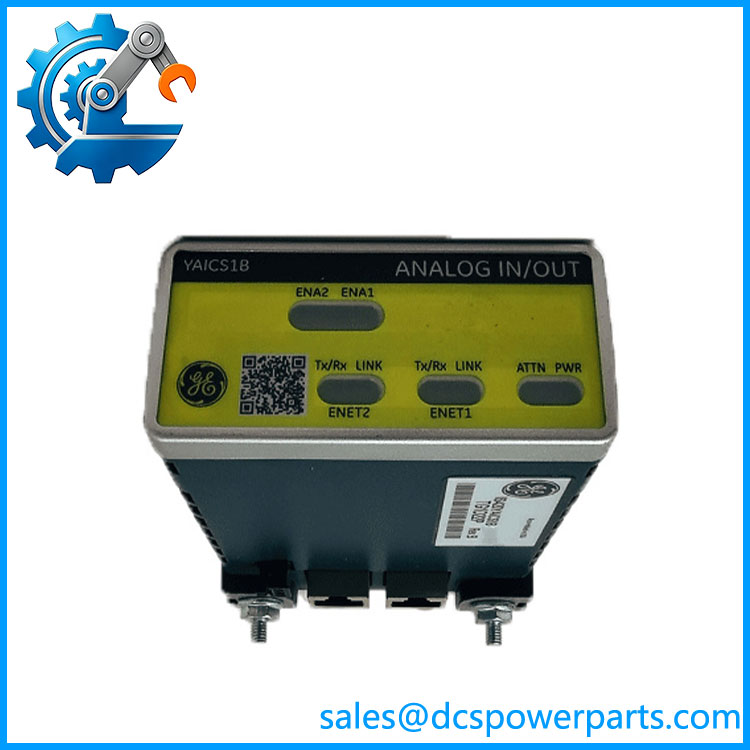

IS420YAICS1B

Application Scenarios & Field Pitfalls — The Engineer’s Perspective

Engineering Pain Point

A common mistake when maintaining Mark VIeS equipment is to identify an analog I/O fault and replace only the visible electronic pack without checking the terminal-board configuration. The IS420YAICS1B and its terminal board form a matched I/O assembly. GE specifically requires the I/O pack configuration to correspond with the attached terminal-board hardware, so the terminal-board part number and hardware form should be checked before installation.

Typical Applications

• Mark VIeS turbine control — analog measurement and control signals within functional-safety-oriented turbine applications.
• Process transmitter interfaces — acquisition of voltage and current signals from field instrumentation.
• Analog actuator control — two 0–20 mA output channels for compatible control devices.
• Simplex analog I/O — one YAIC pack mounted on a compatible terminal board.
• TMR analog I/O — three matching YAIC packs used with the appropriate TMR terminal-board architecture.

Technical Pitfalls

1. Do not confuse the YAIC pack with the terminal board.
The IS420YAICS1B is the electronic I/O pack. It connects to terminal boards such as IS410STAIS2A and IS410TBAIS1C. The terminal board handles field termination and associated signal-interface circuitry.

2. Channel configuration is not identical across all ten analog inputs.
GE specifies channels 1–8 for 1–5 VDC, ±5 VDC, ±10 VDC, and 0–20 mA configurations, while channels 9–10 support 0–20 mA and ±1 mA. Do not assume that every input channel accepts every listed signal type.

3. The two analog outputs are current outputs.
The YAIC provides two 0–20 mA outputs. GE documentation identifies a 14-bit D/A converter and an 800 Ω maximum output load for the specified Mark VIeS implementation. This is not an analog voltage-output pack.

4. Simplex and TMR installations use different quantities.
A simplex configuration uses one YAIC pack. A TMR configuration uses three YAIC packs, with each pack associated with its corresponding I/O network. The three packs in a TMR group must use the same hardware form; mixing YAIC hardware versions within the TMR set is not an acceptable substitution.

5. Do not mix IS420YAICS1A and IS420YAICS1B casually.
The older IS420YAICS1A and the IS420YAICS1B are different hardware forms. GE-related documentation identifies hardware-form compatibility as a configuration issue, particularly for TMR sets and terminal-board matching. Confirm the installed hardware revision before ordering a substitute.

6. Power requirements should be checked at the pack and system level.
GE specifies 28 VDC control power for the YAIC, with 8 W control consumption per pack and potentially additional power when sensor power is sourced from the analog I/O terminal board. Cabinet power capacity should therefore be checked rather than relying solely on the nominal 24/28 VDC label.

7. Ethernet connectivity does not make this a general-purpose Ethernet I/O module.
The RJ45 connections are part of the Mark VIe/Mark VIeS I/O Ethernet architecture. The YAIC communicates with the control system through this dedicated architecture; it should not be treated as a generic Ethernet analog I/O device.

8. Diagnostic behavior is part of the replacement assessment.
The YAIC performs power-up diagnostics involving memory, processor-board hardware, and Ethernet interfaces, while also monitoring internal power supplies. The analog acquisition circuitry has its own diagnostic functions. A replacement should therefore be checked for both communication health and analog-channel health.

9. Safety-system replacement requires configuration verification.
Although the Mark VIeS analog I/O architecture is designed for IEC 61508-compliant safety applications, the achieved safety integrity belongs to the complete configured system rather than the YAIC pack alone. Hardware replacement should follow the site’s approved safety maintenance and validation procedure.

10. Used-stock inspection should include the connectors and hardware revision.
For surplus or previously installed IS420YAICS1B inventory, inspect the two Ethernet ports, DC power connector, DC-37 interface, enclosure, LEDs, and identification label. For a TMR replacement, verify that the hardware form matches the other two packs before installation.

Related Products

• GE IS410STAIS2A — simplex analog I/O terminal board for one IS420YAICS1B; 10 AI and 2 AO.
• GE IS410TBAIS1C — analog I/O terminal board supporting simplex or TMR configurations with IS420YAICS1B packs.
• GE IS420YAICS1A — earlier YAIC hardware form; do not assume direct interchangeability with the B version.
• GE IS420PAICS1B — related Mark VIe/Mark VIeS analog I/O pack family member; verify terminal-board and application compatibility.
• GE IS420YDIAS1B — Mark VIeS discrete/contact-input I/O pack, serving a different I/O function.
• GE IS420YDOAS1B — Mark VIeS relay/discrete-output I/O pack for compatible output terminal boards.
• GE IS410SRLYS2A — Mark VIeS Form-C relay-output terminal board.
• GE IS410STCIS2A — Mark VIeS 24 VDC contact-input terminal board.
• GE IS420UCSCS2A — Mark VIeS Safety Controller that communicates with distributed safety I/O.
• GE IS420ESWBH1A — Mark VIe I/O network switch family component used in applicable IONet architectures.

Procurement note: For an IS420YAICS1B replacement, the minimum useful purchasing record should include the complete pack part number, installed terminal-board model, Simplex/TMR architecture, existing YAIC hardware form, controller/ControlST environment, and application configuration. For TMR systems, confirm that all three I/O packs are the same hardware form. A physically identical-looking pack is not sufficient evidence of interchangeability.
