GE IS410STAIS2A | Simplex Analog I/O Terminal Board | Mark VIeS Safety System

Description

GE IS410STAIS2A / IS400STAIS2AED Product Description

Key Technical Specifications

The published Mark VIeS system guide specifies 12 channels per module—10 analog inputs and two analog outputs. The STAI terminal board supports multiple transmitter wiring arrangements, while its two analog outputs are configured for 0–20 mA operation. GE specifies 0.5% analog-output accuracy, 14-bit D/A conversion, and an 800 Ω maximum load for the output circuit.

Product Introduction

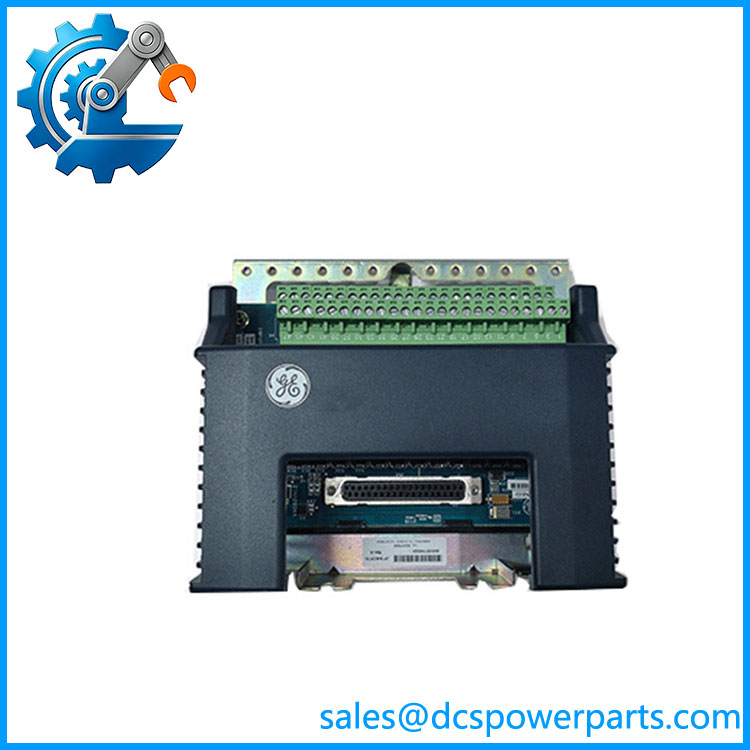

The is a Simplex Analog I/O terminal board used in the Mark VIeS Functional Safety System to connect field analog instrumentation with safety control logic. The board accepts 10 analog inputs and two analog outputs, providing the field termination and signal interface for the associated IS420YAICS1B analog I/O pack. Input channels can accommodate two-wire, three-wire, four-wire, or externally powered transmitters, making the board suitable for a range of process instrumentation arrangements.

The GE IS400STAIS2AED designation is encountered in secondary inventory references alongside . GE’s formal documentation, however, identifies the orderable terminal-board assembly as and the replacement board inside the assembly as IS400STAIS2A. For procurement, the complete installed assembly and physical PCB marking should take precedence over an inventory description.

IS410STAIS2A IS400STAIS2AED

Application Scenarios & Field Pitfalls — The Engineer’s Perspective

Engineering Pain Point

Analog I/O replacement in a Mark VIeS safety system requires more than matching the number of channels. The transmitter wiring method, output loading, I/O pack revision, terminal arrangement, safety architecture, and application configuration all affect field compatibility. The is specifically a Simplex terminal board and should not be treated as the equivalent of the TMR IS410TBAIS1C simply because both provide 10 analog inputs and two analog outputs.

Typical Applications

• Gas and steam turbine safety control — process transmitter acquisition and analog actuator command.
• Generator and auxiliary equipment monitoring — temperature, pressure, flow, level, and other analog process variables.
• Industrial process instrumentation — connection of two-wire, three-wire, four-wire, and externally powered transmitters.
• Mark VIeS maintenance projects — replacement of damaged or failed analog terminal-board assemblies.

Technical Pitfalls

1. Do not confuse STAI with TBAI.
The is the Simplex Analog I/O terminal board. The IS410TBAIS1C is the corresponding TMR-capable analog terminal-board design. Their redundancy architecture and terminal arrangements are different.

2. The IS420YAICS1B is a separate component.
The terminal board provides field termination and interfaces with the YAIC I/O pack. GE identifies IS420YAICS1B as the analog I/O pack used with the safety analog I/O module. A terminal board alone is therefore not equivalent to a complete operating analog I/O module.

3. Verify the transmitter wiring before replacement.
The STAI accepts two-wire, three-wire, four-wire, and externally powered transmitters. A replacement project should document whether the existing field devices are loop-powered or externally powered before moving conductors to a new terminal assembly.

4. Do not treat the 0–20 mA outputs as universally interchangeable with every 4–20 mA application.
GE’s STAI documentation specifies the analog outputs as 0–20 mA. The actual control application may impose its own scaling and engineering-range requirements, so verify the configuration before assuming a direct output replacement.

5. Output loading must be checked.
GE specifies an 800 Ω maximum load for the 0–20 mA output. Long cable runs, additional receiving devices, barriers, and signal conditioners can increase the total loop burden. Check the complete circuit rather than evaluating the terminal board in isolation.

6. Confirm the board-level suffix.
The relationship between , IS400STAIS2A, and the supplied IS400STAIS2AED should be documented in the procurement record. Secondary listings use the AED suffix alongside , but the formal GE system documentation uses for the orderable terminal board and IS400STAIS2A for the replacement board. A photograph of the PCB label is the safest final check when sourcing a board-only replacement.

7. Safety classification belongs to the complete system.
GE specifies the analog I/O module as IEC 61508 compliant, but the presence of a safety-rated terminal board does not by itself make a particular process loop SIL-rated. The complete safety architecture, configuration, diagnostics, field devices, and application calculations must be considered.

8. Check the required I/O scan rate.
GE documents supported controller I/O scan rates of 10, 40, 80, and 160 ms. Existing application configuration should be checked before changing the analog I/O hardware, especially where control-loop timing is important.

Related Products

• — Mark VIeS safety analog I/O pack used with the STAI terminal board.
• IS410TBAIS1C — TMR Analog I/O terminal board supporting Simplex or TMR configurations.
• IS400STAIS2A — board-level identifier associated with the terminal-board assembly.
• IS400TBAIS1C — board-level counterpart associated with the TMR TBAI terminal board.
• IS410SUAAS1A — Universal Analog Simplex I/O terminal board with a different 16-channel signal configuration.
• IS420YUAAS1A — Universal Analog Safety I/O pack used with the corresponding universal analog architecture.
• IS410TVBAS2B — Mark VIeS vibration/proximity terminal board for a different measurement application.
• IS410SSCAH2A — Simplex serial communication terminal board, not an analog I/O replacement.

Procurement note: For an replacement, record the complete terminal-board number, PCB marking, hardware revision, installed I/O pack, terminal-block arrangement, field wiring type, and Mark VIeS application configuration. Do not approve interchangeability solely because two listings show the same STAI description.
