Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | IS220PAICH1A |
| OEM Part Number | 336A4940CSP3 |
| Manufacturer | General Electric (GE) |
| Product Series | Mark VIe |
| Functional Acronym | PAIC |
| Product Type | Analog Input/Output I/O Pack |
| Main Function | Analog signal acquisition and output control |
| System Platform | GE Speedtronic Mark VIe |
| Input Type | Analog voltage/current inputs |
| Output Type | Analog current outputs |
| Power Supply | 28 VDC nominal |
| Communication Interface | Dual Ethernet IONet communication |
| Terminal Board Compatibility | IS200STAIH1A / IS200STAIH2A / IS200TBAIH1C |
| Mounting | Mark VIe I/O rack / panel installation |
| Environmental Rating | Industrial turbine control environment |
| Hazardous Area Support | Available with approved terminal board combinations |
Application Scenarios & Pain Points
A failed analog channel can quietly degrade turbine performance before creating a hard trip. In a power plant, a small signal error from a pressure transmitter or valve feedback loop may lead technicians down the wrong troubleshooting path.
Typical applications:
- Gas Turbine Control: Used for monitoring analog process variables such as pressure, temperature, and flow signals while providing control outputs to field devices.
- Steam Turbine Systems: Supports analog feedback and command signals associated with turbine auxiliaries, regulating systems, and protection-related measurements.
- Balance-of-Plant Control: Handles analog measurement points in auxiliary systems where reliable data collection is required.
- GE Mark VIe Retrofit Projects: Used when maintaining existing turbine control cabinets during hardware lifecycle extension or migration work.
Field note: A compressor package experienced repeated anti-surge valve warnings. Initial checks focused on the valve actuator, but trend data showed the analog output signal from the I/O pack had drifted outside expected limits. Replacing the PAIC module and verifying scaling restored normal operation.

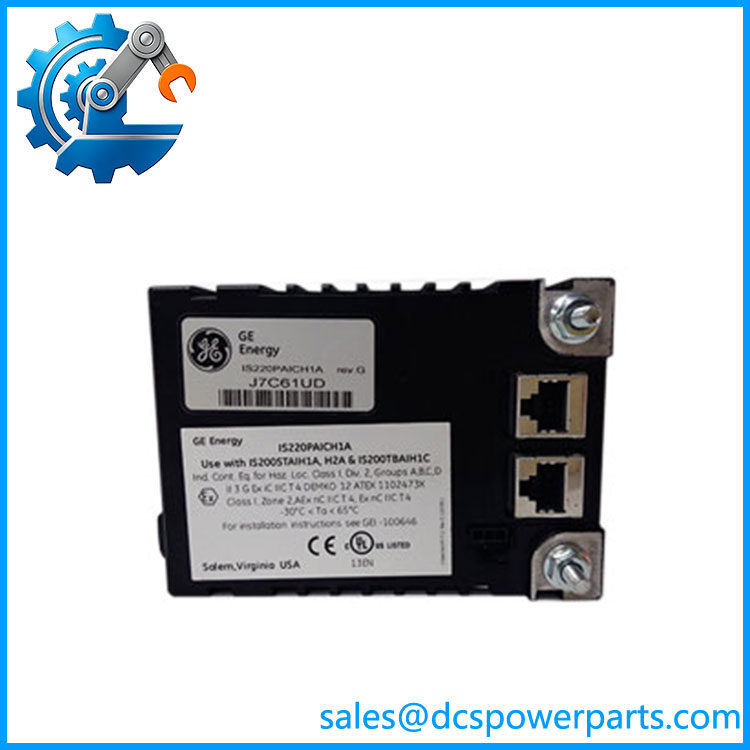

IS220PAICH1A 336A4940CSP3
Related Products
- GE IS220PAICH1B — Updated PAIC analog I/O pack variant. Similar function, but revision compatibility should be verified before substitution.
- GE IS220PAICH2A 336A4940CSP11 — Related PAIC module with different hardware configuration. Used where the control design requires a different I/O arrangement.
- GE IS220PTURH1A — Mark VIe turbine-specific I/O pack used for speed and timing-related signals. Different signal function from PAIC.
- GE IS220YAICS1A — Safety analog I/O pack for Mark VIeS safety applications. Not a direct replacement for standard PAIC modules.
- GE IS200STAIH1A — Terminal board compatible with IS220PAICH1A. Provides field wiring connection for analog signals.
- GE IS200STAIH2A — Alternative terminal board option for PAIC installations. Verify wiring drawings before replacement.
- GE IS200TBAIH1C — Terminal board option used with PAIC analog I/O applications.
- GE IS420PAICH1B — Mark VIe later-generation analog I/O pack family. Requires system compatibility confirmation before migration.
The Engineer’s Guide: Field Pitfalls to Avoid
⚠️ Ignoring Terminal Board Compatibility
The I/O pack and terminal board work as a pair. A physically identical replacement may not match the installed field wiring.
How to avoid: Confirm whether the cabinet uses STAIH1A, STAIH2A, or TBAIH1C before removing the existing unit.
⚠️ Loading the Wrong ToolboxST Configuration
A replacement PAIC module may power up but report channel errors if the application configuration does not match.
How to avoid: Save the current Mark VIe project, verify hardware identification, and compare I/O assignments before downloading.
⚠️ Overlooking Field Wiring Problems
Analog faults are often caused by loose shield connections, poor grounding, or damaged transmitter wiring.
How to avoid: Inspect terminal screws, cable shields, and connector pins. A clean backplane contact matters—especially in cabinets that have been running for many years.
Frequently Asked Questions (FAQ)
What is the GE IS220PAICH1A 336A4940CSP3 used for?
The GE IS220PAICH1A 336A4940CSP3 is a Mark VIe PAIC Analog I/O Pack used for analog signal input and output functions in GE turbine control systems.
Is the IS220PAICH1A a PLC analog module?
No. It performs similar signal handling functions, but it is designed specifically for GE Mark VIe turbine automation architecture rather than a general-purpose PLC platform.
Which terminal boards are compatible with IS220PAICH1A?
Common compatible terminal boards include:
- IS200STAIH1A
- IS200STAIH2A
- IS200TBAIH1C
Compatibility should be confirmed against the installed cabinet drawings.
Can replace IS220PAICH1B?
Not automatically. Although both belong to the PAIC family, hardware revision, firmware support, and system configuration must be checked before replacement.
What are common failure symptoms of a PAIC module?
Typical symptoms include:
- Analog input channel alarms
- Incorrect transmitter readings
- Analog output command errors
- Loss of communication diagnostics
- I/O pack health faults
Does replacing the require software configuration?
Yes. The physical replacement is only one part of the process. Engineers should verify ToolboxST hardware configuration, channel scaling, diagnostics, and I/O assignments after installation.
Is a refurbished GE suitable for turbine service?
A tested refurbished unit can be suitable when communication checks, analog channel testing, power verification, and compatibility with the installed Mark VIe configuration are confirmed before returning the turbine control system to operation.
