GE IS215WETAH1C 109W6503P001 WETA Topbox A Module
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | IS215WETAH1C |
| GE Reference | 109W6503P001 |
| Manufacturer | General Electric (GE) |
| Product Family | WETA |
| Module Designation | Topbox A |
| Hardware Revision | H1C |
| Product Type | Wind turbine control / interface module |
| Application | GE Wind Energy turbine control |
| System Association | GE Mark VIe-related wind turbine control equipment |
| Communication | System-specific Ethernet / IONet architecture; verify installed configuration |
| Installation | Topbox electrical cabinet / system-specific mounting |
| Field Interface | Determined by the complete WETA cabinet and connected modules |
| Operating Voltage | Verify from equipment documentation and nameplate |
| Operating Temperature | Verify exact application and hardware documentation |
| Protection Rating | Cabinet-dependent; do not treat the PCB as a standalone IP-rated device |
A GE parts line card identifies IS215WETAH1C under the WETA – Wind Energy family and gives 109W6503P001 as its associated part number. The same listing distinguishes WETA from the related WETB and WETC Topbox modules, which is important when selecting a replacement.
Product Introduction

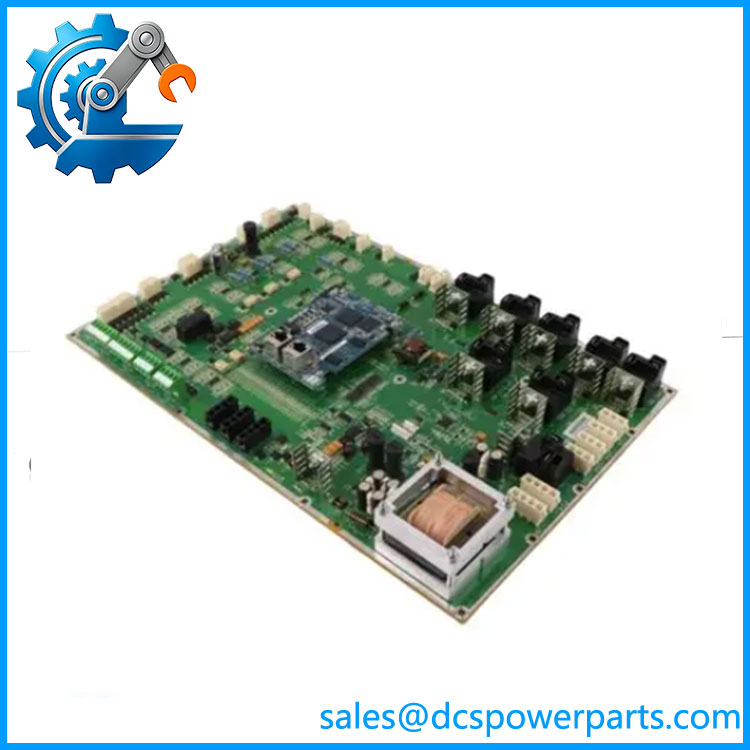

The GE IS215WETAH1C 109W6503P001 is a WETA Topbox A module used in GE wind-energy control equipment. It is part of the electrical control hardware installed in the turbine Topbox cabinet and should be evaluated as a system-specific control assembly rather than as a conventional standalone PLC analog or digital I/O module. GE equipment records directly associate the assembly with wind-turbine control hardware.
The WETA designation is significant when replacing the board. Related GE assemblies such as WETB and WETC perform different Topbox functions, so the fact that another board physically fits the cabinet does not establish electrical or firmware compatibility. The H1C revision and 109W6503P001 reference should be retained during procurement and maintenance identification.
IS215WETAH1C
Application Scenarios & Field Pitfalls — The Engineer’s Perspective
Engineering Pain Point
The main replacement risk with the IS215WETAH1C is treating it as a generic GE control PCB. Wind-turbine Topbox hardware is tied to the turbine’s control architecture, cabinet wiring, communications, firmware, and configuration. A board can have the correct physical family designation but still create commissioning problems if the revision, configuration, or connected Topbox hardware does not match the original installation.
Typical Applications
- GE wind turbine Topbox systems — WETA H1C is specifically identified as a Topbox A module.
- GE Wind Energy electrical control cabinets — trade records identify 109W6503P001 as a WETA circuit control board used in turbine equipment.
- Mark VIe-related wind turbine control systems — available equipment records associate the WETA hardware with GE’s turbine control architecture.
- Wind turbine maintenance and retrofit work — appropriate where the installed cabinet documentation specifically calls for IS215WETAH1C / 109W6503P001.
Technical Pitfalls to Avoid
- Do not confuse WETA, WETB, and WETC.
GE lists these as separate Wind Energy Topbox module families. They are not interchangeable simply because they share the same IS-series construction. - Verify 109W6503P001.
The GE reference number is a useful cross-check against the board marking. Multiple records independently associate this number with . - Do not assume generic 24 VDC operation.
Several secondary listings publish 24/28 VDC figures, but those records do not provide enough authoritative revision-specific documentation to make that a guaranteed standalone rating. Verify the turbine cabinet drawings and board documentation. - Check the complete cabinet architecture.
Before replacement, record connected Topbox modules, communication connections, board revision, cabinet wiring, and controller configuration. - Do not use a different H1 revision without compatibility verification.
IS215WETAH1A and are both WETA H1 assemblies, but revision compatibility should be established from the turbine’s approved hardware list rather than assumed. - Treat firmware/configuration as part of the replacement.
A physically correct board may still require configuration or commissioning checks before the turbine control system recognizes it correctly.
Related Products
- GE IS215WETAH1A — WETA Topbox A H1A assembly; same general WETA family but an earlier hardware revision. Compatibility with H1C must be verified.
- GE IS200WETAH1CA — WETA H1C-family board designation appearing in GE parts listings; verify the complete assembly number before treating it as an equivalent.
- GE IS200WETB1HABA — WETB Topbox B module; different Topbox function from WETA.
- GE IS200WETB1HAPR1 — WETB Topbox B variant; not a direct WETA replacement.
- GE IS200WETCH1AAA — WETC Topbox C board; separate Topbox hardware family.
- GE IS200WETCH1APR2 — WETC Topbox C variant; verify cabinet-specific application before substitution.
- GE IS215WEPAH2A — WEPA H2A board, another GE wind-energy control assembly but serving a different hardware function.
- GE IS215WEPAH2B — WEPA H2B populated backplane/processor-related module; not a WETA substitute.
Procurement and Replacement Note
For procurement, the safest identification is:
GE — WETA H1C — Topbox A Module — GE P/N 109W6503P001.
Do not approve a substitute based only on the IS215 prefix or the WETA family name. Match the complete board number, GE reference number, hardware revision, turbine model, Topbox configuration, connected WETB/WETC hardware, and control-system configuration.
The available evidence supports identifying this component as a GE Wind Energy WETA Topbox A module, but it does not justify publishing a complete set of voltage, temperature, I/O-channel, or protection ratings as if this were a conventional standalone PLC card. Those values should be taken from the installed turbine documentation or the board’s original GE documentation before engineering approval.
