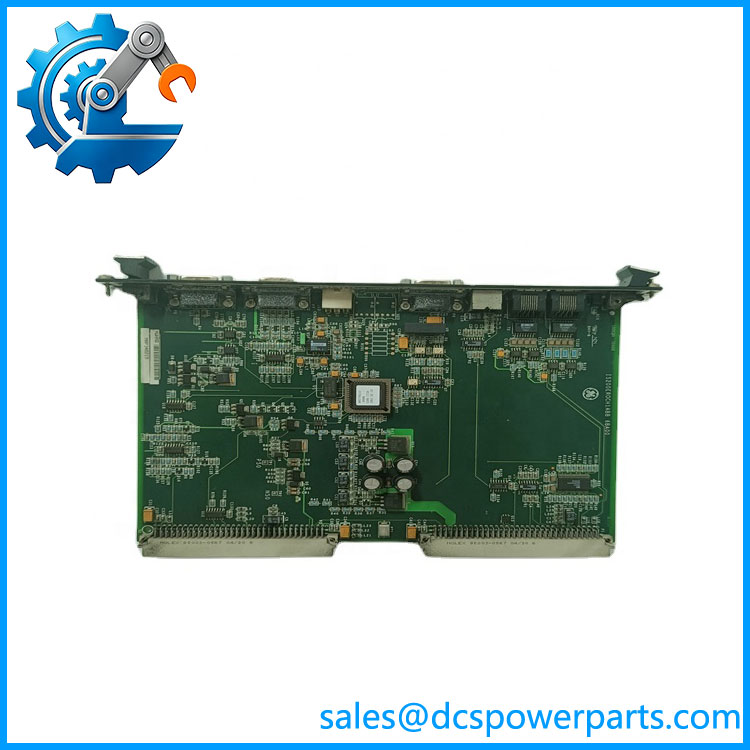

GE IS200EROCH1ABB Exciter Regulator Options Card
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | General Electric (GE) |
| Full Part Number | IS200EROCH1ABB |
| Base Board | IS200EROCH1A |
| Functional Acronym | EROC |
| Product Type | Exciter Regulator Options Card |
| System | GE EX2100 Excitation Control |
| Board Configuration | H1A |
| Rack Position | Single-slot regulator card |
| Backplane Connectors | 2 |
| High-Voltage Electrolytic Capacitors | 4 |
| Communication | ISBus interfaces |
| Service Interface | Keypad/tool connection |
| Ground Detection | Ground-detector oscillator and sensing functions in applicable simplex configurations |
| Associated Board | IS200ERGTH1A |
| Mounting | EX2100 regulator control rack |
GE’s documentation identifies the IS200EROCH1A as an Exciter Regulator Options Card, while technical references describe its role in regulator options, ground detection, keypad/tool connections, and communication within the regulator rack.
Product Introduction
The is an EROC Exciter Regulator Options Card used in the GE excitation-control platform. Unlike a conventional PLC input/output module, the EROC is part of the excitation regulator hardware and provides supporting functions around the regulator, including ground-detection circuitry, service/keypad connectivity, and communication between locations in the regulator rack.
The is particularly relevant when maintaining an installed system where the regulator options card has failed or a spare has been consumed. The exact board number should be matched against the original hardware because the EROC family contains multiple configurations, including the related IS200EROCH1A and IS200EROCH2A assemblies. The associated rack architecture also determines how the board is used.
IS200EROCH1ABB
Application Scenarios & Field Pitfalls — The Engineer’s Perspective
Engineering Pain Point
An EROC fault can appear to be a regulator, ground-detection, or communication problem because the card participates in several supporting functions within the regulator architecture. Replacing the board without checking the associated ground-detector circuit, backplane connections, and system configuration can result in the original fault remaining after the board exchange.
Typical Applications
- GE excitation systems — regulator option and interface functions.
- Generator ground-fault detection — provides ground-detector oscillator and sensing functions in applicable simplex configurations.
- Excitation regulator service and diagnostics — keypad and tool connections support maintenance activities.
- Simplex and redundant regulator architectures — EROC hardware is used according to the specific configuration.
Technical Pitfalls
1. Do not classify this as a generic PLC I/O module.
Several online listings incorrectly describe as a VersaMax analog-input module or Mark VIe Ethernet I/O controller. Those descriptions conflict with the established EROC identification and application.
2. Ground detection is a major part of its field role.
In a simplex regulator rack, the EROC can provide ground-detector oscillator output and sensing voltages. The associated IS200ERGTH1A provides an interface for compatible ground detectors.
3. Check the rack configuration.
The EROC is a single-slot card and is normally associated with a specific position in the regulator rack. Verify the original slot and backplane arrangement before replacement.
4. Do not assume EROC and EGDM are universally interchangeable.
Technical references describe equivalent behavior between EROC and EGDM in certain simplex applications. That does not mean every EROC/EGDM board can be substituted across all configurations. Application and rack architecture must be checked first.
5. Inspect the high-voltage capacitor area.
The IS200EROCH1A is documented with four high-voltage electrolytic capacitors. On used boards, inspect these components for swelling, leakage, discoloration, or other evidence of aging before installation.
6. Match the complete board designation.
For procurement, use rather than simply “EROC.” The base IS200EROCH1A family includes other hardware configurations, and suffix-level differences should be resolved against the original board and documentation.
7. Verify service interfaces before commissioning.
The board includes keypad/tool connectivity and ISBus-related interfaces. Inspect connectors and board-edge contacts carefully on refurbished inventory. A board can pass a basic power test while still having intermittent communication or service-interface faults.
Related Products
- — base EROC Exciter Regulator Options Card designation.
- GE IS200EROCH2A — related EROC configuration with a different board arrangement.
- GE IS200ERGTH1A — Exciter Regulator Ground Detector interface board associated with EROC applications.
- GE IS200ERDDH1A — Exciter Regulator Dynamics Discharge Board.
- GE IS200ERIOH1A — Exciter Regulator I/O board for simplex or redundant applications.
- GE IS200DSPXH1D — DSPX Digital Signal Processor board used in compatible control architectures.
- GE IS200EGDMH1A — Exciter Gate/Drive Monitor-related hardware used in the excitation system.
- GE IS200ERBPG1A — Exciter Regulator Backplane.
- GE IS200ERRBG1A — Regulator Redundant Backplane.
- GE IS200ERRRH1A — Exciter Regulator Redundant Relay Board.
Procurement Note
For a replacement , specify the complete part number and the original rack/application. For used or refurbished inventory, request clear photographs of the identification label, connector areas, PCB condition, and revision markings. If the fault involves generator field ground detection, inspect the associated ERGTH/ground-detector circuit and backplane at the same time rather than assuming the EROC card is the only failed component.
Most importantly, do not use the unsupported 8-channel analog-input, Ethernet/Modbus, or Mark VIe remote-I/O specifications appearing on some reseller pages. The defensible classification is GE EROC Exciter Regulator Options Card.
