Description
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE Fanuc |
| Model | IC660ELB921M |
| Product Family | Genius I/O |
| Product Type | PC Interface Module (PCIM) |
| Channel Count | 1 Genius bus channel |
| Host Bus | ISA-compatible / AT-style PC bus |
| Genius Network | Genius I/O serial bus |
| Compatible Daughterboard | IC660ELB912 |
| Power Supply | 5 VDC ±10% |
| Maximum Current | 400 mA |
| Baud Rates | 38.4 / 76.8 / 153.6 kbaud |
| 153.6 kbaud Modes | Standard and Extended |
| LEDs | Board/GENI OK and Communications OK |
| Installation | Single ISA/AT slot |
| Operating Temperature | 0 to 60°C reported for the PCIM family |
| Storage Temperature | -40 to +70°C |
| Humidity | 5–95%, non-condensing |
The GE Fanuc manual specifies the 5 VDC ±10%, 400 mA maximum supply requirement and identifies the board as a single-slot AT-style PC interface.
Product Overview
The GE Fanuc IC660ELB921M is a legacy Genius I/O PC Interface Module (PCIM) intended to connect an IBM-compatible host computer to the Genius serial I/O bus. The base IC660ELB921 is documented as a single-channel PCIM, while IC660ELB922 provides two independent Genius bus channels.
The IC660ELB921M is not a modern Ethernet communication module and should not be described as an Ethernet/IP or Modbus TCP interface. Some current reseller pages incorrectly assign Ethernet, RJ45, Ethernet/IP, and Modbus TCP capabilities to this part. Those claims conflict with the original PCIM documentation, which describes an ISA/AT host interface and Genius serial-bus connection.
The board works with the IC660ELB912 µGENI daughterboard. The daughterboard performs Genius-bus initialization, fault management, and I/O data handling for up to 30 bus devices, while the PCIM motherboard provides the host-computer interface, buffering, address decoding, reset sequencing, and watchdog functions.

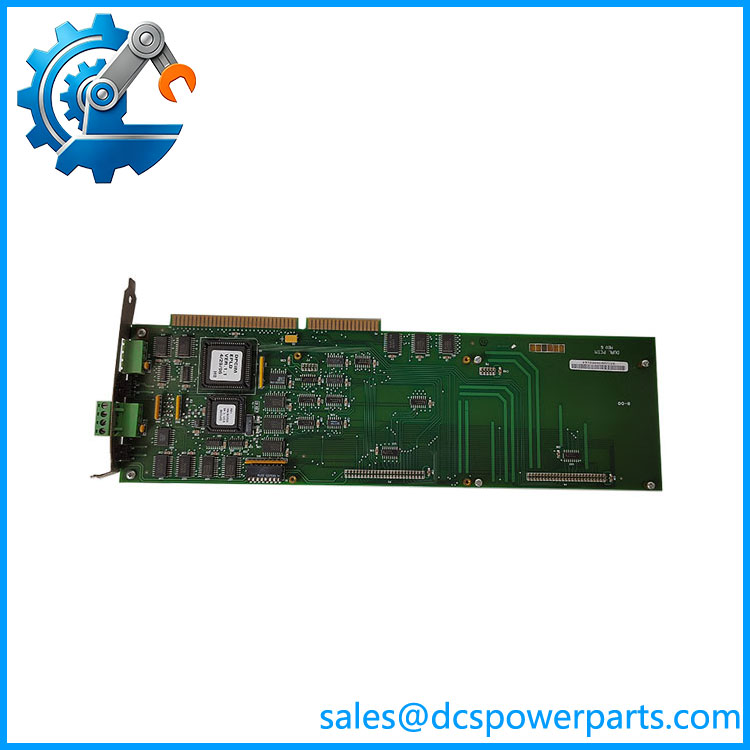

IC660ELB921M
Main Features & Field Considerations
Single Genius bus channel
The IC660ELB921 family provides one Genius I/O bus connection. GE Fanuc documentation identifies IC660ELB921 as the single-channel PCIM and IC660ELB922 as the dual-channel version.
Legacy PC architecture
The board is designed for an ISA-compatible / AT-style host slot, which is a critical compatibility issue. It cannot simply be installed into a modern PCI, PCIe, or VME computer and expected to function.
µGENI daughterboard architecture
The PCIM motherboard interfaces the host computer with an open-architecture Genius daughterboard. The µGENI performs the Genius network management and maintains current I/O images for connected devices.
Genius diagnostic capability
The PCIM architecture includes board-status and communications indicators, while the Genius network supports diagnostics for connected I/O devices. GE Fanuc documentation also describes Genius systems as supporting diagnostic information beyond basic I/O data.
Baud-rate compatibility
The documented Genius communication rates include 38.4, 76.8, 153.6 standard, and 153.6 extended kbaud. The actual rate must match the existing Genius network configuration.
Replacement Checklist
Before replacing an IC660ELB921M, verify:
- Exact catalog number and suffix: IC660ELB921M
- ISA/AT-compatible host computer
- IC660ELB912 daughterboard
- Genius bus serial address
- Genius baud rate
- Connected Genius I/O blocks
- Host software/driver version
- PC memory and I/O address configuration
- Genius bus termination and wiring
- Existing configuration files
- Board revision
- Application-specific PC interface software
Important Specification Caution
There is misleading information online for IC660ELB921M. In particular, listings describing it as an Ethernet communication module with 10/100 Mbps RJ45, Ethernet/IP, Modbus TCP, and DH+ should not be used as the technical basis for procurement.
The documented IC660ELB921 architecture is a single-channel Genius I/O PCIM using an ISA/AT-style host interface, with a Genius serial-bus connection and an optional/compatible µGENI daughterboard.
Procurement Description
GE Fanuc — Single-Channel Genius I/O PC Interface Module (PCIM), ISA/AT Host Interface, Compatible with IC660ELB912 µGENI Daughterboard
For a legacy Genius installation, the host computer architecture, daughterboard configuration, Genius baud rate, software, and exact board revision should be verified before accepting a substitute.
