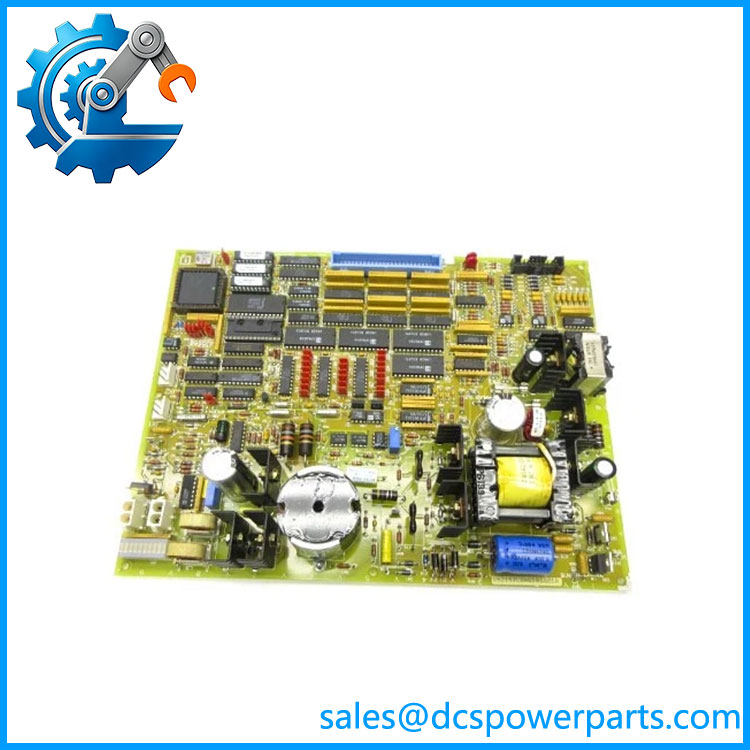

GE DS200TCEAG1BTF | Mark V TCEA Emergency Overspeed Board
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | General Electric |
| Series | Mark V / Speedtronic |
| Model | DS200TCEAG1BTF |
| Functional Acronym | TCEA |
| Product Type | Emergency Overspeed Board |
| Primary Application | Turbine protection and control |
| Installation | <P> core |
| Processor | Intel 80196 |
| Firmware Storage | Multiple EPROM sockets |
| Functional Revision 1 | B |
| Functional Revision 2 | T |
| Artwork Revision | F |
| PCB Coating | Normal coating |
| Fuses | FU1, FU2, FU3 |
| Configuration Jumpers | Approximately 30 |
| J7 | PD-core TCEA board power connection |
| JK | TCEB P1-core signal connection |
| JL | TCTG trip-signal connection |
| JW | TCEB flame-detection signal connection |
| JX1 / JX2 | Daisy-chained IONET connections to TCQC boards |
| Firmware | Verify against installed Mark V system |
| Supply Voltage | Verify from cabinet drawings and installed system documentation |
| Operating Temperature | Verify from GE documentation for the applicable cabinet revision |
| Mounting | Mark V control-core installation |
The exact DS200TCEAG1BTF configuration is documented as a TCEA Emergency Overspeed Board with B and T functional revisions and F artwork revision. Its hardware includes an Intel 80196 processor, three fuses, approximately 30 configurable jumpers, EPROM sockets, and dedicated connections to TCEB, TCTG, and TCQC-related circuitry.
Some secondary listings publish specific power-input and temperature figures, but those values are not consistent across sources. They should not be used as cabinet-level commissioning limits without confirmation from the applicable Mark V documentation, wiring drawings, and board records.
DS200TCEAG1BTF
Product Introduction
The GE DS200TCEAG1BTF is a TCEA Emergency Overspeed Board used in the GE Mark V Speedtronic turbine control system. Unlike a conventional analog or digital I/O card, the TCEA participates in dedicated turbine protection and control circuitry. Documented functions include turbine overspeed, flame detection, and automatic synchronization circuits. The board is installed in the <P> core and interfaces with other Mark V boards through dedicated signal and protection connections.
For maintenance work, the complete suffix matters. DS200TCEAG1BTF is not simply a generic TCEA board designation; the B/T functional revisions and F artwork revision form part of the identification. The associated connector population and jumper configuration also need to correspond to the installed Mark V cabinet. A replacement should therefore be checked against the removed board before energization.
Engineering Pain Point
Overspeed-board faults can be difficult to isolate because the TCEA is connected to several protection-related circuits. A problem reported as a turbine trip, flame-detection fault, synchronization issue, or board communication problem does not automatically establish that the TCEA itself has failed. Check the associated TCEB, TCTG, TCQC, power connection, fuses, jumper settings, and field wiring before condemning the board.
Typical Applications
- Turbine overspeed protection: Supports the Mark V TCEA protection circuitry associated with turbine speed-related functions.
- Flame detection: Interfaces with the applicable TCEB flame-detection signal path.
- Automatic synchronization: Provides circuitry associated with Mark V automatic synchronization functions.
- Legacy turbine control maintenance: Used when maintaining existing GE Mark V turbine control cabinets where the original TCEA configuration must be preserved.
Technical Pitfalls to Avoid
- Do not confuse TCEA with TCQA. TCQA is an analog I/O board, while TCEA is identified as the Emergency Overspeed Board. Their functions within Mark V are fundamentally different.
- Match the complete suffix. Confirm DS200TCEAG1BTF, including the B/T functional revisions and F artwork revision. Do not rely only on the DS200TCEA prefix.
- Record jumper positions before replacement. The board contains approximately 30 manually configurable jumpers. Their positions can be part of the installed system configuration.
- Check all board connections. J7, JK, JL, JW, JX1, and JX2 serve different functions. Photographing and labeling the existing connections before removal is a practical maintenance step.
- Replace fuses with the correct type and rating. FU1, FU2, and FU3 protect board circuitry. A fuse with an incorrect rating can create a secondary hardware failure rather than correcting the original problem.
- Do not use generic voltage specifications from reseller listings. Public sources contain contradictory electrical and environmental figures for this exact board. Use the Mark V cabinet documentation and physical board identification for the final verification.
Related Products
- DS200TCEAG1B — Base TCEA Emergency Overspeed Board designation with a different revision configuration; verify the complete board revision before considering substitution.
- DS200TCQAG1BHF — TCQA analog I/O board; handles analog signal processing and is not an equivalent replacement for TCEA.
- DS200TCEB — Associated TCEB circuitry, including signal paths referenced by the TCEA JK and JW connections.
- DS200TCTG — Associated Mark V terminal/interface circuitry referenced by the TCEA trip-signal connection.
- DS200TCQC — Related Mark V I/O board connected through the TCEA JX1/JX2 IONET path.
- DS200SDCC — Mark V drive/control board family frequently encountered elsewhere in the same control architecture; it is not a functional substitute for TCEA.
- DS200TCCB — Mark V common analog I/O board family; application and signal-processing role differ from TCEA.
Procurement and Replacement Note
For , procurement should specify the complete part number, functional revisions B/T, artwork revision F, and the required board configuration. Before installation, compare the processor/EPROM arrangement, fuse locations, jumper positions, connector labels, and physical board markings with the existing unit.
The most important compatibility check is the installed Mark V <P> core architecture and the associated TCEB/TCTG/TCQC wiring. Do not approve a replacement merely because a supplier identifies another board as “TCEA.” The complete revision and connection configuration need to agree with the turbine’s existing protection scheme.
