GE DS200IMCPG1CCB | IGBT Power Supply Board | Mark V Drive Replacement

Description

Key Technical Specifications

GE documentation available through secondary technical records identifies DS200IMCPG1CCB as an IMCP power-supply interface board and places it within the Mark V Speedtronic family. The board has three documented revision levels in its family history and is listed as backward-compatible with the first two revisions.

Some secondary listings publish 100–240 VAC input, multiple DC output rails, 28 VDC supply values, and specific power ratings, but these sources are internally inconsistent and do not establish those figures as universal ratings for the exact DS200IMCPG1CCB. Those values should therefore be verified against the installed drive documentation before being used for engineering or replacement specifications.

Product Introduction

The GE DS200IMCPG1CCB is an IMCP IGBT power-supply interface board used within GE Mark V drive-control equipment. It belongs to the DS200 family and is associated with drive-control power circuitry rather than conventional PLC I/O. The board interfaces with the drive-control architecture and is documented as connecting by cable to the 1PL input on the SDCC drive-control board.

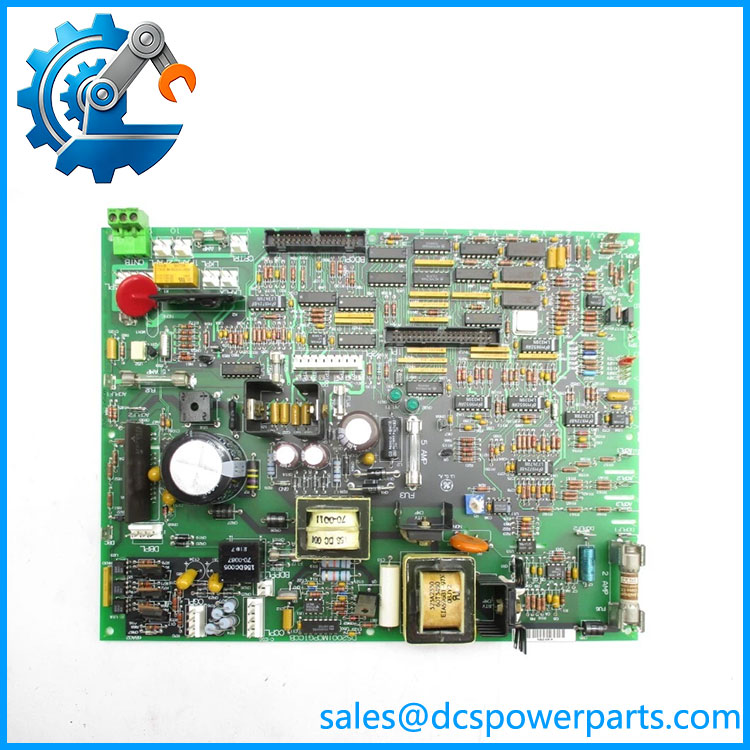

The PCB contains a dense collection of power and protection components, including fuses, metal-oxide varistors, transformers, heat sinks, transistors, capacitors, resistor networks, and two LED indicators. The exact G1CCB suffix matters because the IMCP family contains several related revisions and part numbers that should not be treated as automatic substitutes.

DS200IMCPG1CCB

Application Scenarios & Field Pitfalls — The Engineer’s Perspective

Engineering Pain Point

An IMCP failure can appear as a broader drive-control problem because the board sits in the power-supply interface path. Loss of a required supply can affect the SDCC and associated drive electronics, creating multiple alarms or an apparent controller failure. Before replacing the IMCP, check the upstream supply, fuses, MOV condition, connector integrity, and the downstream SDCC power path.

Typical Applications

• GE Mark V drive control: Used within compatible Speedtronic drive-control architectures.
• IGBT drive power interface: Provides the power-supply interface associated with Mark V IGBT drive hardware.
• SDCC interface: The documented board connection includes the 1PL input connector on the SDCC drive-control board.
• Legacy turbine-drive maintenance: Applicable to compatible steam, gas, and wind turbine drive-control equipment within the Mark V family.

Technical Pitfalls to Avoid

1. Do not classify the IMCP as a generic power-supply module.
   Its function is tied to the GE Mark V drive-control architecture and associated IGBT circuitry.
2. Check the SDCC interface before replacing the board.
   The 1PL connection is a useful diagnostic reference. A problem at the cable, connector, or SDCC can produce symptoms similar to an IMCP failure.
3. Inspect the fuses and MOVs carefully.
   A blown fuse may be a symptom of a downstream short or failed power component rather than the original fault. Replacing the fuse without finding the cause can result in another immediate failure.
4. Record all connector positions before removal.
   The board uses multiple vertical-pin and stab-on connections plus a three-position terminal strip. Incorrect reconnection can create secondary faults.
5. Match the complete revision.
   DS200IMCPG1CCB, DS200IMCPG1CBA, DS200IMCPG1CDB, and other IMCP variants are separately identified in GE Mark V parts records. Similar naming does not establish electrical equivalence.
6. Do not use generic reseller power ratings for commissioning.
   Published secondary specifications conflict substantially. Confirm input and output requirements against the actual Mark V drive type, cabinet drawings, and applicable GE documentation.

Related Products

• DS200IMCPG1C — Broader IMCP power-supply interface designation. The complete suffix must be checked before substitution.
• DS200IMCPG1CBA — Related IMCP IGBT power-supply board with a different complete suffix; verify revision and host-drive compatibility.
• DS200IMCPG1CDB — Related IMCP power-supply interface variant; not automatically interchangeable with the CCB version.
• DS200IMCPG1CEB — Related IMCP IGBT power-supply card; verify exact hardware configuration before substitution.
• DS200IMCPG1CFB — Related IMCP power-supply interface variant within the same family.
• DS200IMCPG1CGC — Another IMCP power-supply board designation; complete suffix and host equipment must be matched.
• DS200IIBDG1A-family boards — IGBT gate-driver boards used in the broader Mark V drive architecture; their function is different from the IMCP power-supply interface.
• SDCC — Mark V drive-control board associated with the documented IMCP 1PL interface.

Procurement and Replacement Note

For a GE DS200IMCPG1CCB replacement, specify the complete part number and capture the original board’s revision markings, connector arrangement, fuse positions, and installed drive location before removal.

The most important compatibility check is the host drive architecture. Confirm the SDCC board, 1PL cable, upstream supply arrangement, and downstream IGBT power circuitry. Do not assume that another DS200IMCPG1C* board is a direct replacement simply because the functional acronym is the same.

For troubleshooting, check the supply path in sequence: incoming power → IMCP protection components → board output/interface → 1PL cable → SDCC → downstream drive circuitry. If a fuse has opened, identify the downstream cause before installing another fuse.
