Emerson EPRO PR6423/000-101 | 8 mm Eddy Current Probe | Shaft Vibration Monitoring

Description

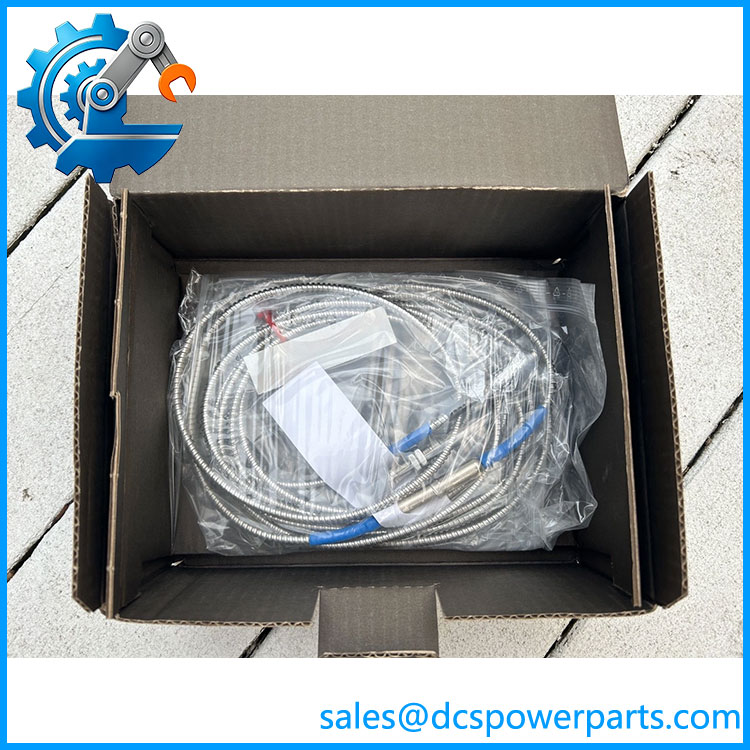

Emerson EPRO PR6423/000-101

Key Technical Specifications

Emerson’s current PR6423 specification sheet confirms the 2 mm linear range, 0.5 mm initial air gap, 8 V/mm scale factor, 25 mm minimum shaft diameter, and IP66 construction. The current installation guide gives the PR6423 nominal operating range as -35°C to +180°C, with short-term exposure up to +200°C.

Product Introduction

The Emerson EPRO PR6423/000-101 is a non-contact eddy-current probe used in machinery protection and condition-monitoring systems. It measures the relative movement between the probe tip and a conductive ferromagnetic shaft target, allowing the monitoring system to detect shaft vibration, radial or axial displacement, eccentricity, and position. The 8 mm probe format is commonly used on critical turbomachinery where direct shaft measurement is preferred over casing vibration measurement.

The probe itself is a sensor, not a complete monitoring channel. It requires a compatible EPRO signal converter to provide the excitation and convert the probe’s measurement into the appropriate monitoring-system signal. Emerson documentation identifies converter options including CON011, CON021, and CON041 for the family, with the correct selection depending on the installation and connector arrangement.

PR6423/000-101

Engineering Pain Point

The most frequent replacement mistake is treating as a generic 8 mm proximity probe. The probe’s scale factor, air-gap requirement, mechanical thread, cable termination, target material, converter, and monitoring-channel configuration all have to agree. A probe that physically screws into the bracket can still produce incorrect vibration or position readings if its converter or calibration characteristics do not match the installed channel.

Typical Applications

• Steam and gas turbines — radial shaft vibration and position monitoring.
• Hydro turbines — shaft displacement and eccentricity measurement.
• Compressors and gearboxes — non-contact shaft-motion measurement.
• Large pumps and fans — machinery vibration, position, and speed-related monitoring.

Technical Pitfalls to Avoid

1. Set the probe gap correctly.
   The specified initial air gap is 0.5 mm / 20 mils. Do not establish the installation gap by visually estimating probe-to-shaft clearance. Gap voltage and the applicable converter/channel calibration should be checked during commissioning.
2. Verify the target shaft material.
   The published sensitivity is referenced to ferromagnetic steel, with 42CrMo4/AISI 4140 identified as the standard target material. Different target metallurgy or surface conditions can affect the measurement response.
3. Match the converter.
   The is not normally connected directly to a PLC analog input. The appropriate EPRO converter provides the required sensor interface. Emerson lists CON011, CON021, and CON041-family connections for the sensor family.
4. Do not assume every /000-101 listing has the same cable configuration.
   The specification defines cable length and termination as configuration-dependent. One current technical listing identifies a 4.0 m cable with open cable end, while other variants can use different cable lengths or connector arrangements. Match the complete installed configuration rather than relying only on the base probe number.
5. Keep the measurement chain intact.
   Probe → extension cable, where applicable → converter → machinery-monitoring input should be checked as one measurement chain. A fault that appears to be a failed probe may originate in the extension connection, converter, cable shielding, or monitor channel.
6. Check mechanical clearance.
   The documentation specifies a minimum shaft diameter of 25 mm and defines installation geometry around the 8 mm probe. Bracket position, shaft runout, surrounding ferrous material, and probe-tip clearance should be checked before commissioning.

Related Products

• EPRO PR6422 — smaller PR642x-family eddy-current sensor; application and mechanical characteristics differ from the .
• EPRO PR6424 — related eddy-current sensor for machinery displacement measurement; temperature and mechanical specifications differ.
• EPRO PR6425 — high-temperature version intended for substantially higher sensor-temperature applications; do not substitute without checking the required temperature range.
• EPRO CON011 — compatible converter connection option for the sensor family.
• EPRO CON021 — alternative converter/interface arrangement for -family sensors.
• EPRO CON031 — signal converter supporting PR6422//PR6424/PR6425/PR6426 sensor families; verify the exact monitoring architecture before replacement.
• EPRO CON041 — screw-terminal converter arrangement documented for applications.
• Emerson AMS 6500 — machinery monitoring platform commonly associated with EPRO eddy-current measurement systems; verify the actual installed monitor and input module before procurement.

Procurement Note

For an exact replacement, specify EPRO/Emerson /000-101 together with the cable length, cable termination, mechanical thread, converter model, and hazardous-area certification requirements from the existing installation.

The critical point is that /000-101 is the sensor element, not the complete proximity measurement channel. Emerson’s current documentation confirms the as an 8 mm eddy-current sensor with a 2 mm linear measurement range and 8 V/mm scale factor.

If the existing probe is being replaced on a turbine or compressor protection system, match the complete probe/converter/channel configuration, not just the 8 mm probe diameter.
