Description
Product Overview

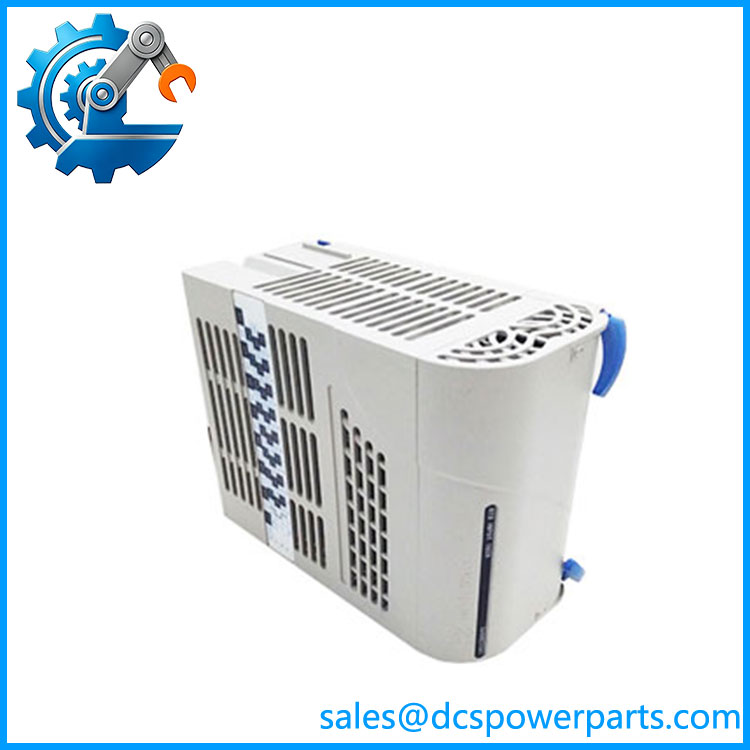

The Emerson 5X00622G01 is a 16-channel RTD Input Module designed for Emerson Ovation Distributed Control System installations requiring accurate temperature acquisition from resistance temperature detector sensors. The module receives RTD signals from field instruments, performs signal conditioning and conversion, and transfers calculated temperature values to the Ovation controller for monitoring, alarming, and process regulation. The Emerson 5X00622G01 is commonly applied in power generation and industrial process environments where temperature feedback from rotating equipment, boilers, turbines, generators, and auxiliary systems is required.
Within the Ovation I/O architecture, the 5X00622G01 provides multi-channel temperature measurement capability while supporting several RTD sensor configurations, including Pt100, Pt500, Ni120, and Cu100 devices. The module can process up to 16 temperature inputs and provides functions such as sensor linearization, cold junction compensation where applicable, alarm handling, and diagnostic monitoring. This allows engineers to integrate temperature measurements directly into control strategies without adding external signal conversion equipment.
The Emerson 5X00622G01 is frequently maintained as a spare module for existing Ovation control systems where temperature measurement continuity is required. Replacement projects should confirm the installed I/O carrier, terminal block arrangement, sensor wiring method, controller database configuration, and Ovation software compatibility. To be completely transparent, an RTD module replacement is not only a hardware exchange; incorrect sensor type selection, wiring configuration, or scaling parameters can create inaccurate process values even when the module powers up normally.
Product Introduction (Non-Templated)
A temperature measurement fault can hide developing equipment problems long before mechanical damage becomes visible. The Emerson 5X00622G01 provides Ovation systems with direct RTD signal acquisition for continuous temperature monitoring.
Supporting 16 RTD channels, multiple sensor types, and precision temperature conversion, this module is commonly used for turbine monitoring, bearing temperature measurement, generator protection, and Ovation DCS system maintenance projects.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | 5X00622G01 |
| Manufacturer | Emerson |
| System Platform | Ovation Distributed Control System |
| Product Type | RTD Input Module |
| Input Channels | 16 Channels |
| Input Type | Resistance Temperature Detector (RTD) |
| Supported RTD Types | Pt100, Pt500, Ni120, Cu100 |
| Wiring Support | 2-wire / 3-wire / 4-wire RTD configurations |
| Measurement Range | Approx. -200°C to +800°C (sensor dependent) |
| Accuracy | ±0.1% of full scale |
| Resolution | 0.01°C |
| Linearization | 2-point or 3-point configuration |
| Alarm Functions | High, low, delta alarms |
| Diagnostics | Sensor fault detection and module health monitoring |
| Communication | Ovation system backplane |
| Power Supply | 24 VDC system power |
| Installation | Ovation I/O rack assembly |
| Application | Temperature monitoring and process control |
| Condition | New Surplus, Factory Sealed |
Related Products
- Emerson 5X00500G01 — Ovation 32-channel digital output module used for actuator and relay control. It handles output commands, while the 5X00622G01 handles temperature measurement inputs.
- Emerson 5X00499G01 — Ovation 32-channel digital input module for discrete status monitoring. Used for switches, alarms, and equipment feedback signals rather than analog temperature acquisition.
- Emerson 5X00109G01 — Ovation analog input module for continuous voltage or current measurements such as pressure transmitters, flow transmitters, and process analyzers.
- Emerson 1C31224G01 — Legacy Ovation analog input module handling current input signals. Suitable for older cabinets requiring 4–20 mA measurement channels.
- Emerson 1C31116G04 — Legacy Ovation analog input assembly used in earlier system generations. Replacement suitability depends on cabinet design and I/O revision.
- Emerson 5X00481G04 — Ovation OCR1100 controller CPU module responsible for executing application logic and processing I/O data.
- Emerson 5X00226G04 — Ovation OCR1100 controller interface module supporting controller-level communication functions.
- Emerson 5X00497G01 — Ovation I/O base assembly used to mount and connect compatible Ovation I/O modules.
5X00622G01
Frequently Asked Questions (FAQ)
1. Is the Emerson 5X00622G01 compatible with my existing Ovation DCS system?
The module is designed for Emerson Ovation I/O systems, but compatibility depends on the installed cabinet configuration.
Verify:
- Ovation controller generation
- I/O rack type
- Terminal block arrangement
- Sensor wiring method
- Engineering database configuration
A matching model number is required, but the complete I/O assembly should also be checked before installation.
2. Can I hot-swap this?
Hot replacement depends on the specific Ovation I/O architecture and operating procedures.
Typical maintenance steps:
- Confirm the correct I/O slot
- Save current configuration information
- Follow approved maintenance procedures
- Install replacement RTD module
- Verify temperature values and diagnostics
Online replacement should only be performed when supported by the installed system design.
3. Does the 5X00622G01 support firmware v3.1?
The module does not operate as an independent programmable controller.
Compatibility depends on:
- Ovation software version
- Controller firmware
- I/O configuration database
- Module hardware revision
The engineering database should be reviewed before replacement.
4. Will I lose my temperature configuration when replacing the 5X00622G01?
The RTD module itself does not contain the complete control application.
After replacement, verify:
- RTD channel assignments
- Sensor type configuration
- Engineering units
- Alarm settings
- Controller communication
The primary configuration remains within the Ovation controller system.
5. How can I verify a New Surplus Emerson 5X00622G01 is authentic?
Recommended inspection points:
- Confirm Emerson/Ovation identification markings
- Verify model number and revision
- Inspect connectors and terminal interfaces
- Review available inspection or test records
Unused inventory condition should still be verified before installation into a critical control system.
6. Can the 5X00622G01 support an Ovation DCS upgrade project?
Yes, when the existing system uses compatible Ovation I/O hardware.
Typical applications include:
- Replacing failed RTD measurement channels
- Restoring turbine temperature monitoring
- Maintaining generator protection inputs
- Supporting long-service Ovation installations
The sensor wiring and controller database should be reviewed as part of the upgrade plan.
7. What should engineers check before commissioning this RTD module?
Key verification points:
- Confirm RTD sensor type
- Check 2-wire/3-wire/4-wire configuration
- Verify channel scaling
- Confirm alarm limits
- Check temperature readings against field instruments
- Review module diagnostics
These checks help ensure accurate temperature data reaches the control system.
