Description
Product Overview

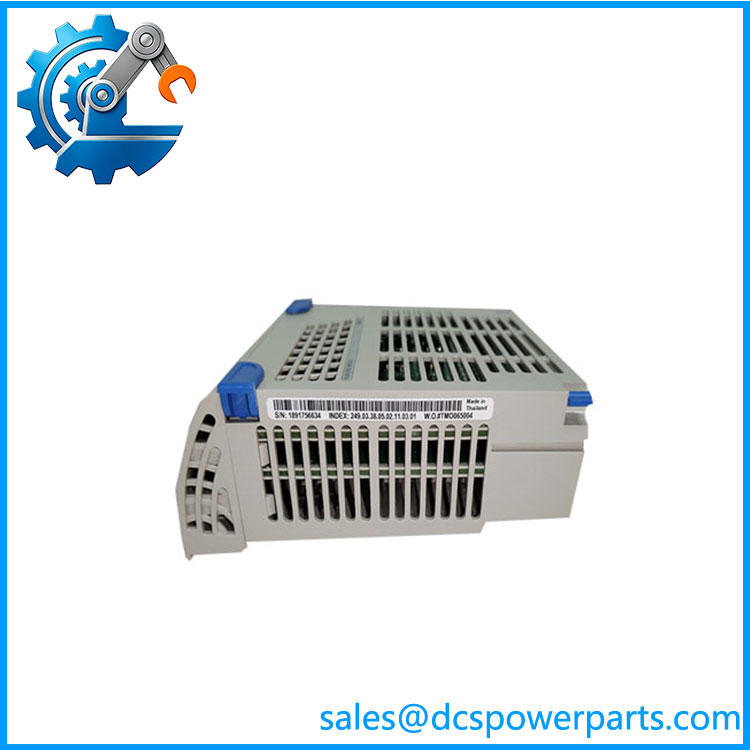

The Emerson Ovation 5X00226G03 is an I/O interface controller electronics module used within the Emerson Ovation distributed control system. Its function is not to serve as a conventional field analog-input or digital-output card; instead, it provides the controller-side interface required for communication and data exchange between the Ovation control processor and the associated I/O architecture. Emerson’s factory documentation explicitly identifies the 5X00226G03 as an Ovation I/O Interface Controller, Electronics Module.
The Emerson 5X00226G03 is also described in Emerson’s Ovation spare-parts documentation as a controller I/O interface assembly supporting block transfer and external register protocol. That description is more useful for system engineers than generic reseller descriptions calling the unit an “output module.” The distinction matters because replacing this module involves the controller/I/O communication architecture rather than simply matching field signal channels.
The Ovation 5X00226G03 is therefore best approached as a system-specific interface component. Public secondary listings sometimes publish unsupported specifications such as “32 analog inputs and 32 digital I/O channels,” but these figures should not be treated as confirmed specifications for the electronics module. For procurement and engineering replacement, the complete part number, hardware revision, associated Ovation controller, I/O subsystem, and software configuration should be checked.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson |
| System | Ovation DCS |
| Part Number | 5X00226G03 |
| Product Type | I/O Interface Controller, Electronics Module |
| System Role | Controller-to-I/O interface |
| I/O Function | I/O communication/interface rather than direct field I/O |
| Communication Function | Block transfer and external register protocol |
| Controller Interface | Ovation system dependent |
| Field Signal Interface | Through associated I/O subsystem |
| Firmware | Ovation-system dependent |
| Configuration | Ovation controller/I/O configuration dependent |
| Mounting | Ovation system architecture dependent |
| Hardware Revision | Verify before replacement |
| Operating Temperature | Verify exact hardware documentation |
| Power Requirements | Verify exact system configuration |
The block-transfer and external-register protocol identification comes directly from Emerson’s Ovation spare-parts documentation.
Specification Caution
I would not use secondary listings claiming 180–265 VAC input, 24 VDC/25 A output, 600 W, IP65, or 32 analog inputs/32 digital I/O channels as engineering specifications for 5X00226G03. Those descriptions conflict with Emerson’s official identification of the unit as an I/O interface controller electronics module.
Main Features and Advantages
Controller-to-I/O Interface
The primary purpose of 5X00226G03 is to provide the electronics interface between the Ovation controller architecture and the I/O subsystem. It therefore occupies a different position in the DCS architecture from field I/O cards.
Block Transfer Support
Emerson’s official parts documentation specifically associates this module with block transfer functionality. This is important when dealing with an existing Ovation system because the data-exchange mechanism is part of the system architecture rather than a generic communications function.
External Register Protocol
The same Emerson documentation identifies external register protocol as part of the module’s functional description. This provides a much stronger basis for identifying the module than generic descriptions found on secondary industrial-parts websites.
Ovation DCS Integration
The module is designed specifically for the Ovation platform. Its replacement should therefore be evaluated in terms of the entire controller/I/O configuration rather than by electrical characteristics alone.
Lifecycle Spare
Emerson continues to list 5X00226G03 within its Ovation lifecycle/spare-parts resources, alongside other Ovation controller and I/O assemblies.
5X00226G03
Application Scenarios
- Emerson Ovation DCS
- Power-generation control systems
- Controller-to-I/O communication
- Ovation I/O subsystem maintenance
- Legacy Ovation controller replacement
- Plant control-system spare inventory
- I/O interface troubleshooting
- DCS lifecycle maintenance
Engineer’s Guide: Field Pitfalls
WARNING 1 — Do not classify it as a conventional output module
Some reseller pages call 5X00226G03 an output module or claim it has direct analog/digital channels.
Emerson’s own documentation is much more specific: I/O Interface Controller, Electronics Module.
WARNING 2 — Do not confuse interface capacity with field I/O channels
The module interfaces with the I/O architecture. That does not mean the module itself provides a fixed number of analog or digital field channels.
WARNING 3 — Check the complete G03 suffix
Do not substitute another 5X00226 variant without confirming its exact function and hardware revision. The suffix can identify a different assembly configuration.
WARNING 4 — Software and configuration matter
A replacement should be checked against:
- Ovation system version
- Controller type
- Controller firmware
- I/O subsystem architecture
- I/O database
- Block-transfer configuration
- External-register configuration
- Hardware revision
WARNING 5 — Power-up is not sufficient acceptance testing
An interface module can power up and still fail to exchange valid I/O data. A proper replacement test should include controller communication and actual I/O data transfer.
Frequently Asked Questions
What is Emerson 5X00226G03?
It is an Emerson Ovation I/O Interface Controller, Electronics Module.
Is 5X00226G03 an analog input module?
No. Emerson identifies it as an I/O interface controller, not a conventional analog input card.
What does the module do?
It provides the controller-side interface for the Ovation I/O architecture and is documented as supporting block transfer and external register protocol.
Is it part of the Emerson Ovation DCS?
Yes. Emerson lists 5X00226G03 among its Ovation parts and provides a dedicated factory-certified replacement document for the part.
Can it be replaced with another Ovation I/O module?
Not automatically. An I/O interface controller and a field I/O module perform different functions. The replacement must match the installed Ovation controller/I/O architecture.
What should be tested on a used or refurbished unit?
I recommend verifying:
- Exact 5X00226G03 identification.
- Hardware revision.
- PCB and connector condition.
- Controller communication.
- I/O interface initialization.
- Block-transfer operation.
- External-register communication.
- Controller-to-I/O data exchange.
- Diagnostic/alarm status.
- Extended operation under representative system conditions.
Bottom line: Emerson Ovation 5X00226G03 is an I/O Interface Controller electronics module, not a conventional field output card. Emerson’s own documentation provides the clearest identification and specifically associates the assembly with block transfer and external register protocol. For procurement, those system-level functions are more important than unsupported channel-count or power specifications found in secondary listings.
