Description
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 5X00106G02 |
| Manufacturer | Emerson Process Management / Westinghouse Ovation |
| System | Ovation DCS |
| Product Type | HART High-Performance Analog Input Module |
| Catalog Description | Analog Input, Fast HART, 16 Channel |
| Input Signal | 4–20 mA |
| Channels | 16-channel catalog configuration |
| Communication | HART |
| Mounting | Ovation rack |
| Personality Module | 5X00109G01 / 5X00109G02 depending on configuration |
| Power Architecture | Main power plus field/local power according to Ovation configuration |
| Typical Application | Process transmitters and HART-enabled analog instrumentation |
The strongest available catalog references identify 5X00106G02 as an Ovation Analog Input, Fast HART, 16-channel module.
There is an important documentation issue worth flagging. Older Ovation maintenance documentation describes the 5X00106G02 electronics module as an 8-channel HART high-performance analog input module, used with the 5X00109G02 personality module. Other Ovation planning and catalog references identify the same 5X00106G02 part number under the 16-channel HART AI family.
That discrepancy should not be ignored during procurement. The exact rack architecture, personality module, wiring arrangement, and Ovation software generation should be checked against the installed hardware. I would not use a generic “16-channel AI” description alone as proof of direct interchangeability.
Product Introduction
The Emerson 5X00106G02 is an Ovation DCS high-performance analog input electronics module designed for HART-enabled process instrumentation. Its catalog description identifies it as a fast HART analog input module, with the 5X00109G01/G02 personality hardware forming part of the overall input-channel implementation.
Its practical role is to bring transmitter measurements into the Ovation control system while retaining access to HART communication. This is useful for pressure, flow, temperature, level, and other process measurements where the 4–20 mA process variable and secondary HART device information both matter. For a replacement project, the installed personality module and existing Ovation I/O configuration are just as important as the 5X00106G02 electronics part number.

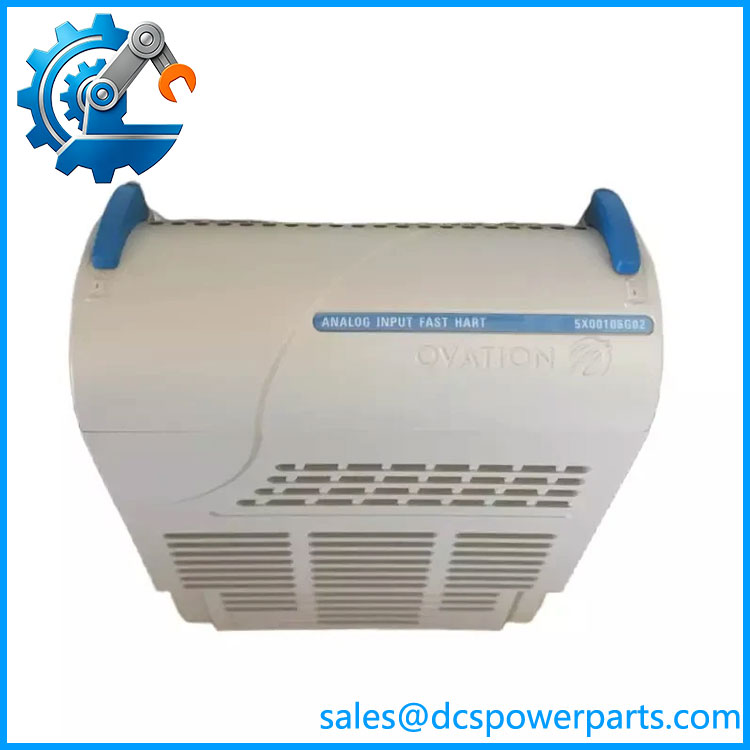

5X00106G02
Application Scenarios & Field Pitfalls
Engineering Pain Point
The main maintenance issue with the 5X00106G02 is identifying the complete electronics-plus-personality configuration rather than treating the electronics module as an isolated 16-channel card.
Older Ovation installations may use different personality modules and wiring arrangements. A replacement that has the correct base part number but the wrong associated personality hardware can create channel-count, field-power, or wiring problems.
Typical Applications
- Power-generation DCS: Pressure, flow, level, and temperature transmitters around boilers, turbines, and balance-of-plant systems.
- Water and wastewater: HART-enabled instrumentation used for flow, pressure, level, and chemical-process monitoring.
- Process industries: Continuous analog measurement where transmitter diagnostics and configuration data are useful.
- Ovation migration projects: Replacement of aging HART analog-input hardware while retaining existing process wiring and control-system architecture.
Emerson/Ovation planning documentation specifically places the 5X00106G02 in the HART high-performance analog-input family.
Technical Pitfalls to Avoid
1. Do not assume every listing’s channel count is correct.
Public sources conflict between an 8-channel electronics description and a 16-channel catalog description. The older Ovation maintenance documentation is particularly important because it identifies the 5X00106G02 electronics with the 5X00109G02 personality module as an 8-channel implementation.
2. Check the personality module before ordering.
The 5X00109G01/G02 hardware is part of the published HART high-performance AI configuration. Do not approve a replacement solely from the 5X00106G02 number without checking the installed personality module.
3. Verify the field-power arrangement.
Ovation documentation distinguishes locally powered and field-powered channel arrangements. This affects wiring and power calculations, so the existing cabinet drawings should be checked before changing the module/personality combination.
4. Do not confuse it with a digital-input module.
Several current web listings incorrectly classify 5X00106G02 as a 24 VDC digital input module. That conflicts with the Ovation catalog description and maintenance documentation identifying it as a HART analog-input module.
Related Products
- 5X00106G01 — Related HART high-performance analog-input electronics module; configuration and software generation should be checked before substitution.
- 5X00109G01 — Ovation HART AI personality module associated with the 5X00106G01/G02 electronics family.
- 5X00109G02 — HART AI personality module specifically documented with 5X00106G02; critical when verifying an existing installation.
- 5X00058G01 — Ovation HART analog input module for a different HART AI configuration; useful when comparing older Ovation I/O architectures.
- 5X00059G01 — Related HART analog-input module/personality configuration in the Ovation I/O family.
- 5X00070G02 — High-speed analog-input family for applications that do not use the same high-performance HART architecture.
- 5X00594G01 — Ovation 16-channel thermocouple input module; intended for thermocouple signals rather than 4–20 mA HART transmitters.
- 1C31161G01 / 1C31164G01 — Ovation RTD input family for resistance-temperature measurement rather than HART analog transmission.
Procurement Check
For 5X00106G02, the safest purchase description is “Emerson Ovation HART High-Performance Analog Input, 5X00106G02”, followed by verification of the 5X00109G01/G02 personality module, channel configuration, field/local power arrangement, and Ovation software generation.
I would specifically reject a supplier listing that describes this part as a generic 24 VDC digital-input module. The available Ovation documentation consistently places 5X00106G02 in the HART analog-input family, although the published channel-count descriptions require care.
