Emerson 5X00062G01 | HART Analog Output Module | Ovation DCS
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson Process Management / Westinghouse |
| Product Model | 5X00062G01 |
| System | Ovation DCS |
| Product Type | HART Analog Output Electronics Module |
| Number of Channels | 8 |
| Output Signal | 4–20 mA |
| Output Architecture | Multiplexed |
| Field Device Interface | HART-compatible output devices |
| HART Function | Digital communication superimposed on 4–20 mA signal |
| Resolution | 14-bit subsystem |
| Companion Personality Module | 5X00063G01 |
| Electronics Module Function | Eight 4–20 mA HART output channels |
| Personality Module Function | Passive field-side circuitry and channel fusing |
| Mounting | Ovation I/O subsystem |
| Typical Application | Control valves, positioners, and other HART-compatible actuators |
Emerson’s HART analog output documentation specifically identifies 5X00062G01 as the electronics module containing eight multiplexed 4–20 mA output channels. The associated 5X00063G01 personality module provides the passive field-side circuitry and user-serviceable fuse arrangement.
Product Introduction
The Emerson 5X00062G01 is an Ovation DCS HART Analog Output Electronics Module used to interface the control system with eight HART-compatible output devices. Its primary control signal is the conventional 4–20 mA loop, while HART digital information is superimposed on that analog signal for device communication and diagnostics.
The important engineering detail is that 5X00062G01 is not the complete field termination assembly by itself. Emerson’s documentation defines it as the electronics module and pairs it with 5X00063G01, the personality module containing the passive channel circuitry and field-side fusing.

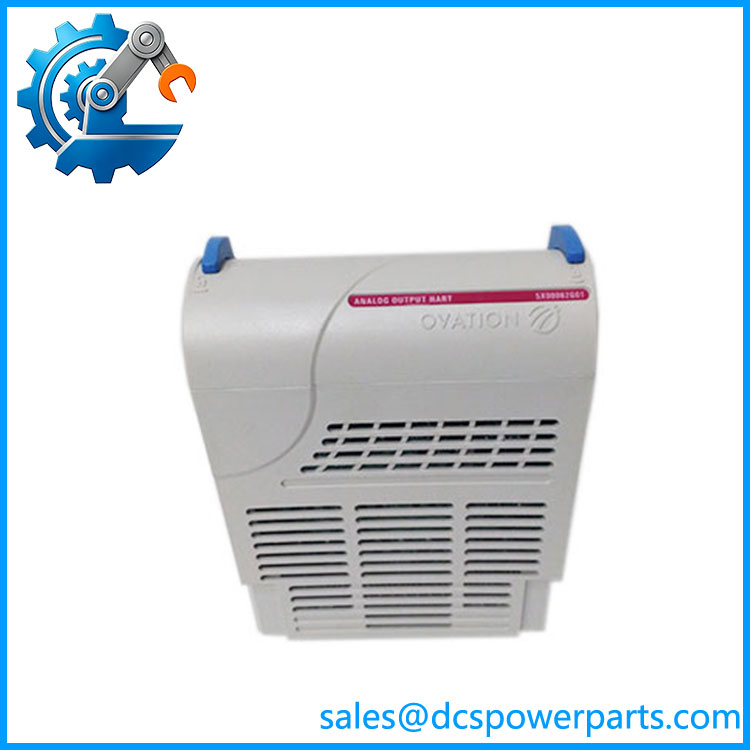

5X00062G01
Application Scenarios & Field Pitfalls — Engineer’s Perspective
Engineering Pain Point
A failure on one HART analog-output channel can be caused by the electronics module, personality module, field wiring, fuse, actuator, or HART field device. Replacing 5X00062G01 without checking the complete I/O pair can therefore produce an unnecessary module swap without correcting the actual loop problem.
Typical Applications
- Ovation DCS analog control loops using 4–20 mA HART-compatible devices.
- Control valve and valve-positioner applications requiring both analog command and digital HART information.
- Smart actuator interfaces where device diagnostics or configuration are transmitted over the same current loop.
- Power-generation process control using legacy Ovation HART I/O architecture.
Emerson notes that HART allows field-device digital information to coexist with the standard 4–20 mA control signal, allowing information such as process variables and diagnostic data to be communicated to the Ovation system.
Technical Pitfalls to Avoid
- Do not confuse 5X00062G01 with a generic analog output card.
The module is specifically an Ovation HART analog output electronics module. Its eight channels are designed around HART-compatible output devices, not simply eight arbitrary voltage/current outputs. - Check the 5X00063G01 personality module.
Emerson defines 5X00063G01 as the companion personality module for this HART AO subsystem. It contains passive circuitry for the eight channels and a serviceable fuse for the auxiliary field-side power. - Do not confuse HART analog output with HART analog input.
Ovation uses separate module pairs for HART AI and HART AO. Emerson’s spare-parts documentation identifies 5X00062G01 specifically as “EMOD ASSY, ANALOG OUTPUT – HART 8CH 4-20MA.” - Troubleshoot the complete current loop.
Before condemning the electronics module, check the personality-module fuse, loop wiring, external supply arrangement, actuator/positioner input, loop current, and HART device response. A healthy DCS output card cannot compensate for an open or incorrectly terminated field loop.
Related Products
- Emerson 5X00063G01 — Companion HART analog output personality module for the 5X00062G01 electronics module.
- Emerson 5X00058G01 — Ovation 8-channel HART analog input electronics module; input rather than output function.
- Emerson 5X00059G01 — Personality module associated with the HART analog input configuration.
- Emerson 5X00106G01 — Ovation HART high-performance analog input electronics module.
- Emerson 5X00109G01 — HART high-performance analog input personality module.
- Emerson 5X00167G01 — Ovation HART high-performance analog output electronics module with four channels.
- Emerson Ovation I/O subsystem — System architecture in which the electronics and personality modules work together for field I/O.
Procurement Check
Before approving an Emerson 5X00062G01 replacement, verify:
- Exact part number: 5X00062G01
- Ovation DCS hardware generation
- Electronics-module revision
- Companion 5X00063G01 personality module
- Eight-channel HART AO configuration
- 4–20 mA loop requirements
- Field-side fuse condition
- Connected HART field-device type
- Control-valve or positioner wiring
- Existing I/O database configuration
- Cabinet wiring and termination arrangement
- Firmware/software compatibility where applicable
- Installed module revision and nameplate markings
Recommended procurement description:
Emerson Ovation 5X00062G01 HART Analog Output Electronics Module, 8-Channel Multiplexed 4–20 mA Output, HART-Compatible Field Device Interface, Companion 5X00063G01 Personality Module.
The critical identification point is 5X00062G01 = electronics module, while 5X00063G01 = personality module. Treating the two as interchangeable parts can lead to an incomplete replacement. For field maintenance, verify the complete Ovation I/O pair and the existing 4–20 mA/HART loop configuration before commissioning.
