Bently Nevada 3500/70-01-01 Recip Impulse/Velocity Monitor
Product Overview
The Bently Nevada 3500/70-01-01 is a four-channel reciprocating machinery protection monitor within the Bently Nevada 3500/70M family. Its job is more specific than simply displaying vibration: the module receives acceleration and velocity signals from compatible seismic transducers, processes those signals into measurements appropriate for reciprocating machinery, and compares the resulting variables with user-programmable alarm limits. Bently Nevada identifies the 3500/70M for applications including reciprocating compressors and provides channel functions for Impulse Acceleration, Acceleration 2, Recip Velocity, and Low Frequency Recip Velocity.
The 3500/70-01-01 configuration has two important ordering-code details. The first -01 identifies the Prox/Velom I/O module with internal terminations; the second -01 identifies the CSA/NRTL/C approval configuration for Class I, Division 2 applications. That distinction matters when replacing an existing monitor. A visually similar 3500/70 module with a different I/O termination arrangement or approval suffix should not automatically be treated as a drop-in replacement.
Within a complete 3500 rack, the monitor is one component of a larger machinery-protection architecture. The rack requires the appropriate 3500/05 rack, 3500/15 power supply arrangement, 3500/22M transient data interface, monitor modules, I/O modules, and configuration software as applicable. Bently Nevada describes the 3500 system as a continuous online monitoring platform designed for machinery protection and API 670-oriented applications.
For reciprocating compressors, the Bently Nevada 3500/70-01-01 is particularly relevant where crankcase, crosshead, or related casing vibration measurements must feed an established 3500 protection system. The Bently Nevada 3500/70-01-01 should therefore be evaluated as a complete ordering code, not simply as a generic “3500/70 module.”
Product Introduction
Reciprocating compressors generate vibration signatures that do not always fit the measurement assumptions used for conventional rotating machinery. The 3500/70M addresses that problem with dedicated impulse and reciprocating-velocity measurement functions across four channels. Compatible inputs include Bently Nevada 330400, 330425, and Velomitor CT seismic transducers.
For a legacy replacement, the -01-01 suffix is the part worth checking carefully: internal I/O terminations and the Class I, Division 2 approval configuration are both encoded in the order number.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 3500/70-01-01 |
| Manufacturer / Brand | Bently Nevada |
| Product Type | Recip Impulse/Velocity Monitor |
| Monitor Family | 3500/70M |
| Number of Channels | 4 |
| I/O Module | Prox/Velom I/O with internal terminations |
| Primary Measurements | Impulse Acceleration, Acceleration 2, Recip Velocity, Low Frequency Recip Velocity |
| Compatible Transducer Types | Seismic acceleration / velocity transducers |
| Example Compatible Sensors | 330400, 330425, Velomitor CT |
| Approval Option | CSA / NRTL / C |
| Hazardous Location Classification | Class I, Division 2 |
| System Architecture | Bently Nevada 3500 rack-based machinery protection system |
| Typical Application | Reciprocating compressors and machinery |
| Configuration | Via 3500 Rack Configuration Software |
Bently Nevada’s current product material identifies the 3500/70M as a four-channel monitor, while the ordering information for 3500/70-01-01 specifies the internal-termination I/O and approval configuration.

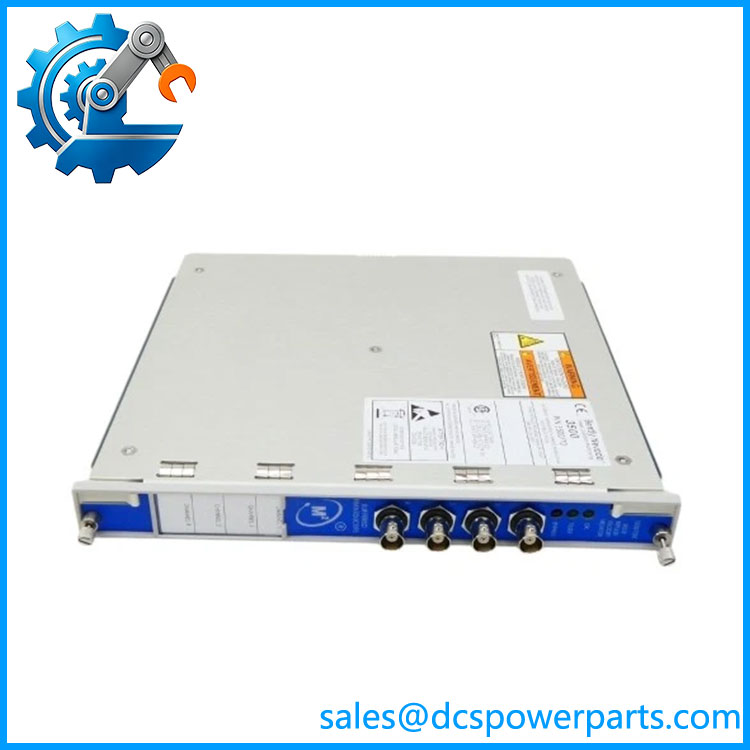

3500/70-01-01
Major Features and Advantages
Four dedicated monitoring channels
The 3500/70M provides four channels for reciprocating machinery measurements. This is significant when several vibration variables must be monitored from the same machine without combining unrelated measurement functions into a general-purpose monitor. Bently Nevada specifically identifies acceleration and velocity inputs as well as specialized reciprocating measurements.
Purpose-built reciprocating machinery functions
Impulse acceleration and reciprocating velocity behave differently from many conventional shaft-vibration measurements. The monitor provides dedicated channel functions rather than forcing the application into a generic vibration-monitoring configuration. This makes the module particularly relevant to reciprocating compressor protection packages.
Prox/Velom I/O with internal terminations
The first configuration suffix in 3500/70-01-01 specifies the Prox/Velom I/O module with internal terminations. This is an important procurement detail because the physical termination arrangement affects field wiring and replacement compatibility. The older 3500 documentation also identifies the Prox/Velom I/O architecture as supporting appropriate seismic and Velomitor transducer connections.
Compatible with established Bently Nevada seismic transducers
The 3500/70M accepts acceleration and velocity signals from seismic transducers including the Bently Nevada 330400, 330425, and Velomitor CT. This gives the monitor a defined position within a complete reciprocating-compressor vibration measurement chain.
Integration with the 3500 machinery-protection platform
The monitor is not intended to operate as a standalone PLC-style controller. It installs as part of the modular 3500 rack architecture, alongside power supplies, the 3500/22M transient data interface, relay modules where required, communication gateways, and other monitor modules.
Hazardous-area approval configuration
The second -01 in the part number identifies the CSA/NRTL/C configuration for Class I, Division 2 applications. Do not generalize that approval to every 3500/70 variant; the approval suffix is part of the ordering configuration and must match the actual installation requirements.
Related Products
- Bently Nevada 3500/70-01-00 — 3500/70M configuration with the same Prox/Velom internal-termination I/O family but a different approval suffix; verify site approval requirements before substitution.
- Bently Nevada 3500/70-01-02 — Another 3500/70M ordering configuration using the -01 I/O option; the final suffix differs and must be checked against the installed approval requirement.
- Bently Nevada 3500/70-02-01 — 3500/70M variant with a different I/O configuration; not automatically equivalent to the internal-termination version.
- Bently Nevada 3500/72M — Four-channel reciprocating rod-position monitor for rod position, rod drop, and related hyper-compressor measurements.
- Bently Nevada 3500/77M — Four-channel cylinder-pressure monitor intended for compatible pressure-transducer applications on reciprocating compressors.
- Bently Nevada 3500/42M — Four-channel Proximitor/Seismic Monitor used for applicable proximity and seismic measurements.
- Bently Nevada 3500/22M — Transient Data Interface module forming part of the 3500 rack architecture and interface to compatible monitoring software.
- Bently Nevada 3500/32M — Four-channel relay module for transmitting monitor status and alarm conditions into the machinery protection system.
- Bently Nevada 3500/92 — Communication Gateway for integrating 3500 monitoring information with external automation and control networks.
FAQ
What is the Bently Nevada 3500/70-01-01?
It is a four-channel 3500/70M Recip Impulse/Velocity Monitor configured with a Prox/Velom I/O module with internal terminations and the CSA/NRTL/C Class I, Division 2 approval option.
What does the 3500/70M monitor?
It processes acceleration and velocity measurements from compatible seismic transducers and can be configured for Impulse Acceleration, Acceleration 2, Recip Velocity, and Low Frequency Recip Velocity channel functions.
Is 3500/70-01-01 suitable for reciprocating compressors?
Yes. The 3500/70M is specifically positioned by Bently Nevada for reciprocating machinery applications, including reciprocating compressors. It is listed as a four-channel monitor within Bently Nevada’s reciprocating machinery protection offering.
Can I hot-swap the 3500/70-01-01?
Do not assume unrestricted hot swapping. The 3500 system is designed as a rack-mounted machinery-protection system, and removing a monitor can affect the protection channel. Bently Nevada documentation specifically warns that machinery protection may be lost when a monitor module is removed from the rack. Follow the approved maintenance procedure for the installed rack and protection system.
Does it support firmware v3.1?
A specific firmware v3.1 compatibility statement for 3500/70-01-01 was not established in the documentation reviewed here. Firmware revision should therefore be verified against the installed 3500 Rack Configuration Software and the existing rack configuration rather than assumed from the part number.
Does the module retain the compressor protection configuration?
The module is configurable through the 3500 system configuration environment, but the exact configuration-storage and recovery procedure depends on the installed 3500 system revision and software. Before removing an existing monitor, capture and document the current rack and channel configuration.
What should I verify when buying a New Surplus 3500/70-01-01?
Verify the complete 3500/70-01-01 number, I/O module configuration, approval marking, revision information, connector condition, front-panel status, and physical condition. If replacing an operating protection module, compare the existing configuration before installation. “New Surplus” describes inventory condition; it does not by itself establish factory provenance or warranty coverage. Confirm the supplier’s actual warranty terms separately.
Procurement Note
The critical issue with 3500/70-01-01 is the complete configuration code. The first suffix identifies the Prox/Velom I/O module with internal terminations, while the final suffix identifies the CSA/NRTL/C Class I, Division 2 approval configuration. Those details can affect field wiring and site acceptance, so ordering only by the base “3500/70” designation is poor procurement practice.
Also verify the transducer chain. Bently Nevada identifies the 3500/70M for acceleration and velocity inputs from seismic devices such as the 330400, 330425, and Velomitor CT. A replacement monitor should therefore be checked against the installed sensor type and channel configuration before commissioning.
Finally, remember that the 3500/70-01-01 is a machinery-protection monitor, not a general PLC analog-input card. Its value comes from the complete 3500 architecture, configured measurement functions, alarm logic, relay interfaces, and approved transducer installation. Replacing it with a superficially similar monitor without checking the rack configuration can create a protection-system mismatch.
