Alstom COP232.2 029.232 446 VME A32/D32 Programmable Control Unit
Product Introduction
In a legacy Alstom control cabinet, the controller is usually not an interchangeable computer board. The processor, VME backplane, application software, and neighboring interface cards form a defined system architecture. Alstom COP232.2 029.232 446 is identified as a VME A32/D32 programmable control unit, placing it in the controller/processing layer of Alstom’s industrial automation hardware rather than in the field-I/O category.
The COP232.2 belongs to the Alstom 232-series control hardware used in legacy power and industrial control equipment. Available references specifically associate the 029.232 446 identification with the COP232.2 VME controller. Because detailed original engineering documentation is not readily available in the public sources reviewed, procurement should verify the board revision, VME rack configuration, application firmware, and connected I/O architecture before treating a replacement as interchangeable.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | COP232.2 |
| Part Number | 029.232 446 |
| Manufacturer | Alstom |
| Product Type | Programmable Control Unit |
| Controller Architecture | VME |
| Bus/Data Format | A32/D32 |
| Primary Function | Industrial control / processing |
| Product Family | Alstom 232-series control hardware |
| Application | Alstom Power Service control systems |
| Hardware Type | VME-based controller |
The exact-part references consistently identify COP232.2 / 029.232 446 as a VME A32/D32 controller unit.
Major Features / Advantages
VME-Based Controller Architecture
The defining characteristic of the .2 is its VME architecture with A32/D32 capability. VME was widely used in industrial control systems where multiple processor and interface boards communicate through a common backplane.
For maintenance engineers, that means the .2 should be evaluated as part of a complete VME system. A visually similar processor board is not necessarily an acceptable replacement if its address space, data width, backplane behavior, or software environment differs.

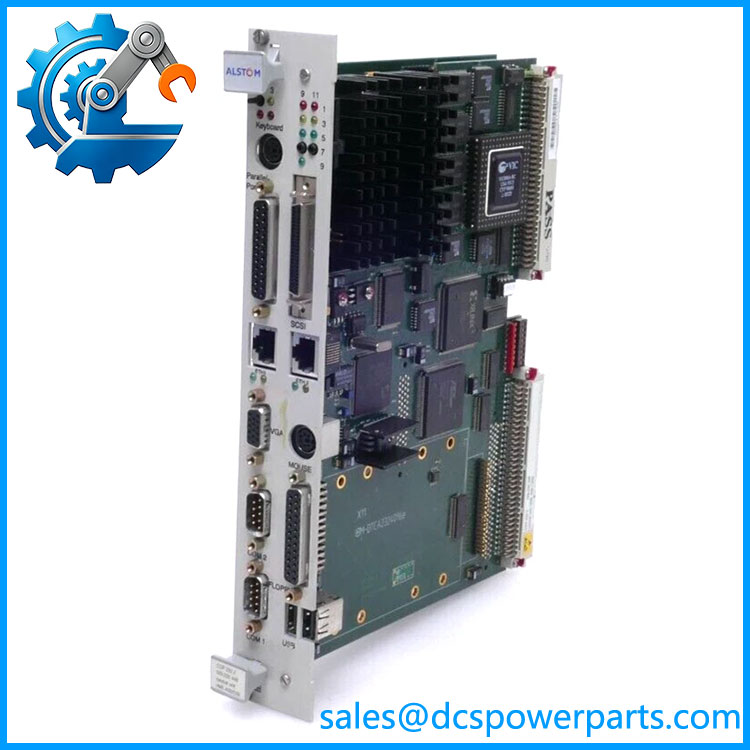

COP232.2 29.232 446
Dedicated Alstom Control Hardware
The .2 is not simply a generic VME CPU marketed for unrelated applications. The exact 029.232 446 reference appears in Alstom control-system documentation and equipment listings as a programmable control unit.
That distinction is important during legacy-system maintenance. The application software and system configuration can be just as important as the PCB itself. A replacement that passes a basic power-up test may still fail to communicate correctly with the rest of the control system if the expected software or configuration is missing.
A32/D32 Data Handling
The A32/D32 designation indicates the VME addressing/data architecture associated with the board. This provides a useful technical identifier when comparing the .2 with other VME cards in the same cabinet.
Do not, however, turn A32/D32 into a claim that the board supports a particular external Ethernet or fieldbus protocol. The available references discuss Ethernet separately in the broader Alstom controller environment, but they do not provide enough evidence to assign a specific external Ethernet interface to the .2 itself.
Appropriate for Legacy System Support
.2 is primarily relevant when maintaining an existing Alstom installation rather than designing a new generic PLC system. Keeping the original controller architecture can be important when the plant relies on established application software, VME interface cards, and validated control logic.
For procurement, the exact 029.232 446 identification should therefore remain the starting point. A functional description such as “VME controller” is not sufficiently precise by itself.
Part of a Broader 232-Series Hardware Family
The .2 appears alongside other Alstom 232-series hardware, including the .3 029.366 816 and CAN232.2 029.356 519 in secondary Alstom equipment catalogs. These devices occupy different functions and should not be assumed interchangeable simply because their model numbers share the 232 designation.
Application Scenarios & Pain Points
- Legacy Alstom power-control systems: Used as a programmable controller within established Alstom control architectures.
- VME-based industrial automation: Appropriate where the existing system uses a VME backplane and expects A32/D32 controller operation.
- Maintenance and spare-parts programs: The exact 029.232 446 identification is useful when maintaining aging VME-based control cabinets where original controller hardware remains in service.
- Control-system refurbishment: Relevant when an obsolete Alstom controller must be replaced without changing the surrounding VME architecture, subject to firmware and system compatibility checks.
Field note: One of the easiest mistakes is confusing the with another Alstom 232-series processor. The family number alone is not enough. The complete part number, VME architecture, application software, and installed neighboring boards should all be checked.
Related Products
- Alstom .3 029.366 816 — another programmable control unit; do not assume it is a direct replacement for .2.
- Alstom CAN232.2 029.356 519 — four-channel CAN serial communication unit in the same broader 232-series family; different function from .2.
- Alstom ICP232 029.359 325 — converter-near controller/interface hardware associated with static-frequency-converter systems; functionally different from .2.
- Alstom SPU232 series — processor/controller hardware used in static-frequency-converter control architectures; verify system role before substitution.
- Alstom VCM232.2 029.359 088 — VME configuration-manager/master hardware referenced in Alstom 232-series catalogs; not a direct .2 replacement.
Engineer’s Guide: Field Pitfalls to Avoid
1. Match 029.232 446 exactly
Do not purchase based solely on “.2.” The full identification 029.232 446 should appear on the board or its original documentation.
2. Do not confuse a VME controller with a generic PLC CPU
The VME architecture, application software, and associated interface cards are part of the system. A generic VME processor with similar electrical dimensions does not automatically provide functional compatibility.
3. Verify the VME backplane configuration
Before replacement, document the rack position, neighboring boards, backplane arrangement, and any installed interface modules. A controller replacement should be evaluated against the complete rack architecture.
4. Check firmware and application configuration
A replacement PCB may require the correct application software or configuration before the system can resume normal operation. Do not assume that hardware identity alone guarantees a working spare.
5. Do not infer Ethernet capability from the surrounding documentation
Some Alstom controller documentation discusses Ethernet networks and Ethernet-compatible controller equipment. That does not establish that .2 029.232 446 itself contains a particular Ethernet port or protocol implementation.
6. Verify the actual physical condition
For legacy VME hardware, inspect PCB contamination, connector condition, corrosion, component aging, and signs of previous repair. If the inventory is used or refurbished, verify the actual condition rather than relying on a generic stock description.
FAQ
What is Alstom .2 029.232 446?
It is an Alstom VME A32/D32 programmable control unit identified by part number 029.232 446.
Is .2 a PLC CPU?
It is a programmable industrial controller, but it should not be described as a conventional modern PLC CPU. Its documented architecture is based on the VME bus, with A32/D32 operation.
What does A32/D32 mean?
A32/D32 refers to the VME addressing and data-transfer architecture associated with the controller. It is a hardware-bus characteristic, not an indication of an external field communication protocol.
Is .2 the same as .3?
No. Available Alstom component references identify .3 as 029.366 816, while the requested .2 is 029.232 446. Their similar names do not establish interchangeability.
Can another VME CPU replace .2?
Not without engineering verification. The replacement would need to match the VME system architecture, application software, I/O/interface cards, addressing, and system configuration. A generic VME CPU should not be treated as a drop-in substitute.
What should procurement verify?
Match .2 / 029.232 446, physical board markings, revision information, VME rack position, application firmware/configuration, and the surrounding interface cards. For a used or refurbished spare, inspect the actual board and connectors before acceptance.
Procurement Takeaway
Alstom .2 029.232 446 is a VME A32/D32 programmable control unit used in legacy Alstom industrial control architecture. The strongest available exact-part references agree on this identification, while detailed electrical specifications are not sufficiently documented in the public sources reviewed.
For a replacement purchase, treat 029.232 446 as the primary identification and verify the complete VME rack, software, firmware, and interface-card configuration. Do not substitute another 232-series controller—or a generic VME processor—merely because the board appears physically similar.
