Allen-Bradley 2711PC-RP8D | HMI Logic Engine with FactoryTalk View ME Runtime Support

Description

Key Technical Specifications

Product Introduction

Allen-Bradley 2711PC-RP8D Product Introduction

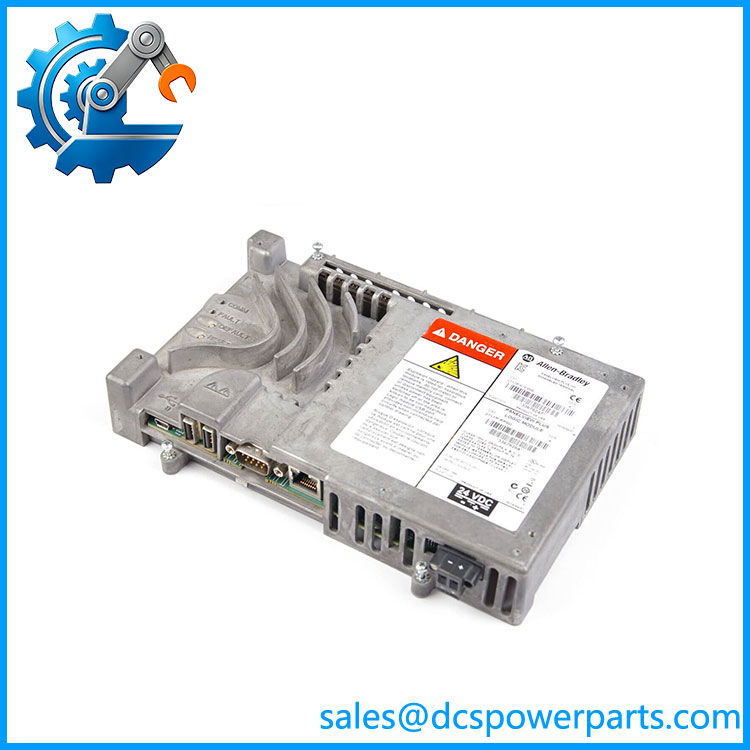

Allen-Bradley 2711PC-RP8D is a PanelView Plus 6 logic module that provides the computing core for compatible HMI terminals. It runs the embedded Windows CE 6.0 environment with FactoryTalk View Machine Edition runtime, allowing operators to monitor processes, display alarms, and interact with PLC-controlled equipment.

The main value of Allen-Bradley 2711PC-RP8D is extending the service life of installed PanelView Plus 6 systems without replacing the complete operator terminal. It handles application execution, communication processing, and data storage. Verify display compatibility, firmware revision, and FactoryTalk View application version before installation.

2711PC-RP8D

Application Scenarios & Field Pitfalls (The Engineer’s Perspective)

Engineering Pain Point

A production machine can keep running while the HMI suddenly loses its operator functions. The PLC may still be controlling outputs correctly, but operators cannot acknowledge alarms, change recipes, or monitor process conditions.

Replacing the logic module often restores the system quickly. The difficult part is recovering the correct application environment. The HMI project, firmware, communication drivers, and controller settings all need to match.

Typical Applications

• Manufacturing Automation – Machine operator stations for packaging lines, assembly equipment, and production cells.
• Food and Beverage – Process visualization panels for batching systems, filling machines, and production skids.
• Water Treatment – Local control interfaces for pumps, filtration systems, and chemical dosing equipment.
• Material Handling – Operator terminals for conveyors, sorting systems, and automated storage equipment.

Technical Pitfalls to Avoid

1. Confirm the Exact Terminal Family
   The 2711PC-RP8D is not a universal replacement for every PanelView Plus unit. Verify the display module, terminal size, and hardware family before installation.
2. Match FactoryTalk View Runtime Versions
   Older HMI applications may depend on specific runtime revisions. A logic module with a different firmware level may require application conversion or updates.
3. Back Up the Existing HMI Application
   Do not assume the PLC contains the operator interface project. Export the FactoryTalk View ME application and document communication settings before removing the original module.

Related Products

• Allen-Bradley 2711P-RP8D
  PanelView Plus 6 700–1500 logic module with 24 VDC input, 512 MB RAM, and 512 MB Flash. Used for larger modular PanelView Plus 6 terminals.
• Allen-Bradley 2711PC-T6C20D
  PanelView Plus 6 Compact 6-inch touchscreen terminal. Used as a complete HMI solution with integrated display and logic functions.
• Allen-Bradley 2711PC-T10C4D1
  PanelView Plus 6 Compact 10-inch touchscreen terminal for applications requiring larger visualization screens.
• Allen-Bradley 2711P-RP6
  Earlier PanelView Plus logic module used in previous-generation operator terminals.
• Allen-Bradley 2711P-RDT6C
  Replacement display module for PanelView Plus 6 600 color touchscreen terminals.
• Allen-Bradley 2711P-RDT10C
  Replacement display assembly for larger PanelView Plus 6 terminals.
• Allen-Bradley 2711P-RP9D
  PanelView Plus 6 logic module variant with extended features compared with standard configuration.
• Allen-Bradley 2711P-T6C20D
  Complete PanelView Plus 6 600 touchscreen HMI terminal commonly used with FactoryTalk View ME applications.
