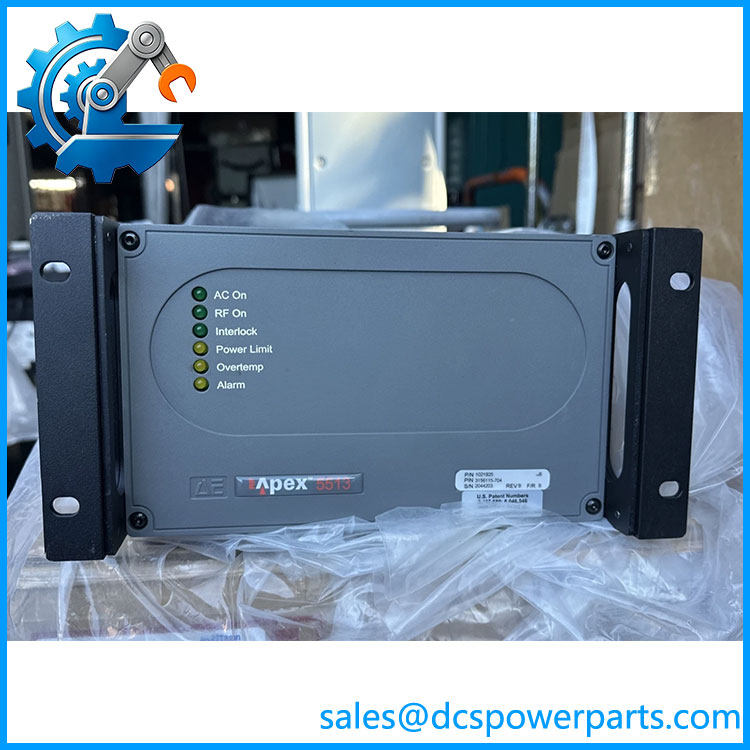

Advanced Energy 3156115-704 Apex 5513 RF Generator
Product Overview
In semiconductor plasma equipment, an RF generator is a process-critical power source: if the generator cannot establish or regulate the required RF output, the chamber process can fail even when the host equipment controller is operating normally. Advanced Energy 3156115-704 is identified as an Apex 5513 RF Generator, and multiple semiconductor-equipment records associate the exact part number with Advanced Energy’s Apex 5513 platform.
The Advanced Energy 3156115-704 appears in equipment records with identifier 1021925, and one equipment listing specifically identifies the unit as an Apex 5513 with a 208 V power supply. For procurement, the complete part number matters. Do not substitute another Apex 5513 part number simply because the model name matches; Apex 5513 variants can have different electrical configurations and equipment associations.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Advanced Energy |
| Product Family | Apex |
| Model | Apex 5513 |
| Part Number | 3156115-704 |
| Product Type | RF Generator |
| Function | RF power generation for plasma-processing equipment |
| Associated Equipment ID | 1021925 |
| Supply Configuration | 208 V reported for this P/N in equipment records |
| Application | Semiconductor / plasma-processing equipment |
| RF Output Frequency | Not reliably verified for this exact P/N |
| RF Output Power | Not reliably verified for this exact P/N |
| Output Impedance | Not reliably verified |
| Cooling Method | Not verified |
| Communication Interface | Not verified |
| Operating Temperature | Not verified |
| Installation | Equipment-specific |
| Condition | Verify actual unit condition and test status |
Specification caution: I found strong evidence for the Apex 5513 identification and the 208 V supply association, but I would not publish a specific RF frequency, maximum RF power, cooling requirement, or interface protocol without the applicable Advanced Energy manual or exact nameplate. Public listings for nearby Apex 5513 variants contain different configurations.
Application Scenarios & Field Considerations
Semiconductor Plasma Processing
The Apex 5513 is used as an RF power source within semiconductor manufacturing equipment. The RF generator provides the controlled high-frequency energy required by plasma-based process equipment. Equipment-part databases consistently classify 3156115-704 as an RF generator rather than a PLC or conventional industrial power supply.
3156115-704
Process Equipment Maintenance
A failed RF generator can produce symptoms such as loss of RF output, unstable process power, equipment interlock faults, or inability to initiate a plasma process. Troubleshooting should distinguish a generator fault from problems in the RF match, chamber load, interlock chain, cooling system, or host-equipment control signals.
OEM Equipment Replacement
The exact 3156115-704 identifier is more useful for procurement than the generic “Apex 5513” model name. Several other Apex 5513 part numbers exist, including 3156115-204, which appears in equipment records as a different Apex 5513 configuration.
Semiconductor Equipment Spares
The part is also associated with 1021925 in semiconductor-equipment records. This cross-reference can help identify the original equipment configuration, but it should not be treated as proof that every 1021925-labeled assembly is electrically identical.
Related Products
- Advanced Energy Apex 5513 — 3156115-204: Another Apex 5513 RF generator configuration; do not assume it is a direct replacement for 3156115-704.
- Advanced Energy Apex 5513 — 3156115-002: Another recorded Apex 5513 configuration.
- Advanced Energy 3156110-014 — Apex 1513: Different Apex model and RF-generator configuration.
- Advanced Energy 3156014-000B — PDW 600: Different RF-generator family.
- Advanced Energy 3156024-031B — PDX 900-2V: Different RF-generator platform used in semiconductor equipment.
- Advanced Energy 3155162-036 — Navigator 3013 L70ZA: RF/HV source associated with a different equipment architecture.
These are related RF-power products, not confirmed substitutes.
Engineer’s Guide — Field Pitfalls to Avoid
1. Do not buy by “Apex 5513” alone.
The Apex 5513 family contains multiple part numbers. 3156115-704 and 3156115-204, for example, are both recorded as Apex 5513 units but are different part numbers.
2. Verify the incoming power configuration.
For 3156115-704, equipment records identify a 208 V supply configuration. Confirm this against the nameplate and host-equipment electrical documentation before energizing a replacement.
3. Check the RF match and load before condemning the generator.
A generator reporting high reflected power does not automatically mean the RF generator itself has failed. Inspect the matching network, RF cables, chamber interface, and process load.
4. Preserve the equipment configuration.
Record the generator’s part number, serial number, revision, installed options, connector configuration, and host-equipment settings before removal. RF-generator replacement is not equivalent to swapping a standard 24 V industrial power supply.
5. Do not assume a generic RF generator can substitute.
Frequency, output power, control interface, interlock logic, impedance behavior, and mechanical/electrical configuration all have to match the host process equipment.
6. Verify test status separately from cosmetic condition.
A clean-looking RF generator is not proof that it can deliver stable RF power under load. For used equipment, request evidence of functional testing under an appropriate load or the supplier’s test procedure.
FAQ
What is Advanced Energy 3156115-704?
It is an Advanced Energy Apex 5513 RF Generator, used in semiconductor manufacturing equipment. Multiple equipment-part records identify the exact part number this way.
Is 3156115-704 a PLC or DCS module?
No. It is an RF generator/power source for plasma-processing equipment. It should not be classified as a conventional PLC, DCS I/O module, or industrial communication card.
What equipment identifier is associated with 3156115-704?
Several records associate 3156115-704 with 1021925.
What input voltage does 3156115-704 use?
An equipment listing specifically identifies the 3156115-704 Apex 5513 configuration with a 208 V power supply. For installation, confirm the actual nameplate and host-equipment electrical documentation rather than relying solely on a reseller database.
What RF frequency does it operate at?
I would not publish a frequency for this exact 3156115-704 without the applicable Advanced Energy documentation. Nearby RF-generator variants can have different configurations.
Is 3156115-204 a replacement for 3156115-704?
It should not be assumed to be a direct replacement. Both are recorded as Apex 5513 units, but they carry different Advanced Energy part numbers. Verify electrical configuration, RF specifications, controls, interlocks, and equipment compatibility before substitution.
What should procurement verify before buying?
Match 3156115-704, Apex 5513 designation, equipment identifier where applicable, input-power configuration, serial/revision information, connector arrangement, physical condition, and functional test evidence. For a used unit, verify actual inventory condition rather than relying on a stock photograph.
