Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Model | SCYC51040 |
| Ordering Number | 58052680E |
| Product Type | Converter Interface / Pulse Control Board |
| Application Platform | ABB Medium Voltage Drive and Converter Systems |
| Main Function | Pulse signal interface and converter control communication |
| Related Boards | SCYC51010 Firing Unit Card, SCYC51020 Synchronization Board |
| Signal Processing | Trigger and feedback signal handling |
| Interface Type | Internal ABB converter control interface |
| Installation | Converter control cabinet / electronics rack |
| Board Design | Industrial PCB assembly |
| Operating Environment | Industrial power electronics cabinet |
| Application Areas | Medium voltage drives, excitation systems, industrial converters |
Product Introduction

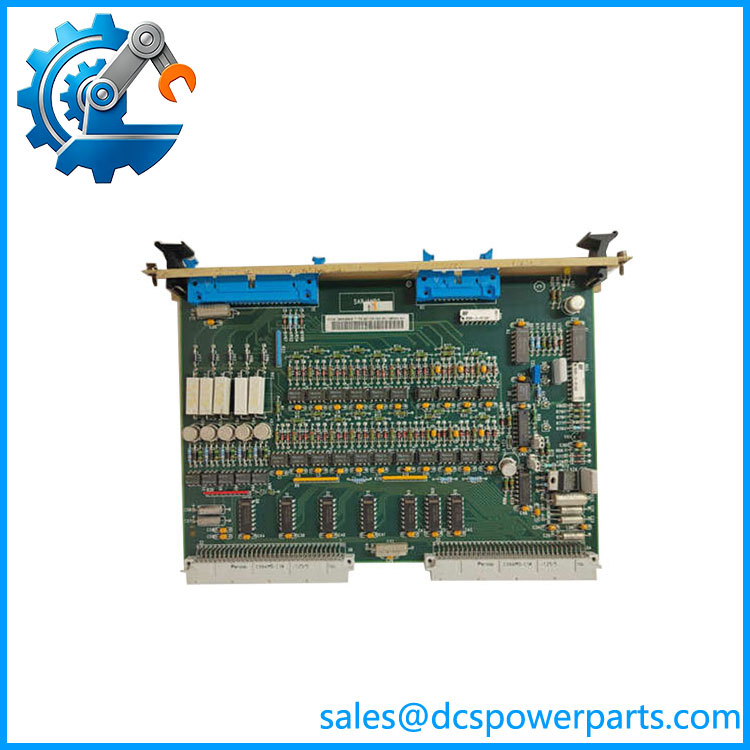

ABB SCYC51040 58052680E Overview
The ABB SCYC51040 58052680E is an interface board used in ABB power converter control architectures. It belongs to the SCYC51xx family of control electronics and provides signal routing and interface functions between converter control units and firing-related hardware. In ABB medium voltage drive systems, this type of board forms part of the communication path that coordinates power semiconductor switching and converter operation.
The ABB SCYC51040 58052680E works together with other converter control boards such as synchronization and firing modules. The board itself does not replace the main controller; instead, it supports the timing, pulse, and feedback exchange required for controlled operation of the converter power stage. Proper identification of the converter model, board revision, and associated SCYC modules is required before replacement.
SCYC51040
Application Scenarios & Field Pitfalls (The Engineer’s Perspective)
Engineering Pain Point
A medium voltage drive reports converter communication or firing-related alarms. The controller remains accessible, but the power section cannot enter normal operation.
The troubleshooting process often leads engineers toward the converter electronics chain. A fault in an interface board can interrupt pulse transmission or feedback signals even when the main control processor is functioning correctly.
The SCYC51040 58052680E is part of that signal path. Treat it as a converter control component rather than a general automation I/O module.
Typical Applications
Mining and Heavy Industry
Used in ABB medium voltage drives controlling:
- Large conveyors
- Crushers
- Grinding mills
- Ventilation systems
Cement and Mineral Processing
Applied in high-power motor systems requiring controlled acceleration, torque regulation, and energy management.
Power Generation Facilities
Used in converter and excitation-related equipment where accurate power semiconductor control is required.
Industrial Process Plants
Supports drive systems for:
- Pumps
- Compressors
- Fans
- Large rotating machinery
Technical Pitfalls to Avoid
1. Confirm the Exact Converter Assembly
ABB SCYC boards are designed for specific converter architectures. Verify the drive type, cabinet layout, and complete board combination before installation.
2. Inspect the Complete Trigger Chain
A suspected SCYC51040 failure may actually originate from:
- SCYC51010 firing unit card
- SCYC51020 synchronization board
- Fiber optic communication path
- Gate driver assemblies
Replacing only one board without checking the complete chain can result in repeated faults.
3. Check Board Revision and Firmware Compatibility
ABB converter electronics often include revision-specific hardware changes. Match the full ordering number and revision marking before commissioning.
4. Verify Internal Power Rails
Before replacing the board, check converter cabinet supply voltages. Unstable auxiliary power can create symptoms similar to a failed interface card.
