ABB S-053M 3BHB012897R0003 | ACS6000 Phase Module | MV Drive Replacement

Key Technical Specifications

ABB-related technical references consistently identify S-053M 3BHB012897R0003 as an ACS6000 main-drive phase module. It is listed alongside other ACS6000 phase modules such as S-073N and S-093H.

Specification caution: Public documentation for this exact material number does not provide enough authoritative information to publish a precise input-voltage, output-current, semiconductor current-rating, or thermal-rating table. Those values depend on the complete ACS6000 power configuration. They should not be copied from generic S-053M reseller listings.

Product Introduction

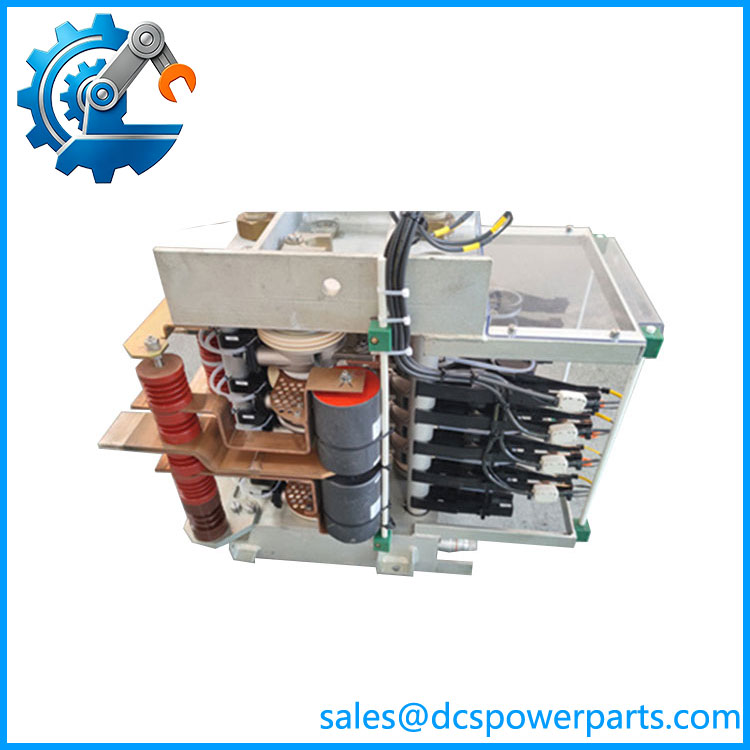

The ABB S-053M 3BHB012897R0003 is a phase power module used in ABB ACS6000 medium-voltage drive systems. It belongs to the drive’s high-power converter section and provides the controlled semiconductor switching required to form the motor-side AC waveform. References for the part identify it specifically as an main-drive phase module, rather than a PLC, DCS I/O, or general-purpose control board.

For maintenance teams, the important issue is system matching. The S-053M is one element of a larger power-conversion assembly, so its electrical and thermal characteristics cannot be evaluated independently from the drive’s converter topology, DC-link arrangement, cooling system, control electronics, and other phase modules. A replacement should therefore be matched by the complete ABB material number and the installed drive configuration.

S-053M

Application Scenarios & Field Pitfalls

Engineering Pain Point

A failed phase module in an can cause much more than a simple drive fault. Semiconductor failure, snubber problems, cooling degradation, gate-drive faults, or abnormal DC-link conditions can result in repeated phase-module failures. Installing another module without determining the original failure mechanism can turn an expensive spare into another immediate failure.

Typical Applications

• Medium-voltage motor drives — large industrial motors requiring controlled variable-speed operation.
• Metals and steel processing — high-power rolling, pumping, and process-drive applications.
• Mining and minerals — large conveyor, mill, compressor, and pump drives.
• Power-intensive industrial processes — high-power AC motor and converter applications using the platform.

The is a modular medium-voltage drive platform, and ABB documentation describes configurations built from dedicated power-conversion modules selected according to the required drive arrangement.

Technical Pitfalls to Avoid

1. Do not classify S-053M as a generic PLC or DCS module. The strongest available references identify it as an phase module. Some reseller pages attach generic “I/O,” “CPU,” or “communication module” labels that are not technically meaningful for this component.
2. Do not assume the 3BHB012897R0003 module can replace every S-053M. ABB uses several S-series phase-module variants, including S-073N, S-093H and others. Physical similarity does not establish electrical interchangeability.
3. Do not approve a replacement based only on an advertised MVA value. The complete configuration determines the applicable voltage, current, cooling, semiconductor loading, and control requirements. One secondary source describes S-053M as a roughly 5 MVA-class module, but that should not be treated as a universal standalone rating.
4. Inspect the cooling circuit before commissioning. The phase module operates as part of the power-conversion assembly. Cooling problems can be a root cause of semiconductor stress rather than merely a symptom of module failure.
5. Check the companion gate/control hardware. A semiconductor power module is only one part of the converter phase. Gate-drive connections, fiber interfaces, snubber circuitry, current/voltage feedback, and controller configuration should be checked before energization.

Related Products

• S-073N 3BHB009884R0021 — Another ABB phase-module family; different electrical configuration, so it is not an automatic replacement for S-053M.
• S-093H 3BHB009885R0004 — Higher-power phase-module family used in larger converter configurations; not a drop-in substitute.
• S-113H 3BHB018008R0003 — ABB S-series power-conversion component associated with higher-power /PCS6000 applications.
• 5SHY3545L0014 — ABB/ABB-associated high-power IGCT semiconductor component used in converter power electronics; it is a semiconductor device rather than a complete S-053M phase assembly.
• GFD563A102 3BHE046836R0102 — Control/power-electronics component associated with ABB high-power converter and excitation applications; system compatibility must be verified.
• UAC389AE02 HIEE300888R0002 — ABB control-board family found in related power-converter architectures; not a replacement for the S-053M power module.
• UAC383AE01 HIEE300890R0001 — ABB control/I/O electronics associated with the same broader converter ecosystem.
• PPC907BE 3BHE024577R0101 — ABB AC 800PEC/drive control electronics used in power-electronics control architectures; function is fundamentally different from the S-053M phase module.
• UFC921A101 3BHE024855R0101 — ABB legacy converter interface/control board found in related power-electronics systems.

Procurement Check

Before purchasing S-053M 3BHB012897R0003, verify:

• Exact ABB designation: S-053M
• Exact material number: 3BHB012897R0003
• Host system:
• Complete drive rating and topology
• Number and type of installed phase modules
• Cooling system condition and coolant history
• Gate-drive and fiber-optic connections
• Snubber and semiconductor protection circuitry
• DC-link condition before installing the replacement
• PCB/module revision and nameplate markings
• Physical condition of power terminals, cooling interfaces, and connectors

Bottom line: ABB S-053M 3BHB012897R0003 is an medium-voltage drive phase power module, not a conventional PLC/DCS module. The exact material number should be matched, and the replacement decision should be based on the complete power-stage configuration rather than generic reseller specifications.
