ABB RET543AB245AAAA | Transformer Terminal | 8I/1U Protection

Description

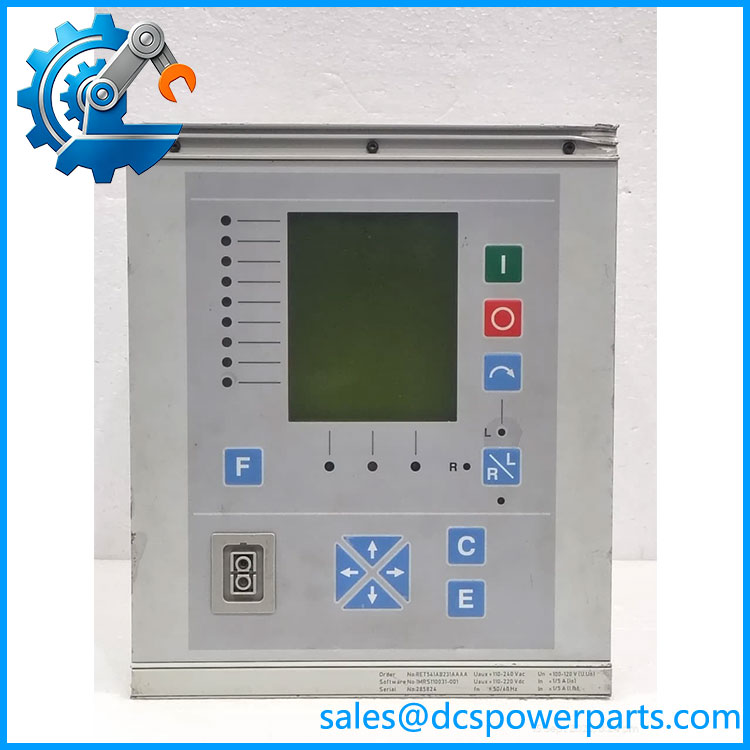

ABB RET543AB245AAAA Transformer Protection Terminal

Key Technical Specifications

The 245 hardware configuration is documented with eight 1/5 A current-transformer inputs and one 100 V voltage-transformer input. The BAAA configuration within this hardware family uses the high-voltage PS1/240 supply and corresponding 155 VDC digital-input threshold.

The general RET 54_ electrical specifications give 50/60 Hz operation, selectable CT input ratings, 100–120 V parameterized voltage inputs, 25 digital inputs for RET 543, and the stated PS1/240 auxiliary supply ranges.

Product Introduction

The ABB RET543AB245AAAA is a configured RET 543 transformer terminal for transformer protection, control, measurement, and supervision. The RET 543 platform uses a multiprocessor architecture with dedicated analog and digital I/O handling and a local graphic HMI. ABB documentation describes the RET 54_ family for two-winding power transformers and generator-transformer blocks in distribution applications.

This particular order code is important because the hardware configuration determines the available measurement channels and auxiliary-voltage arrangement. The 245 configuration provides eight current channels and one voltage channel, while the B functionality level identifies the Basic function set. The AAAA ending should be preserved when sourcing a replacement because the complete RET 54_ order number identifies the hardware and software configuration.

RET543AB245AAAA

Engineering Pain Point

With legacy RET 543 units, the main replacement risk is matching the relay family but not matching the hardware configuration. An RET 543 with a different current/voltage input arrangement, supply version, display configuration, or functionality level can look similar while having materially different terminal assignments. ABB specifically states that the order number identifies the terminal type, hardware, and software.

Typical Applications

• Two-winding power-transformer protection and supervision
• Generator-transformer block protection
• Transformer measurement and local control
• Circuit-breaker and disconnector control
• Transformer condition monitoring and alarm handling
• Legacy ABB distribution automation installations

Technical Pitfalls to Avoid

1. Preserve the complete order code. RET543AB245AAAA is more informative than simply ordering an “RET 543.” ABB uses the order number to identify the hardware and software configuration.
2. Verify CT wiring carefully. The 245 configuration has eight 1/5 A CT inputs. CT secondary rating, polarity, phase assignment, and configured primary scaling must match the protection scheme.
3. Do not assume three-phase voltage measurement. This particular hardware variant is 8I/1U, meaning eight current inputs and one voltage input. It is materially different from RET 543 6I/3U and 7I/2U configurations.
4. Check the digital-input voltage. The B power-supply configuration uses the high PS1/240 version, with a 155 VDC digital-input threshold and 220 VDC rated digital inputs.
5. Do not assume RTD inputs are installed. The AAAA version of the 245 configuration is documented with zero RTD/analog inputs and zero analog outputs; configurations ending in other suffixes can differ.
6. Back up the relay configuration before replacement. Protection settings, measurement scaling, logic, communication parameters, and control logic are separate from the physical part number.
7. Verify communication hardware. The RET 54_ platform supports interfaces including RS-232, RS-485, fiber-optic SPA/IEC 60870-5-103, DNP 3.0, Modbus, LON, and optional gateway arrangements, but the actual interface population depends on the installed configuration.

Related Products

• ABB RET 541 — Smaller RET 54_ transformer terminal with fewer analog and digital I/O channels than RET 543.
• ABB RET 545 — Higher-I/O RET 54_ transformer terminal; uses a different power-supply module architecture from RET 543.
• ABB RET543A_242AAAA — RET 543 8I/1U hardware variant with a different auxiliary/input-voltage configuration from the 245 family.
• ABB RET543A_245BAAA — Same 245 hardware family with the B functionality/power configuration; verify the complete suffix before treating it as interchangeable.
• ABB RET543A_245CAAA — 245 hardware family with the C supply/input configuration; not an automatic substitute for the B version.
• ABB REF 543 — Different RET/REF application family; REF 543 is a feeder terminal rather than a transformer terminal. ABB maintains separate documentation for it.
• ABB RER 123 — Fiber-optic interface module used with SPA and IEC 103 communications in applicable RET 54_ configurations.
• ABB RER 133 — RS-485 interface module supporting DNP 3.0 and Modbus in applicable RET 54_ configurations.
• ABB SPA-ZC 302 — Profibus-DPV1/SPA gateway that can be used with compatible RET 54_ communication architectures.

Procurement Note

For a like-for-like replacement, specify ABB RET543AB245AAAA in full. Verify the nameplate against the existing unit, particularly the B functionality level, 245 hardware configuration, 8I/1U analog interface, high PS1/240 supply, 155 VDC digital-input threshold, display configuration, and communication modules.

The most important distinction is that RET543AB245AAAA is an 8I/1U transformer terminal, not a generic RET 543 relay. Replacing it with a 6I/3U or 7I/2U RET 543 changes the analog measurement architecture and can require different wiring and protection configuration.

For a used or refurbished replacement, compare the internal hardware configuration and software revision with the installed relay before commissioning. ABB’s documentation explicitly treats the complete order number as the identifier for the terminal’s hardware and software configuration.
