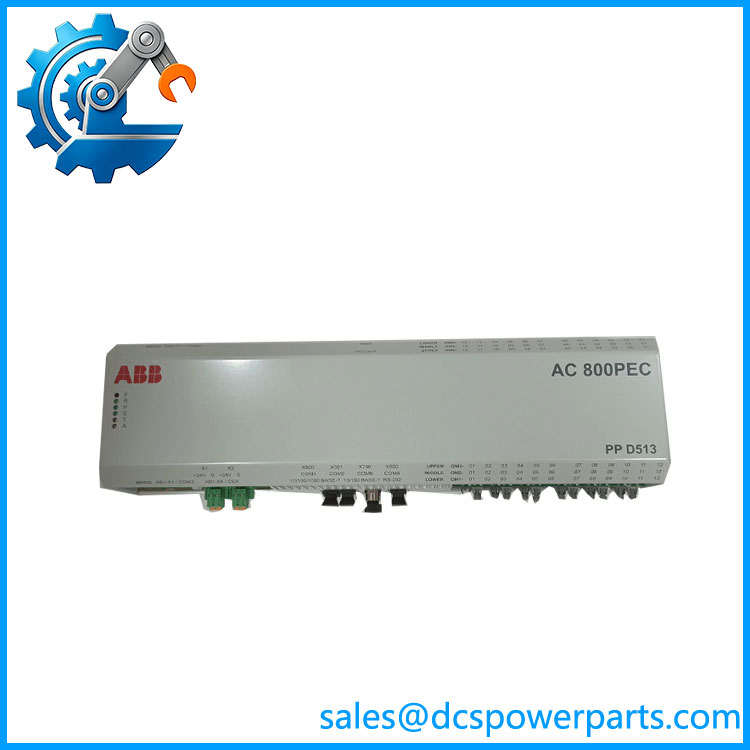

ABB PPD513A0E110110 | 3BHE039724R0E41 AC800PEC High-Speed Control Processor Module

Description

Product Introduction

Generator excitation systems require precise control processing because voltage regulation, reactive power response, and system stability depend on accurate timing between measurement, calculation, and output commands. The ABB PPD513A0E-110110 3BHE039724R0E41 is an AC 800PEC-based processing module designed for ABB excitation control applications, providing the computing and communication functions required for high-speed electrical control tasks.

The ABB PPD513A0E-110110 3BHE039724R0E41 is commonly associated with ABB excitation architectures where fast signal processing and coordinated control are required. It works together with other AC 800PEC modules, I/O interfaces, and power electronic components to regulate generator excitation behavior and maintain stable electrical output.

For ABB AC 800PEC maintenance, replacement of the ABB PPD513A0E-110110 3BHE039724R0E41 should include verification of application software, controller parameters, communication configuration, and firmware revision. A replacement processor module may restore hardware functionality, but incorrect configuration data can prevent synchronization or excitation startup.

Technical Specifications

Application Scenarios & Pain Points

The controller section of an excitation system is often overlooked during troubleshooting. A generator may show unstable voltage, excitation alarms, or failed startup sequences even when the power semiconductor section is healthy. The processing module is responsible for executing the control functions that connect measurement signals with excitation outputs.

Generator Excitation Systems

The ABB PPD513A0E-110110 3BHE039724R0E41 is applied in excitation control systems for synchronous generators. It processes control functions associated with voltage regulation, reactive power control, and system communication.

Power Plants

Used in:

• Hydro generator excitation systems
• Thermal power generation units
• Industrial captive power plants
• Utility generator control systems

Converter and Power Electronics Applications

The module can operate within ABB AC 800PEC-based systems used for complex power conversion applications where fast control response is required.

Brownfield Maintenance Projects

Many facilities continue operating ABB excitation equipment for decades. Replacing a failed processing module can extend the operating life of existing systems without a complete control system replacement.

Field note: A generator experienced intermittent excitation communication faults during startup. Initial checks showed the thyristor bridge and field circuit were normal. Diagnostic records indicated unstable controller processing. After replacing the processing module and restoring the original configuration, excitation startup returned to normal.

PPD513A0E110110 3BHE039724R0E41

Related Products

• ABB PCD237A101 3BHE028915R0101
  AC 800PEC excitation controller board used in ABB excitation systems. Requires application verification before replacement.
• ABB UAD155A0111 3BHE029110R0111
  Excitation interface and control module used in related ABB power control architectures.
• ABB UFD203A101 3BHE019361R0101
  ABB excitation/converter interface module used in power control applications.
• ABB GFD563A101 3BHE046836R0101
  Excitation control component used in synchronous machine voltage regulation systems.
• ABB 5SHY / GVC Series IGCT Modules
  Power semiconductor and gate driver components commonly paired with ABB converter control systems.
• ABB AC 800PEC Controller Platform
  High-performance control platform used for excitation, converter, and electrical automation applications.

Engineer’s Guide: Field Pitfalls to Avoid

⚠️ Replacing the Module Without Parameter Backup

A replacement controller may power up correctly but fail during generator operation if application parameters are missing.

Verify before removal:

• Control software version
• Parameter files
• Communication settings
• Excitation tuning values

⚠️ Confusing Similar ABB PEC Modules

ABB AC 800PEC modules often share similar mechanical designs, but internal functions differ.

Confirm:

• Exact ABB part number
• Hardware revision
• Slot position
• Firmware compatibility

⚠️ Ignoring External Communication Faults

A controller alarm does not always mean the processor itself has failed.

Check:

• Fiber and Ethernet connections
• Fieldbus communication
• Power supply quality
• Cabinet grounding

Frequently Asked Questions (FAQ)

What is ABB PPD513A0E-110110 3BHE039724R0E41 used for?

The is an AC 800PEC processing and control module used in ABB excitation and power conversion systems.

Is a PLC CPU?

No. It is a dedicated ABB power control and excitation processing module rather than a general-purpose PLC CPU.

Which systems use 3BHE039724R0E41?

Typical applications include:

• ABB AC 800PEC systems
• Generator excitation control systems
• Power conversion equipment
• Industrial electrical control systems

Can replace another ABB control module?

Only after confirming:

• Exact part number
• Hardware revision
• Software configuration
• Communication setup
• Application requirements

What are common failure symptoms?

Typical symptoms include:

• Excitation startup failure
• Controller communication alarms
• Loss of regulation commands
• Processor diagnostic faults
• Generator voltage instability

Does replacement require commissioning?

Yes. After installation, engineers should verify communication, controller diagnostics, excitation parameters, and generator operating response.

Is a refurbished ABB suitable for service?

A tested refurbished unit can be suitable when processor operation, communication functions, firmware compatibility, and application configuration are verified before installation.
