Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Model | PM783F |
| Order Number | 3BDH000364R0001 |
| Product Type | Central Processing Unit Module |
| Automation Platform | ABB Freelance / AC 700F |
| Processor Type | PowerQUICC |
| Clock Frequency | 96 MHz |
| Memory | 10 MB |
| Application RAM | 2 MB |
| Power Supply | 24 VDC |
| Power Consumption | Approx. 24 W |
| Ethernet Interface | 1 × RJ45 Ethernet, 10/100 Mbit/s |
| Serial Interfaces | 2 × RS-232C interfaces |
| Communication Support | Ethernet, Modbus, diagnostic communication |
| Task Capability | Multi-tasking with cyclic and priority tasks |
| Local I/O Expansion | Supports AC 700F I/O modules |
| Mounting | Freelance controller terminal base |
| Operating Temperature | 0°C to +60°C |
| Protection Rating | IP20 |
| Dimensions | Approx. 67.5 × 76 × 54 mm |
| Weight | Approx. 0.4 kg |
Product Introduction

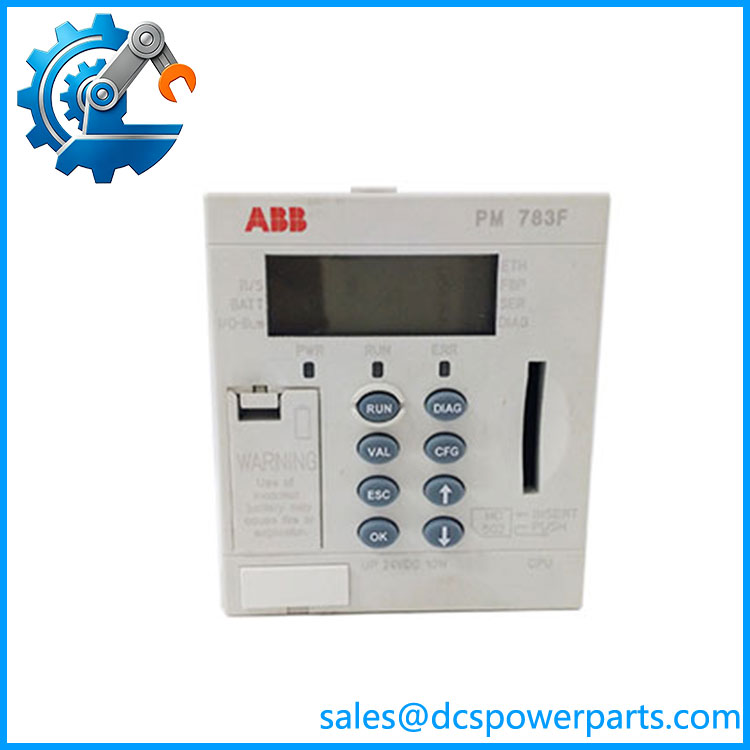

ABB PM783F 3BDH000364R0001 Overview
The ABB PM783F 3BDH000364R0001 is a central processing unit designed for ABB Freelance distributed control systems and the AC 700F controller family. It serves as the main execution unit of the automation station, running application logic, handling process calculations, managing I/O communication, and exchanging data with supervisory systems.
The ABB PM783F 3BDH000364R0001 combines PLC-style deterministic control with process automation capabilities required in compact DCS installations. The controller includes integrated Ethernet communication for connection with operator stations, engineering tools, and other system components. Two serial interfaces provide additional connectivity, including Modbus communication and service diagnostics.
The ABB PM783F is typically installed in small and medium-scale process control applications where a dedicated controller is required for reliable continuous operation. It supports distributed I/O expansion and communication modules, allowing engineers to build compact automation stations for utilities, machine control, process skids, and industrial facilities.
During replacement of an ABB PM783F 3BDH000364R0001, engineers should verify the Freelance software version, controller firmware, terminal base compatibility, application backup, and communication configuration. The CPU hardware alone does not contain the complete engineering database required for system restoration.
PM783F 3BDH000364R0001
Application Scenarios & Field Pitfalls (The Engineer’s Perspective)
Engineering Pain Point
A Freelance controller stops communicating, fails to execute logic, or shows unexpected application behavior after maintenance activities. The CPU may appear powered, but the issue could involve configuration, communication, or connected modules.
The troubleshooting path should include:
- CPU diagnostic LEDs and status display
- 24 VDC supply quality
- Ethernet communication status
- Application download verification
- I/O bus communication
- Firmware compatibility
The ABB 3BDH000364R0001 is the controller core, but faults in the surrounding architecture can create similar symptoms.
Typical Applications
Process Control Systems
Used for:
- Utility automation
- Skid-mounted process units
- Small production systems
- Local control stations
Water and Wastewater Plants
Applied for:
- Pump control
- Treatment process automation
- Remote I/O management
Manufacturing Equipment
Used for:
- Production line control
- Equipment sequencing
- Machine coordination
Energy Systems
Applied in:
- Auxiliary plant control
- Local power distribution automation
- Balance-of-plant systems
Technical Pitfalls to Avoid
1. Verify Freelance Version Compatibility
Before replacement, confirm:
- Freelance engineering software version
- CPU firmware revision
- Existing application project version
Older AC 700F installations may require specific software releases.
2. Backup Application Data
Before removing the CPU, save:
- Control application
- I/O configuration
- Communication parameters
- Controller settings
The stores execution resources, but the engineering project remains in the Freelance environment.
3. Check Terminal Base Compatibility
Verify:
- Correct terminal base model
- Power wiring
- Communication connections
- Module seating condition
The CPU requires the correct hardware mounting arrangement.
4. Confirm Communication Settings
Common commissioning issues include:
- Incorrect Ethernet configuration
- Lost Modbus parameters
- Incorrect controller addressing
- Missing fieldbus interface configuration
