Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Model | GVC704AE01 |
| Ordering Code | 5SHX1060H0001 |
| Part Number | 3BHB003230R0101 |
| Product Type | IGCT Gate Unit / Power Drive Board |
| Technology | Integrated Gate-Commutated Thyristor (IGCT) Control |
| Application | Medium Voltage Converter Systems |
| Compatible Platforms | ABB ACS1000 / ACS6000 series converters |
| Main Function | IGCT triggering, monitoring, and protection control |
| Semiconductor Interface | IGCT power module interface |
| Signal Interface | Fiber-optic control and feedback interface |
| Auxiliary Supply | 24 VDC typical |
| Cooling Requirement | Converter cabinet thermal management |
| Installation | Converter power stack assembly |
| Operating Environment | Industrial power electronics cabinet |
| Application Category | MV drives and power conversion |
Product Introduction
ABB GVC704AE01 5SHX1060H0001 3BHB003230R0101 Overview

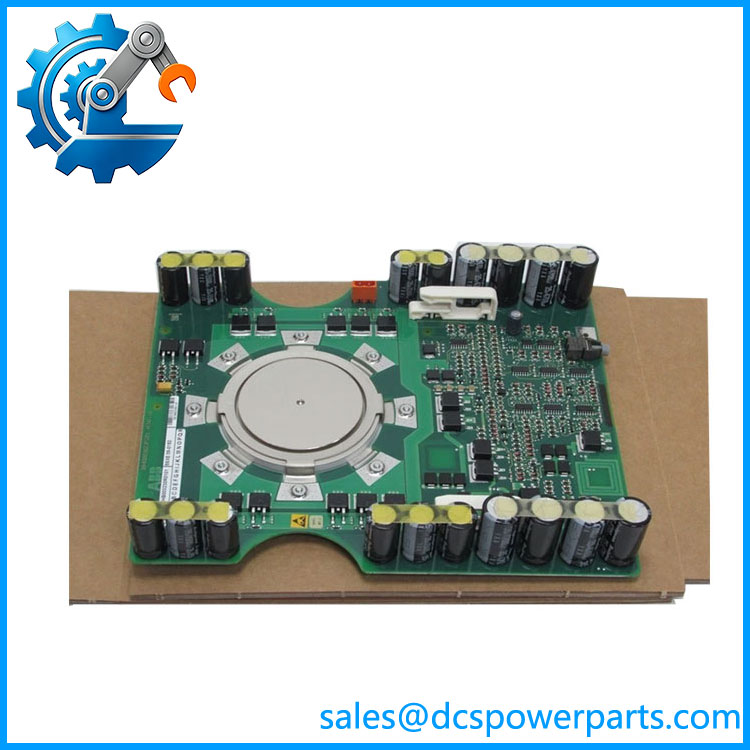

The ABB GVC704AE01 5SHX1060H0001 3BHB003230R0101 is an IGCT gate control and power drive board designed for ABB medium-voltage converter systems. It serves as the interface between the converter control electronics and the IGCT power semiconductor module, managing the precise switching signals required for high-power energy conversion.
The ABB GVC704AE01 operates as a critical component inside ABB ACS-series medium-voltage drives. Unlike conventional low-voltage drive control boards, this gate unit is designed for high-energy switching environments where timing accuracy, electrical isolation, and fault response are essential for protecting expensive semiconductor devices.
The ABB 5SHX1060H0001 3BHB003230R0101 works together with compatible IGCT modules to control turn-on and turn-off operations. The gate unit receives commands from the converter control system and generates the required gate pulses while monitoring operating conditions and returning diagnostic information to the drive controller.
The ABB GVC704AE01 is commonly installed in high-power industrial drive systems used for large motors, compressors, pumps, fans, conveyors, and other rotating equipment. In these applications, the gate unit directly influences converter switching performance and system availability.
When replacing an ABB GVC704AE01 5SHX1060H0001, engineers should verify the complete converter model, installed IGCT module type, fiber-optic connections, gate unit revision, power stack configuration, and drive parameter settings. A physically matching replacement does not guarantee correct operation unless the complete power stage configuration is compatible.
5SHX1060H0001
Application Scenarios & Field Considerations
Engineering Pain Point
A medium-voltage drive experiences:
- IGCT firing faults
- Converter overcurrent trips
- DC link protection alarms
- Phase imbalance faults
- Loss of motor control
The gate unit may be involved, but possible causes also include:
- Damaged IGCT devices
- Fiber communication faults
- Cooling problems
- Snubber circuit issues
- Converter control failures
Recommended troubleshooting steps:
- Check gate unit diagnostic signals
- Inspect fiber-optic connections
- Verify auxiliary power supply
- Review converter fault history
- Test associated IGCT modules
- Inspect power stack connections
The controls the switching interface, but reliable converter operation depends on the complete power electronics assembly.
Typical Applications
Medium Voltage Variable Frequency Drives
Used for:
- Large motor speed control
- Pump and compressor applications
- Industrial process drives
Oil & Gas Systems
Applied for:
- Pipeline compressors
- Large rotating machinery
- Process plant drives
Mining and Metals
Used for:
- Mill drives
- Heavy-duty conveyors
- High-power motor systems
Power Conversion Equipment
Applied for:
- Energy conversion systems
- Industrial power electronics
- High-power electrical control systems
Technical Pitfalls to Avoid
1. Verify IGCT Compatibility
Before replacement, confirm:
- IGCT module model
- Gate unit matching
- Converter power rating
- Hardware revision
Different IGCT assemblies may require different gate drive characteristics.
2. Inspect Fiber-Optic Connections
Check:
- Fiber cleanliness
- Connector locking
- Signal transmission quality
- Communication feedback
Fiber issues can appear as semiconductor failures.
3. Check Mechanical Installation
Verify:
- Power stack mounting
- Connector alignment
- Thermal interface condition
- Electrical insulation
Improper installation can create repeated converter faults.
4. Review Converter Parameters
Confirm:
- Drive configuration
- Control software compatibility
- Protection settings
- Commissioning data
