ABB GDB020AE | HIEE300590R1 UNITROL Excitation Control Board | Generator AVR Replacement

Description

ABB GDB020AE HIEE300590R1 | UNITROL Excitation Control Board | Generator Excitation System

Key Technical Specifications

Specification accuracy note

Some secondary listings describe HIEE300590R1 / GDB020AE as a “power module” and publish a 380–480 VAC input range. That information is not sufficiently corroborated for the exact GDB020AE board, and the same part is separately identified in multiple records as a UNITROL excitation control board. I would not publish 380–480 VAC as a confirmed specification without the original ABB drawing or nameplate.

Product Introduction

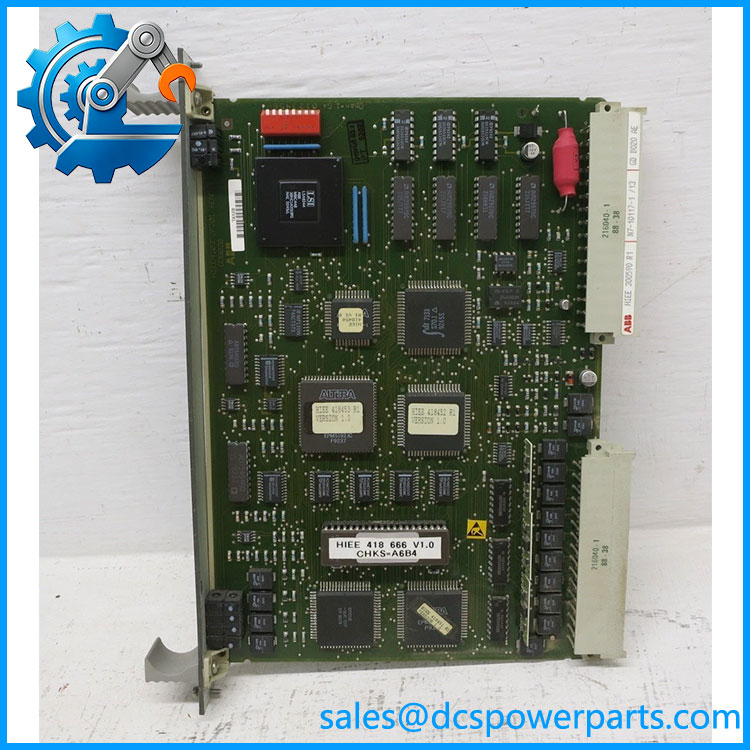

The ABB GDB020AE HIEE300590R1 is a specialized electronic board associated with ABB UNITROL generator excitation equipment. Its role is within the excitation-control architecture used to regulate generator excitation and coordinate the associated control circuitry. It is therefore a system-specific component rather than a conventional PLC CPU, general-purpose power supply, or standard analog I/O card.

The ABB GDB020AE is particularly relevant when maintaining older UNITROL installations where the original excitation-control hardware remains in service. The repeated association of with both HIEE300590R1 and HIEE4130372P201 is useful for cross-identification, but the complete board marking and installed UNITROL configuration should still be checked before approving a replacement.

GDB021BE01 HIEE300766R0001

Engineering Pain Point

The main field risk is misclassifying the board from reseller descriptions. Several commercial records call a power module, while other records identify it as a UNITROL excitation PLC/control board. That disagreement is enough reason to avoid assigning an AC input range, DC output rating, or power-conversion function without the actual ABB system documentation.

Typical Applications

• Generator excitation control — Used within ABB UNITROL excitation equipment associated with synchronous generators.
• Automatic voltage regulation — Supports the electronic control architecture responsible for generator excitation regulation.
• Static excitation systems — Applicable to installed UNITROL systems where this board is specified by the original equipment configuration.
• Power-generation maintenance — Used as a replacement electronic assembly when troubleshooting aging excitation-control hardware.

Technical Pitfalls to Avoid

1. Do not treat as a generic power supply. The available evidence more consistently associates it with UNITROL excitation control/interface functions.
2. Verify the complete identification. Check for , HIEE300590R1, and any additional board-level marking. HIEE4130372P201 also appears in records associated with this part.
3. Do not assume the published 380–480 VAC figure is correct for the board itself. That rating appears on reseller listings, but it is not adequately supported by a reliable technical document for the exact .
4. Check the UNITROL cabinet architecture. Excitation control boards operate as part of a larger system containing power conversion, measurement, firing, protection, and control hardware. Physical fit alone does not establish compatibility.
5. Record the existing excitation settings before replacement. AVR parameters, voltage sensing, field-current limits, stabilizing functions, protection thresholds, and control configuration should be preserved before removing the original board.
6. Inspect the power stage when the board has failed. If the original failure followed a field overcurrent, converter fault, surge, or abnormal excitation event, replacing only the control board may not address the underlying problem.

Related Products

• ABB GDB021BE01 HIEE300766R0001 — Gate Control Unit documented in UNITROL P systems; its function is associated with power-semiconductor firing and is distinct from .
• ABB PP C322 BE1 HIEE300900R0001 — UNITROL P processing unit documented as part of the excitation-system control architecture.
• ABB UA C326 AE1 HIEE401481R0001 — Combined I/O module associated with UNITROL P systems.
• ABB KU C321 AE1 HIEE300698R0001 — Power Pack used within the UNITROL P architecture.
• ABB UNS 3670 V2 HIEE205011R0002 — Converter electronics associated with UNITROL P excitation equipment.
• ABB UNC 4672a-P V1 HIEE205012R0001 — Measuring interface used in the UNITROL P system.
• ABB UNS 0017a-P HIEE305106R0001 — Firing Unit listed separately in the UNITROL P architecture.
• ABB UNITROL — Generator excitation platform family in which GDB-series boards are used; exact compatibility depends on the specific UNITROL generation and cabinet configuration.

Procurement and Replacement Note

For an ABB replacement, verify all of the following before ordering:

•
•
• Any HIEE4130372P201 marking
• Complete UNITROL model and generation
• Board revision and artwork number
• Cabinet position
• Associated power-converter and firing hardware
• Generator excitation configuration
• Existing firmware/control configuration where applicable

The evidence supports identifying as an ABB UNITROL-related excitation control/interface board, with HIEE4130372P201 appearing as an associated identifier. It does not support confidently publishing standalone 380–480 VAC input, DC output, current, or thermal ratings. For procurement and field replacement, the installed ABB schematic and board nameplate should take precedence over generic reseller specifications.
