Description
Product Overview

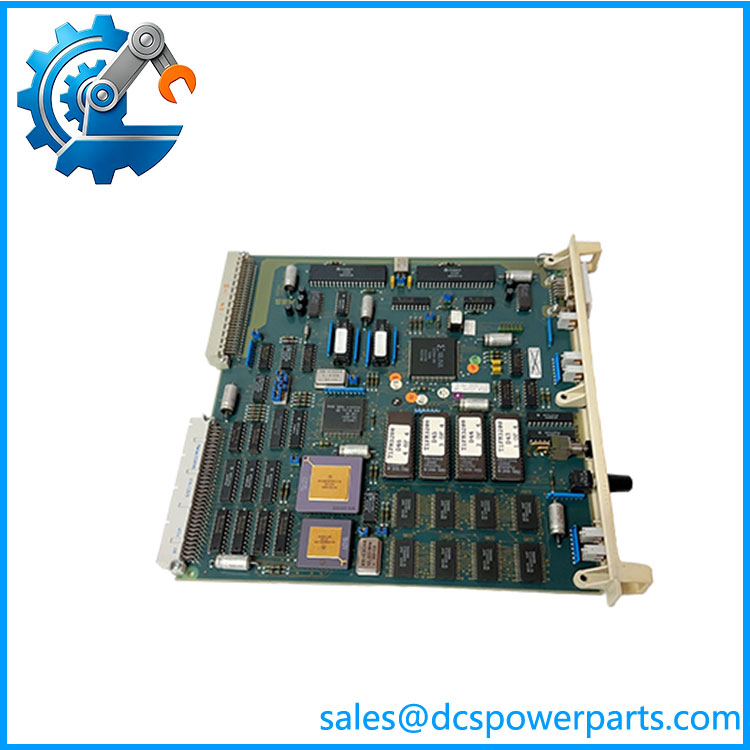

The ABB DSCA190V 57310001-PK is a communication processor module designed for ABB Advant Master automation systems. This module provides dedicated communication processing functions within distributed control system architectures, managing data exchange between control nodes, processor units, and connected system devices. The ABB DSCA190V 57310001-PK is part of the Advant OCS hardware family, a platform widely used in industrial process control applications where long-term system stability and compatibility with existing installations are essential.
Within the ABB Advant Master environment, the ABB DSCA190V 57310001-PK operates as a communication-focused hardware component that supports information transfer between system elements. It is typically installed as part of a larger controller configuration, working alongside processor units, memory modules, connection units, and other Advant-series assemblies. The module is identified as a communication processor, with ABB part number 57310001-PK and DSCA-190V type designation.
For maintenance teams supporting installed ABB DCS systems, the ABB DSCA190V 57310001-PK represents a practical replacement option when communication functions become unavailable or when spare inventory is required for lifecycle support. To be completely transparent, compatibility checks are important because older Advant installations may contain hardware revisions, software configurations, and communication settings that vary from one plant to another.
The module’s value comes from maintaining existing ABB control infrastructure without unnecessary changes to proven system designs. Before installation, engineers should verify rack location, system configuration, firmware compatibility, and communication parameters. Proper inspection and functional testing remain recommended steps before returning the module to an operational control environment.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | ABB DSCA190V 57310001-PK |
| Manufacturer | ABB |
| Product Type | Communication Processor Module |
| System Platform | ABB Advant Master / Advant OCS |
| Type Designation | DSCA 190V |
| Ordering Number | 57310001-PK |
| Communication Function | Industrial DCS data processing and communication |
| Communication System | ABB Advant communication architecture |
| Installation | Advant control system rack |
| Weight | Approx. 0.452 kg |
| Application | Process automation and distributed control systems |
| Replacement Role | Communication module maintenance spare |
DSCA190V
Related Products
- ABB DSPC172H 57310001-MP — Advant Master processor unit. Works as a main processing component while the handles communication-related functions.
- ABB DSMB179 57360001-MS — Memory module for Advant Master systems. Supports storage functions within compatible controller configurations.
- ABB DSCS140 57520001-EV — MB300 communication module. Provides communication interface capability for Advant control environments with different network requirements.
- ABB DSCA114 57510001-AA — Communication board from the DSCA family. Used for different communication applications within ABB legacy control systems.
- ABB DSPB120 57340001-T — Processor display module. Supports operator display-related functions in Advant Master installations.
- ABB DSTX170 57160001-AK — Connection unit for Advant systems. Provides interface and connection support between system modules.
- ABB DSSB120 48980002-A — Battery unit for RAM memory retention. Supports memory preservation functions in compatible ABB controller assemblies.
Frequently Asked Questions (FAQ)
1. What system is the ABB 57310001-PK used in?
The ABB 57310001-PK is used in ABB Advant Master and Advant OCS control environments as a communication processor module. It supports communication processing functions within distributed control system architectures.
2. Can I hot-swap the ABB 57310001-PK?
Hot replacement depends on the specific Advant system configuration and plant operating procedure.
Recommended approach:
- Verify whether the installed rack supports powered replacement.
- Save current system configuration information.
- Place the system into an approved maintenance condition.
- Replace and verify communication operation.
Many legacy DCS installations require controlled shutdown procedures.
3. Does the ABB 57310001-PK support firmware v3.1?
Firmware compatibility depends on the complete ABB Advant system configuration. The module part number alone does not confirm software support. Engineers should verify controller versions, communication settings, and installed application software before replacement.
4. Will replacing the ABB erase my control logic?
The is a communication processor module rather than the primary application logic storage device. Control programs are normally maintained in processor and memory components within the Advant system.
Before replacement:
- Record communication parameters.
- Verify controller backups.
- Confirm system recognition after installation.
5. How can I verify a New Surplus ABB 57310001-PK?
A proper verification process includes:
- Checking ABB identification labels and part numbers.
- Confirming the designation.
- Inspecting connectors and board condition.
- Performing functional communication testing before field installation.
6. Is the ABB suitable for an ABB DCS upgrade project?
It is mainly used for maintaining existing Advant Master installations. For larger modernization projects, engineers should evaluate processor capacity, communication requirements, software migration options, and future maintenance needs.
7. What information is required before replacing an ABB 57310001-PK?
Provide:
- Existing ABB Advant system model
- Current rack configuration
- Installed communication modules
- Software and firmware information
- Application network details
This information helps confirm hardware compatibility and prevents configuration issues during replacement.
