ABB DSBC176 3BSE019216R1 | ABB DCS Bus Extension Interface Board, Factory Tested

Description

Key Technical Specifications

Product Introduction

ABB DSBC176 3BSE019216R1 Overview

The ABB DSBC176 3BSE019216R1 is a bus extender board used in ABB Advant OCS and S100 I/O systems. It provides the communication extension path required to connect distributed S100 I/O racks with the controller-side bus architecture, allowing I/O cabinets to be installed separately from the main controller cabinet.

The ABB DSBC176 3BSE019216R1 is commonly maintained in legacy Advant Controller 450 installations where existing I/O cabinets remain operational. It is a supporting communication component, not a signal processing module, and its condition directly affects I/O availability across extended rack installations.

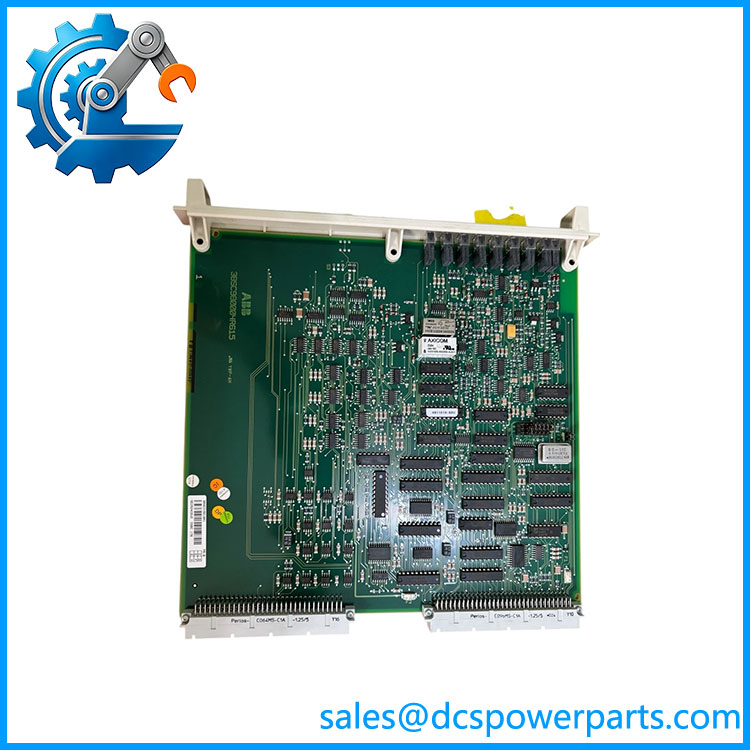

DSBC176 3BSE019216R1

Application Scenarios & Field Pitfalls (The Engineer’s Perspective)

Engineering Pain Point

A remote I/O cabinet suddenly disappears from the controller database. Operators lose multiple process signals at once. The first assumption is often a failed I/O module, but the actual issue may be the bus extension path between cabinets.

The DSBC176 sits in that communication chain. When it fails, an entire I/O section can become unavailable even though individual input and output cards remain healthy.

Typical Applications

• Power Generation – Advant Controller 450 systems with separated control and I/O cabinets for turbine auxiliary systems and plant controls.
• Oil & Gas Processing – Distributed I/O installations for process measurement, valve control, and equipment monitoring.
• Chemical Plants – Large DCS cabinets where field wiring distance requires remote I/O placement.
• Pulp and Paper Industry – Legacy ABB Advant systems controlling continuous production processes with distributed instrumentation.

Technical Pitfalls to Avoid

1. Verify Bus Extension Topology

   The is part of a complete I/O bus extension arrangement. Confirm cable routing, termination placement, and cabinet order before replacing the board.

2. Inspect Connection Cables and Termination Units

   Communication faults are not always caused by the extender board. Check ribbon cables, connectors, and the DSTC176 termination unit before removing hardware.

3. Confirm System Version Compatibility

   Advant OCS installations have different hardware generations. Verify the controller version, I/O configuration, and engineering database before commissioning.

Related Products

• ABB DSBC174
  Earlier I/O bus extender board variant. Used in similar cabinet extension applications but may have different redundancy and configuration characteristics.
• ABB DSTC176
  Bus termination unit used with installations. Required at the end of certain I/O bus extension chains.
• ABB DSBC176K01 3BSE019956R1
  Connection kit for I/O bus extension installations. Provides the required interface accessories for specific cabinet configurations.
• ABB DSBC176K05 3BSE019958R1
  Alternative connection kit option for different I/O installation layouts.
• ABB DSRF197 3BSE019297R1
  I/O equipment frame assembly. Provides the rack structure where I/O modules and related communication components are installed.
• ABB DSAI146 3BSE007949R1
  Analog input module for I/O systems. Handles process measurement signals after the bus communication path is established.
• ABB DSAO120A 3BSE018293R1
  Analog output module for I/O systems. Used for actuator control signals in process loops.
• ABB PM511V16 3BSE011180R1
  Advant controller processor module associated with older Advant architectures. Works with I/O communication structures.
