Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | DSAI146 |
| ABB Order Number | 3BSE007949R1 |
| Manufacturer | ABB |
| Product Family | Advant S100 I/O |
| Product Type | Analog Input Unit |
| Signal Type | RTD Temperature Input |
| Sensor Type | Pt100 |
| Number of Channels | 31 channels + reference channel |
| Wiring Method | 3-wire RTD connection |
| Input Range | Approx. -100 to +320°C / -200 to +640°C |
| Resolution | 12-bit + sign |
| Connection Unit | DSTA 145 |
| Cable Type | DSTK 229SL3 |
| Power Dissipation | Approx. 3.8 W |
| Mounting | ABB Advant S100 I/O rack |
| Communication | Advant system I/O bus |
| Application | Temperature monitoring and process measurement |
| Operating Environment | Industrial control cabinet |
Product Introduction

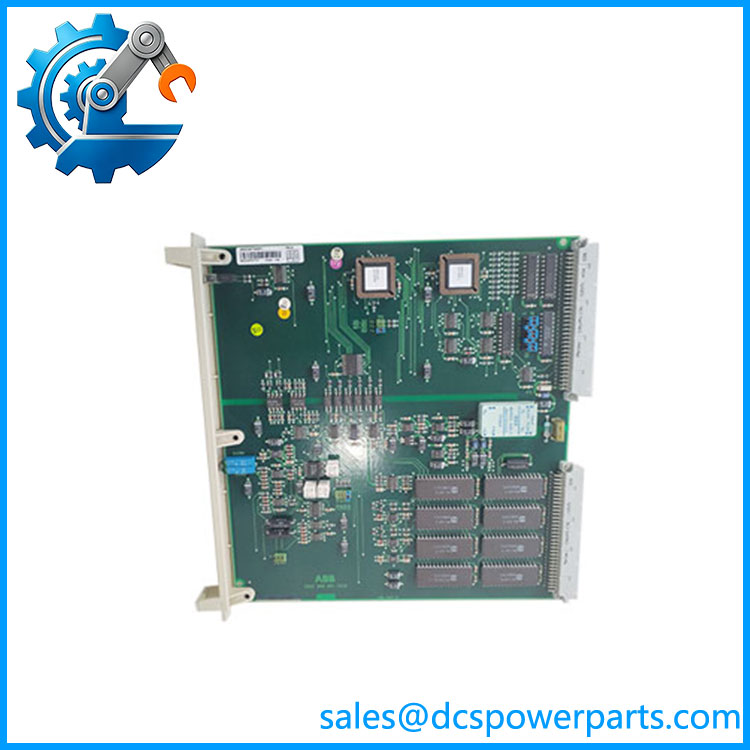

ABB DSAI146 3BSE007949R1 Product Introduction
ABB DSAI146 3BSE007949R1 is a high-density RTD analog input module designed for ABB Advant S100 I/O systems. The module is specifically developed for temperature acquisition applications, accepting Pt100 three-wire resistance signals from field sensors and transferring processed measurement data into the ABB Advant control system.
The ABB DSAI146 3BSE007949R1 provides 31 independent Pt100 input channels, making it suitable for plants where multiple temperature points must be monitored from a single I/O station. Typical applications include process temperature measurement, equipment monitoring, and auxiliary system supervision.
The ABB DSAI146 3BSE007949R1 is not a standalone temperature controller. It functions as part of a complete Advant S100 I/O architecture, working together with connection units, field wiring assemblies, controllers, and engineering configuration databases. Engineers replacing this module should confirm the complete signal chain before commissioning.
DSAI146-3BSE007949R1
Application Scenarios & Field Pitfalls (The Engineer’s Perspective)
Engineering Pain Point
A process plant begins receiving inconsistent temperature readings from multiple field points. Operators suspect damaged RTD sensors, but troubleshooting reveals the issue may come from the input module, connection unit, or field cable resistance.
Temperature input modules directly influence process decisions. Incorrect sensor configuration, wiring resistance, or channel scaling errors can create inaccurate readings even when the field instruments are functioning correctly.
Typical Applications
Power Generation
Used for monitoring:
- Boiler auxiliary temperatures
- Turbine bearing temperatures
- Generator cooling systems
- Feedwater and steam system measurements
Oil & Gas
Applied for:
- Compressor temperature monitoring
- Heater and furnace measurement
- Process skid temperature acquisition
- Equipment condition monitoring
Chemical Processing
Used in:
- Reactor temperature monitoring
- Distillation systems
- Storage and process vessel supervision
Industrial Manufacturing
Applied in:
- Furnace control systems
- Production equipment monitoring
- Thermal process applications
Technical Pitfalls to Avoid
1. Confirm Pt100 Wiring Method
The DSAI146 is designed for Pt100 three-wire inputs. Incorrect two-wire or four-wire connections can introduce measurement errors.
2. Check Connection Unit Compatibility
The module is designed to work with specific ABB connection hardware, including the DSTA 145 interface. Incorrect termination assemblies may prevent proper signal acquisition.
3. Verify Engineering Configuration
When replacing an installed module, confirm:
- Channel allocation
- Temperature scaling
- Sensor type settings
- Alarm limits
- Controller database mapping
4. Inspect Field Cable Resistance
Long RTD cable runs can introduce resistance errors. Check cable condition and terminal connections before replacing the module.
