Description

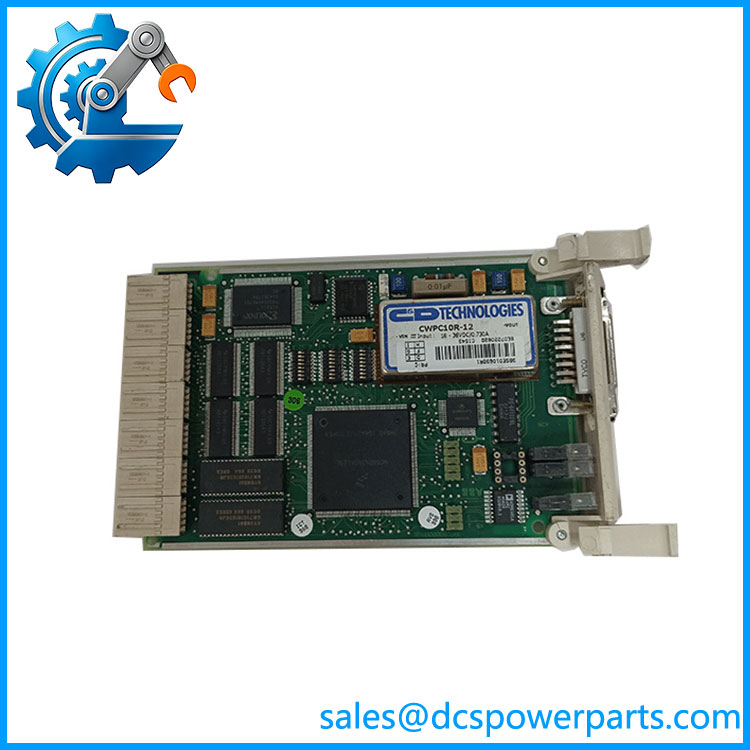

ABB CI543 3BSE010699R1 GCOM Communication Interface
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| ABB Type Designation | CI543 |
| Product ID | 3BSE010699R1 |
| Product Type | Communication Module |
| Catalog Description | GCOM Communication Interface |
| Communication System | GCOM |
| Functional Role | GCOM bus controller |
| Host Architecture | ABB Advant OCS / Advant Controller |
| Transceiver | MB300K01 |
| 5 m Cable | TK576V050 / 3BSC950055R1 |
| 15 m Cable | TK576V115 / 3BSC950056R1 |
| Net Dimensions | 259 × 125 × 10 mm |
| Net Weight | Approximately 0.17 kg |
ABB’s product data identifies 3BSE010699R1 as the GCOM Communication Interface and classifies it as a communication module. ABB Advant Controller documentation specifically describes as the bus controller for GCOM connection to one GCOM bus cable.
Product Introduction
The ABB 3BSE010699R1 is a GCOM communication interface used in ABB Advant OCS control architectures. Its primary role is to provide the controller-side bus interface for a GCOM network, making it part of the communication infrastructure rather than a PLC CPU, analog I/O module, or generic serial gateway. ABB documentation lists the together with the MB300K01 transceiver set and dedicated TK576 communication cables for the physical GCOM connection.
For plants maintaining older Advant installations, the ABB 3BSE010699R1 is a system-specific spare. The communication interface itself is only one element of the GCOM link; the transceiver and cable arrangement must also match the installed architecture. This distinction matters when diagnosing communication loss because replacing the alone will not correct a defective transceiver, damaged cable, or configuration problem elsewhere on the bus.
CI543
Application Scenarios & Field Pitfalls — The Engineer’s Perspective
Engineering Pain Point
A GCOM communication failure in an older Advant controller can initially look like a controller or software problem when the actual fault is located in the bus interface, transceiver, cable, or physical communication path. The should therefore be treated as one component in a complete GCOM communication chain rather than as a standalone protocol converter.
Typical Applications
- ABB Advant Controller systems — controller-side GCOM bus connection.
- Advant OCS installations — legacy distributed control communication infrastructure.
- Advant Controller 410/450 systems — documented GCOM bus-controller applications.
- Legacy DCS maintenance — replacement of failed or aging GCOM interface hardware.
Technical Pitfalls
1. Do not confuse GCOM with modern Ethernet protocols.
The is specifically documented as a GCOM bus controller. Reseller pages sometimes assign generic Modbus, PROFIBUS, RS-232, RS-485, or Ethernet capabilities to the part without adequate documentation. Those claims should not be used as procurement specifications. ABB separately identifies CI541V1 as its PROFIBUS-DP interface and CI532/CI534 variants for other communication interfaces.
2. The transceiver is a separate component.
ABB documentation specifies the MB300K01 transceiver set for one GCOM connection. The does not replace the transceiver.
3. Cable length should match the installed configuration.
ABB lists TK576V050 as the 5 m cable and TK576V115 as the 15 m cable for connecting the to the transceiver unit.
4. Do not substitute a visually similar CI-series interface.
The Advant communication family contains CI531, CI532, CI534, CI541, CI545, CI547, CI570 and other interfaces with different functions. ABB’s own spare-parts documentation distinguishes these interfaces by communication system and application.
5. Check the controller architecture before replacement.
The belongs to the older Advant OCS/Advant Controller ecosystem. Confirm the controller model, rack position, GCOM network arrangement, transceiver type and installed software configuration before ordering a replacement.
6. Legacy status affects procurement.
ABB spare-parts documentation places among Advant Controller parts, while other current listings identify 3BSE010699R1 as discontinued. For a plant with long remaining service requirements, it is worth establishing whether a tested spare, repair option, or approved migration path is available before the existing stock is exhausted.
Related Products
- ABB CI531 3BSE003825R1 — RS-232-C interface; different communication function.
- ABB CI532V01 3BSE003826R1 — RCOM interface.
- ABB CI532V02 3BSE003827R1 — MODBUS interface.
- ABB CI534V02 3BSE010700R1 — MODBUS interface.
- ABB CI541V1 3BSE014666R1 — PROFIBUS-DP interface.
- ABB CI545V01 3BUP001190R1 — AccuRay 1190 Ethernet interface.
- ABB CI547 3BNP004429R1 — MB300/MB300E interface including slave CPU.
- ABB CI570 3BSE001440R1 — MasterFieldbus interface.
- ABB MB300K01 5730030-VN — GCOM transceiver set used with .
- ABB TK576V050 3BSC950055R1 — 5 m -to-transceiver cable.
Procurement Note
For a replacement ABB 3BSE010699R1, specify the complete part number and confirm that the target system actually uses GCOM. If the communication fault involves the complete physical link, check the MB300K01 transceiver and TK576 cable at the same time. For used or repaired stock, request clear photographs of the identification label, connector area and board condition; on legacy Advant hardware, revision and physical condition can matter as much as the basic designation.
