Description
ABB 61513523 / 5STP3322L0001
Product Introduction
The ABB 61513523 5STP3322L0001 is a high-power ABB thyristor assembly used in industrial power-conversion equipment. The 5STP3322L0001 device is identified as an ABB thyristor/SCR, with published ratings of 2,200 V and 3,300 A. Its intended role is fundamentally different from a PLC, DCS I/O module, or control PCB: this is a high-current semiconductor switching device used in the power stage of controlled rectifiers and other high-power converter circuits. Available ABB-part listings consistently place 5STP3322L0001 within the ABB 5STP thyristor family.
The separate 61513523 reference appears in trade documentation as the article associated with a “5STP3322L0001 MD kit.” This is useful for procurement because an equipment BOM may identify the component by 61513523 while the semiconductor itself is marked 5STP3322L0001. The two references should therefore be retained together when requesting a replacement.
The ABB 5STP3322L0001 belongs to a class of high-power phase-control thyristors designed for applications where substantial electrical power must be controlled through semiconductor switching. Its disc-type pressure-contact construction is characteristic of high-power thyristor assemblies, where correct mechanical clamping, thermal interface conditions, electrical polarity, and gate-circuit connections are critical to reliable operation. A 3,300 A rating should not be interpreted as a universal permissible operating current in every converter; actual allowable current depends on cooling, firing angle, duty cycle, junction temperature, commutation conditions, and the manufacturer’s application data.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | ABB |
| ABB Article / Kit Reference | 61513523 |
| Device Model | 5STP3322L0001 |
| Product Type | Phase-control thyristor / SCR power semiconductor |
| Semiconductor Technology | Thyristor |
| Voltage Rating | 2,200 V |
| Current Rating | 3,300 A |
| Construction | High-power disc / pressure-contact style |
| Primary Function | Controlled high-power rectification and AC/DC power conversion |
| Typical Application | Industrial converter and drive power stages |
| Mounting | Pressure-contact heatsink assembly |
| Gate Control | External gate firing circuit |
| Cooling | Application-dependent heatsink/cooling system |
| Communication | None |
| PLC/DCS Interface | None |
| Operating Temperature | Application and thermal design dependent |
| Protection Rating | Not applicable as an electronic enclosure rating |
| Exact Thermal Parameters | Must be confirmed from the applicable ABB device documentation |
The 2,200 V / 3,300 A ratings are directly supported by current product documentation for the exact 5STP3322L0001 model.

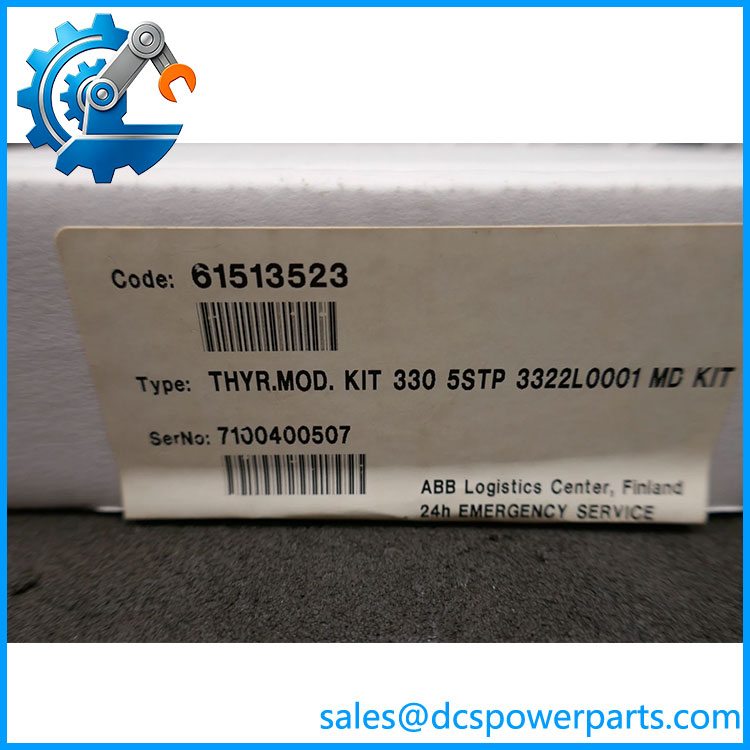

ABB 61513523 5STP3322L0001MD
Main Features and Engineering Considerations
High-current power switching
The ABB 61513523 5STP3322L0001 is intended for very high-power semiconductor applications. At this current class, the device is normally part of a larger converter assembly rather than used as an isolated component. The surrounding circuit determines how the thyristor is fired, cooled, protected, and electrically stressed.
Phase-control operation
A phase-control SCR conducts after its gate is triggered and remains conducting until the circuit current falls below the holding condition. This makes the device suitable for controlled rectification, large DC drives, industrial converters, and other applications requiring controlled power transfer.
Thermal design is critical
A 3,300 A rating does not mean the device can continuously carry 3,300 A under arbitrary conditions. Engineers must evaluate RMS current, average current, overload duration, conduction angle, heat-sink thermal resistance, cooling-air or liquid-cooling conditions, and junction temperature.
Pressure-contact mounting
High-power disc thyristors rely on controlled mechanical pressure to establish the electrical and thermal interfaces. Incorrect mounting pressure, uneven heatsink surfaces, contamination, or inappropriate thermal-interface materials can cause excessive junction temperature or uneven current distribution.
Gate-circuit compatibility
The replacement device must match the original gate-drive circuit. Gate trigger voltage/current requirements, pulse characteristics, isolation arrangement, and gate-cathode wiring should be checked against the original converter design. Do not assume that another 2,200 V / 3,300 A SCR is automatically interchangeable.
Converter-level protection
The thyristor normally works with semiconductor fuses, snubber networks, overvoltage protection, gate protection, current limiting, and appropriate cooling. If an original device has failed short-circuit, replacing the SCR without investigating the firing circuit and converter protection can result in another immediate failure.
Procurement identity
For purchasing purposes, retain both identifiers: 61513523 and 5STP3322L0001. The exact model number is particularly important because ABB’s 5STP family contains many visually similar high-power thyristors with different voltage/current ratings. The exact 5STP3322L0001 model is repeatedly listed in ABB thyristor catalogs and industrial spare-part references.
Application Scenarios
- High-power industrial rectifiers
- DC drive power converters
- Large industrial AC/DC converter systems
- High-current controlled rectifier bridges
- Power conversion equipment
- ABB legacy drive systems
- Industrial DC transmission and converter equipment
- High-power excitation and electrical conversion systems
- Replacement of failed ABB 5STP-series thyristors
Engineer’s Guide: Field Pitfalls
1. Do not treat the 3,300 A figure as a simple continuous-load rating.
Converter topology, cooling, conduction angle, and thermal conditions determine the permissible operating point.
2. Match the voltage rating exactly.
The 2,200 V rating is a critical semiconductor parameter. Do not replace it with a visually similar 1,800 V or 2,000 V device without an engineering review.
3. Verify the mechanical stack.
Disc thyristors depend on correct clamping force and heatsink geometry. Mechanical installation is part of the electrical design.
4. Check the gate circuit.
Confirm gate wiring and firing-pulse characteristics before commissioning a replacement.
5. Investigate why the original SCR failed.
A failed thyristor can be a consequence of overcurrent, commutation failure, excessive dv/dt, cooling problems, gate-driver faults, or semiconductor-fuse issues.
6. Do not substitute based only on current and voltage.
Recovery behavior, gate characteristics, thermal parameters, package dimensions, mounting requirements, and converter-specific design data can all affect interchangeability.
7. Keep the article number with the device number.
If the equipment BOM specifies 61513523, while the physical semiconductor is marked 5STP3322L0001, record both references in the procurement documentation.
Frequently Asked Questions
What is ABB 5STP3322L0001?
It is a high-power ABB phase-control thyristor/SCR used in industrial power-conversion equipment.
What are its published voltage and current ratings?
The exact model is listed at 2,200 V and 3,300 A.
What is ABB 61513523?
Available trade documentation associates 61513523 with the 5STP3322L0001 MD kit, making it an important ABB article/reference number for procurement.
Is this a PLC or DCS module?
No. It is a power semiconductor used in the power stage of high-power electrical conversion equipment.
Can another 3,300 A thyristor replace it?
Not automatically. Voltage rating, gate characteristics, thermal behavior, mechanical dimensions, clamping requirements, and converter topology must all be checked.
Where is this type of device commonly used?
Typical applications include large controlled rectifiers, industrial DC drives, high-power converters, and other power-electronics systems.
Procurement Note
When sourcing ABB 61513523 / 5STP3322L0001, require the supplier to identify the device by the complete model number rather than by the generic description “ABB thyristor.” Confirm the marking on the physical device, especially 5STP3322L0001, and retain 61513523 as the associated article/kit reference. For a safety-critical or high-power converter, incoming inspection should include visual condition, part-number verification, package dimensions, gate-terminal condition, and appropriate semiconductor testing before installation.
