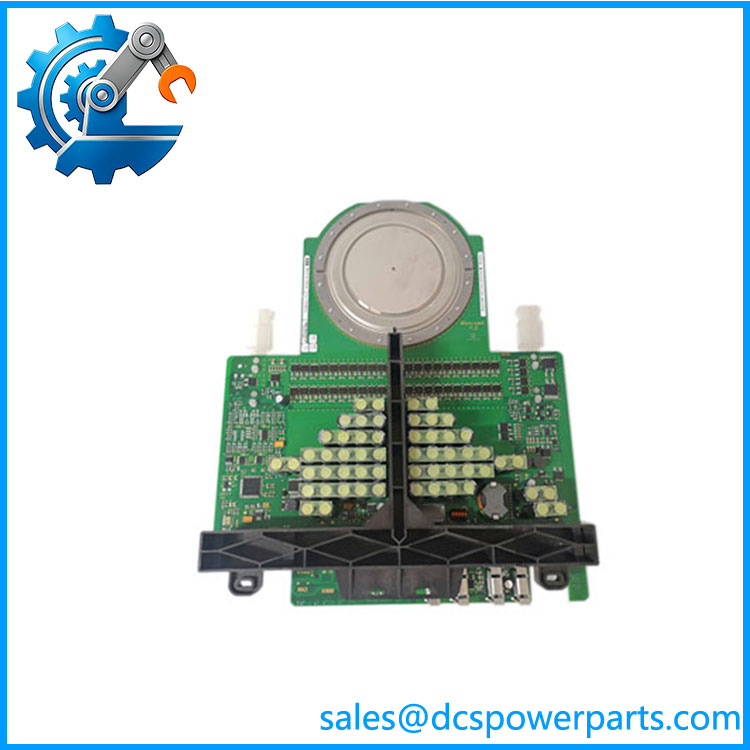

ABB 5SHY3545L0016 3BHB020720R0002 | 4500V IGCT Module

Description

Key Technical Specifications

ABB’s published product-detail information confirms the 4,500 V / 91 mm designation, 2.8 kg net weight, spare-parts classification, and IGCT module description.

Important: Do not use third-party claims of a specific continuous current, switching frequency, or cooling method as a substitute for the ABB application documentation. The semiconductor rating is only one part of the complete converter design.

Application Scenarios & Pain Points

A high-power IGCT does not operate as an isolated component. Its thermal interface, gate-drive circuit, clamping arrangement, snubber network, mechanical pressure, and control timing all influence whether the replacement survives commissioning.

• Medium-voltage drives: Used as a high-power switching element in compatible ABB converter architectures, particularly where high voltage and high current must be handled within a compact power stack.
• PCS6000 power converters: ABB’s service documentation specifically lists the 5SHY3545L0016 as an older-type 4,500 V, 91 mm IGCT used in the PCS6000 product family.
• Industrial high-power conversion: Suitable for converter sections where IGCT technology is used for controlled high-power switching rather than conventional low-voltage transistor switching.
• Legacy equipment repair: Particularly relevant when maintaining older ABB converter installations and matching the original semiconductor rather than redesigning the complete power stack.

Field note: Replacing an IGCT is not the same job as replacing a PLC card. Contact pressure and thermal interfaces deserve attention. On a press-pack device, uneven mechanical loading or a compromised cooling interface can become a silicon failure after the equipment reaches full load—even when the initial startup looks normal.

5SHY3545L0016

Related Products

• 5SHY4045L0006 / 3BHB030310R0001 — ABB’s newer-generation 4,500 V, 91 mm IGCT identified in ABB’s PCS6000 service documentation as a one-to-one replacement for the older 5SHY3545L0016 in that application. Verify the exact converter revision before substitution.
• GVC736BE101 — Associated high-potential IGCT gate-drive component found in compatible ABB power-stack configurations. It controls the IGCT rather than replacing the semiconductor itself.
• 3BHE019719R0101 — Related low-potential control/interface component used with applicable IGCT gate-drive arrangements. Check the complete power-stack BOM before ordering.
• 5SHY3545L0014 — Related 5SHY IGCT variant. Similar family designation does not establish electrical interchangeability; voltage, current, gate-drive, and mechanical requirements must be compared.
• 5SGX Series IGCTs — Higher-voltage ABB IGCT family used in different converter architectures. Consider only when the converter design calls for the higher voltage class.
• PCS6000 — ABB high-power converter platform in which the 5SHY3545L0016 is specifically documented. This is the most relevant system-level reference when evaluating an installed unit.
• ACS6000 — ABB medium-voltage drive family associated with high-power IGCT converter technology. The exact semiconductor and gate-drive combination must be matched to the drive revision.
• UNITROL 6000 — ABB excitation platform that can contain high-power semiconductor assemblies in applicable configurations; compatibility must be established from the actual power-stack BOM rather than the product family name.

The Engineer’s Guide: Field Pitfalls to Avoid

Warning 1 — Do not treat 5SHY3545L0016 and 3BHB020720R0002 as two unrelated parts.
ABB identifies 3BHB020720R0002 as the product ID for the 5SHY 3545L0016, 4,500 V, 91 mm IGCT module. Use both identifiers when searching procurement records and maintenance documentation.

How to avoid it: Put both numbers on the purchase request: 5SHY3545L0016 / 3BHB020720R0002.

Warning 2 — Do not substitute the newer IGCT solely because the voltage rating looks identical.
ABB documents 5SHY4045L0006 / 3BHB030310R0001 as a one-to-one replacement for 5SHY3545L0016 in the PCS6000 service context. That is useful information, but the statement should not be generalized to every ABB converter.

How to avoid it: Verify the drive/converter type, revision, gate-drive hardware, mechanical stack arrangement, and ABB replacement instructions before approving the newer device.

Warning 3 — Mechanical installation is part of the electrical repair.
A press-pack IGCT relies on the correct mechanical stack pressure and thermal interface. Dirt, uneven contact surfaces, incorrect torque, or a damaged cooling interface can create localized heating.

How to avoid it: Clean and inspect the mating surfaces, follow the equipment-specific tightening sequence and torque specification, and verify the cooling circuit before applying full load. Do not improvise torque values from another power stack.

Frequently Asked Questions (FAQ)

What is ABB 5SHY3545L0016 3BHB020720R0002?

It is an ABB 4,500 V, 91 mm IGCT power semiconductor module. ABB identifies 3BHB020720R0002 as the product ID and 5SHY 3545L0016 as the type designation.

Is 5SHY3545L0016 a conventional thyristor?

No. It is an IGCT — Integrated Gate-Commutated Thyristor. Unlike a conventional line-commutated thyristor, an IGCT is designed for controlled turn-off through its integrated gate structure and dedicated drive arrangement. That makes the gate-drive system an important part of the replacement decision.

Is 3BHB020720R0002 obsolete?

The 5SHY3545L0016 is identified by ABB’s service documentation as an older-type 4,500 V, 91 mm IGCT. ABB also lists 5SHY4045L0006 / 3BHB030310R0001 as a one-to-one replacement for that older device in the documented context.

For an existing installation, however, an original 5SHY3545L0016 can still be the most straightforward maintenance spare if the converter documentation specifies it.

Can I replace 5SHY3545L0016 with 5SHY4045L0006?

For applications covered by the ABB service documentation, yes, ABB identifies the 5SHY4045L0006 as a one-to-one replacement for the 5SHY3545L0016.

Do not extend that conclusion automatically to ACS6000, ACS8000, HVDC, or other systems. Check the exact equipment documentation and associated gate-drive arrangement first.

What should be checked when replacing this IGCT?

At minimum:

1. Confirm 5SHY3545L0016 / 3BHB020720R0002.
2. Check the power-stack mechanical arrangement.
3. Inspect the heat-transfer surfaces.
4. Verify cooling-system condition.
5. Check the associated gate-drive hardware.
6. Inspect snubber/clamping components.
7. Confirm correct mounting pressure and torque.
8. Perform the appropriate electrical and gate-drive tests before full-load operation.

The last few checks are where field repairs often succeed or fail.

How should I verify a surplus or refurbished IGCT?

Ask for the exact ABB type designation and product ID, original markings, physical-condition photographs, and test documentation. Inspect the press-pack ceramic housing and contact surfaces carefully. Chips, cracks, contamination, or damaged contact faces are reasons to stop and investigate.

For a refurbished power semiconductor, a simple continuity check is not meaningful proof of health. The useful question is whether the device has been tested under an appropriate procedure and whether its mechanical and electrical condition is documented.

What should I confirm before purchasing 5SHY3545L0016?

Provide the supplier with the complete identification:

ABB 5SHY3545L0016 — 3BHB020720R0002 — 4,500 V — 91 mm IGCT

Then confirm the installed converter model, power-stack position, gate-drive arrangement, required replacement generation, physical condition, test evidence, warranty, and delivery status.

For a high-power converter, the semiconductor number is only the starting point. The gate driver, cooling system, mechanical stack, and converter revision all need to agree before the replacement is considered field-ready.
