Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | 5SHY3545L0014 |
| ABB Material Number | 3BHE023784 / 3BHE023784R0001 |
| Associated Gate Unit | GVC736BE101 |
| Interface Board | 3BHE019719R0101 |
| Manufacturer | ABB |
| Product Type | IGCT Power Semiconductor Module Assembly |
| Semiconductor Technology | Integrated Gate-Commutated Thyristor (IGCT) |
| Voltage Class | Approx. 4500 V |
| Current Class | Approx. 3500 A |
| Gate Control | GVC736BE101 drive electronics |
| Communication Method | Fiber-optic isolated control interface |
| Typical Platforms | ACS6000, SFC, medium-voltage converters |
| Mounting | Converter power stack installation |
| Cooling | Converter-dependent forced cooling arrangement |
| Application | MV drives, excitation systems, industrial power conversion |
Application Scenarios & Pain Points
A medium-voltage drive shutdown can stop an entire production line. The difficult cases are not always obvious semiconductor failures; sometimes the IGCT, gate driver, cooling path, and protection circuits must be checked as one system.
Typical applications:
- Mining and Heavy Industry Drives: Used in large motor control systems for conveyors, crushers, mills, and high-power rotating equipment where converter availability directly affects production output.
- Oil & Gas Compressor Systems: Applied in high-power variable frequency drives controlling large compressors and pumps requiring precise torque management.
- Marine Propulsion Systems: Supports high-power electric propulsion converters where compact switching hardware is required.
- Static Frequency Converter Systems: Used in converter equipment requiring controlled power transfer and high-current switching capability.
Field note: A plant reported repeated phase-leg overcurrent alarms on an aging MV drive. Initial checks showed normal control board operation. Inspection of the power section found abnormal gate response from one IGCT assembly. After replacing the matched power module and gate unit, the converter passed startup testing.

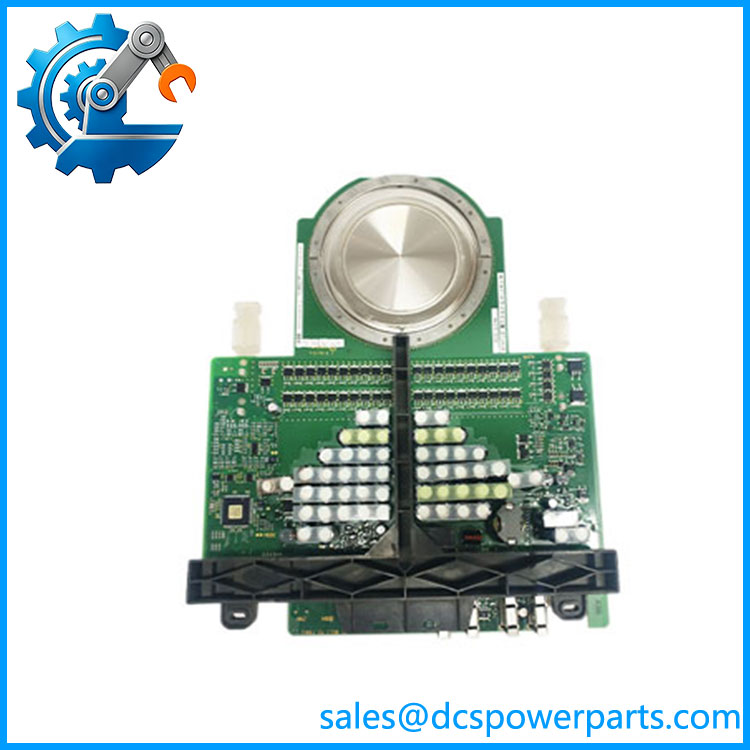

5SHY3545L0014
Related Products
- ABB 5SHY3545L0009 — Related 4.5 kV IGCT module variant used in ABB high-power converters. Electrical ratings and gate matching must be checked before substitution.
- ABB 5SHY3545L0010 3BHB013088R0001 — Similar IGCT family component used in ACS6000 and SFC applications. Different internal matching requirements apply.
- ABB 5SHX1960L0006 3BHB016120R0002 — Higher-voltage IGCT module family used in ABB converter applications. Different power ratings make direct replacement unsuitable without verification.
- ABB GVC750BE101 — Related gate driver unit for different IGCT configurations. Similar function, different matching requirements.
- ABB GVC736AE101 — Earlier gate driver family variant. Requires confirmation of revision and converter compatibility.
- ABB ACS6000 Drive System — Medium-voltage drive platform where IGCT modules and gate units operate together.
- ABB PCS6000 Converter Platform — Power conversion platform using ABB IGCT technology for demanding industrial applications.
The Engineer’s Guide: Field Pitfalls to Avoid
⚠️ Replacing the IGCT Without the Correct Gate Driver Match
The power semiconductor and gate electronics are a matched system. A physically similar module may trigger protection faults if the gate characteristics differ.
How to avoid: Verify the complete combination of 5SHY part number, GVC module, interface board revision, and converter documentation.
⚠️ Ignoring Fiber Communication Condition
Gate driver systems depend on clean optical communication. Dust, damaged fiber ends, or poor seating can appear as semiconductor faults.
How to avoid: Inspect fiber connectors under proper lighting and verify optical signal diagnostics before replacing expensive power hardware.
⚠️ Missing the Original Failure Cause
An IGCT failure may be the result of cooling problems, DC-link stress, snubber faults, or gate drive issues.
How to avoid: Check heat sink condition, cooling flow, capacitor health, and fault history before energizing the repaired converter.
Frequently Asked Questions (FAQ)
What is the ABB 5SHY3545L0014 used for?
The ABB 5SHY3545L0014 is an IGCT power semiconductor module used in ABB medium-voltage converter systems. It performs high-power switching inside applications such as MV drives and power conversion equipment.
Is the GVC736BE101 included with the 5SHY3545L0014?
The GVC736BE101 is the associated gate control unit used with this IGCT assembly configuration. In field replacement work, the IGCT and gate electronics should be treated as a matched set.
Can 5SHY3545L0014 replace other ABB IGCT modules?
Not automatically. Before substitution, verify:
- Voltage rating
- Current rating
- Gate driver model
- Converter type
- Mechanical mounting arrangement
A similar-looking IGCT may not operate correctly in another converter design.
What systems use this ABB IGCT assembly?
Typical applications include:
- ABB ACS6000 medium-voltage drives
- Static frequency converters
- Industrial power conversion systems
- Large motor control applications
What causes ABB IGCT module failures?
Common causes include:
- Excessive current stress
- Cooling system problems
- Gate driver malfunction
- DC-link voltage events
- Incorrect installation pressure
Does replacing this module require commissioning?
Yes. After replacement, engineers should verify gate signals, protection feedback, converter diagnostics, insulation condition, and startup behavior before returning the drive to service.
Is a refurbished ABB 5SHY3545L0014 suitable for industrial operation?
A tested refurbished unit can be suitable when the IGCT characteristics, gate driver compatibility, physical condition, and converter application requirements are confirmed before installation.
