Description

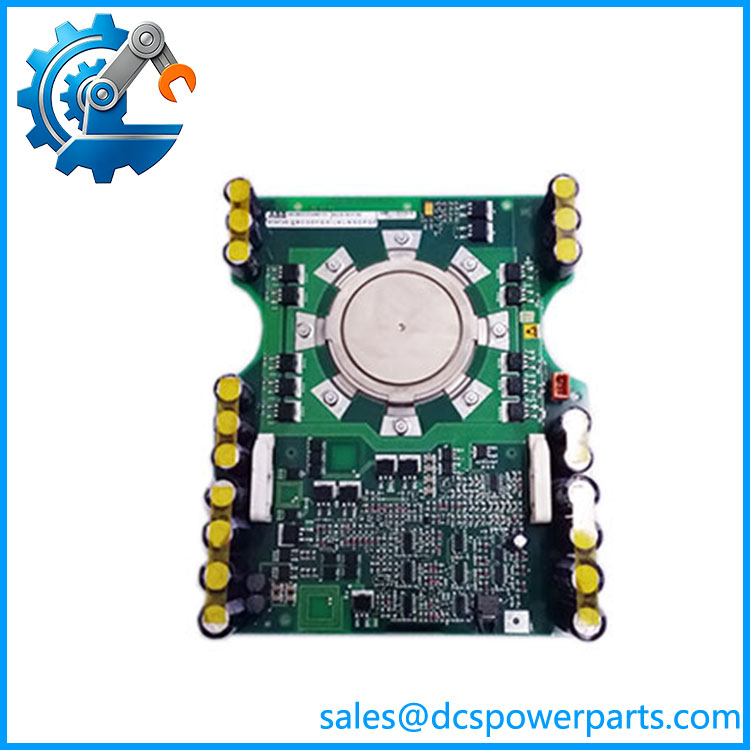

ABB 5SHX1445H0001 | 3BHL000391P0101 | IGCT Module | Medium-Voltage Drive Spare
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| IGCT Model | 5SHX1445H0001 |
| ABB Product ID | 3BHL000391P0101 |
| Catalog Description | IGCT MODULE |
| Associated Driver Board | 3BHB003230R0101 |
| Associated Designation | 5SXE05-0152 |
| Voltage Class | 4.5 kV |
| Module Diameter/Class | 68 mm |
| Semiconductor Technology | IGCT |
| Product Category | Power semiconductor |
| Typical Equipment | Medium-voltage power converters and drives |
| Status | Legacy/older-generation component; verify current OEM availability |
ABB-derived catalog information identifies 5SHX1445H0001 / 3BHL000391P0101 specifically as an IGCT module, with a 4.5 kV, 68 mm designation. The catalog record also lists the product as a discrete piece rather than a conventional control PCB.
Some secondary sources place this device in the approximately 1.4 kA current class, but I would not use a specific continuous-current figure for procurement without the applicable ABB semiconductor datasheet and converter topology. The same caution applies to gate current, on-state voltage, surge current, and junction-temperature limits.
Product Introduction
The ABB 5SHX1445H0001, ABB Product ID 3BHL000391P0101, is a high-power Integrated Gate-Commutated Thyristor (IGCT) module used in ABB medium-voltage power-conversion equipment. IGCT technology is intended for high-power switching applications where the semiconductor must handle substantial voltage and current while remaining coordinated with its dedicated gate-drive circuitry.
The associated 3BHB003230R0101 / 5SXE05-0152 identifiers are important when reconstructing the complete power-semiconductor assembly. Secondary documentation consistently associates 3BHB003230R0101 with the gate/power-driver portion of the IGCT arrangement.
5SHX1445H0001 3BHL000391P0101 3BHB003230R0101 5SXE05-0152
Application Scenarios & Field Pitfalls — The Engineer’s Perspective
Engineering Pain Point
When an IGCT fails inside a medium-voltage converter, replacing the semiconductor alone does not automatically restore the converter. Gate-drive compatibility, clamping pressure, thermal interface, snubber components, firing behavior, and the condition of neighboring power devices all have to be checked. A new device installed into a damaged power stack can fail immediately after energization.
Typical Applications
- Medium-voltage AC drive power sections
- High-power industrial frequency converters
- Large motor drive systems
- Industrial power-conversion equipment
- Mining, metals, cement, and process-industry drive systems where ABB IGCT converters are installed
Technical Pitfalls
- Do not treat the four numbers as four interchangeable products.
5SHX1445H0001 / 3BHL000391P0101 identifies the IGCT module. 3BHB003230R0101 / 5SXE05-0152 is associated with the gate/power-drive side of the assembly. They should be tracked separately in the BOM. - Mechanical clamping is critical.
Press-pack semiconductor devices depend on controlled mechanical compression and a correctly prepared thermal interface. The manufacturer’s specified mounting procedure should be followed rather than applying an arbitrary torque. - Check the complete phase leg.
Before replacing one IGCT, inspect adjacent semiconductor devices, gate units, snubbers, fuses, bus connections, cooling surfaces, and DC-link components. A semiconductor failure is often the consequence of another fault rather than the original cause. - Gate-driver compatibility matters.
The 3BHB003230R0101 association should be verified against the actual converter model and revision. Do not substitute a visually similar gate unit solely because the connector arrangement appears identical. - Do not rely on generic semiconductor ratings.
Published secondary listings disagree on exact current, surge-current, gate-drive, and thermal values. Those parameters should be taken from the applicable ABB technical documentation for the specific converter assembly. - Used-device procurement requires additional inspection.
Check the semiconductor marking, ceramic/insulation surfaces, contact surfaces, signs of overheating, storage condition, packaging, and any evidence of previous mounting. For a press-pack device, physical condition can matter as much as the electrical label. - Verify the converter application before substitution.
A 4.5 kV-class IGCT does not automatically qualify as a replacement for another 4.5 kV device. Switching characteristics, gate-drive requirements, mechanical dimensions, pressure requirements, and system protection settings all have to agree.
Related Products
- ABB 5SHX1445H0001 — Primary IGCT module designation.
- ABB 3BHL000391P0101 — ABB Product ID for the 5SHX1445H0001 IGCT module.
- ABB 3BHB003230R0101 — Associated IGCT gate/power-driver hardware.
- ABB 5SXE05-0152 — Related designation appearing with the IGCT/driver assembly.
- ABB 5SHX1060H0001 — Different IGCT device; voltage/current and converter compatibility must be checked before substitution.
- ABB 5SHX2645L0004 — Related high-power IGCT family member with different electrical characteristics.
- ABB GVC704AE01 — Associated ABB converter/gate-unit designation appearing with this IGCT family.
- ABB 5SXE04-0150 — Related ABB power-semiconductor/gate-drive designation; not an automatic substitute.
Procurement Note
For a replacement, specify 5SHX1445H0001 / 3BHL000391P0101 as the semiconductor identification and separately record 3BHB003230R0101 / 5SXE05-0152 as the associated driver designation.
Before purchasing, compare the complete converter model, semiconductor marking, gate-unit revision, mechanical stack dimensions, cooling arrangement, and ABB part-number revision. For an installed medium-voltage drive, the safest spare is one whose device and driver combination matches the existing power-cell BOM rather than one selected only by the 4.5 kV rating.
