Description
Product Overview

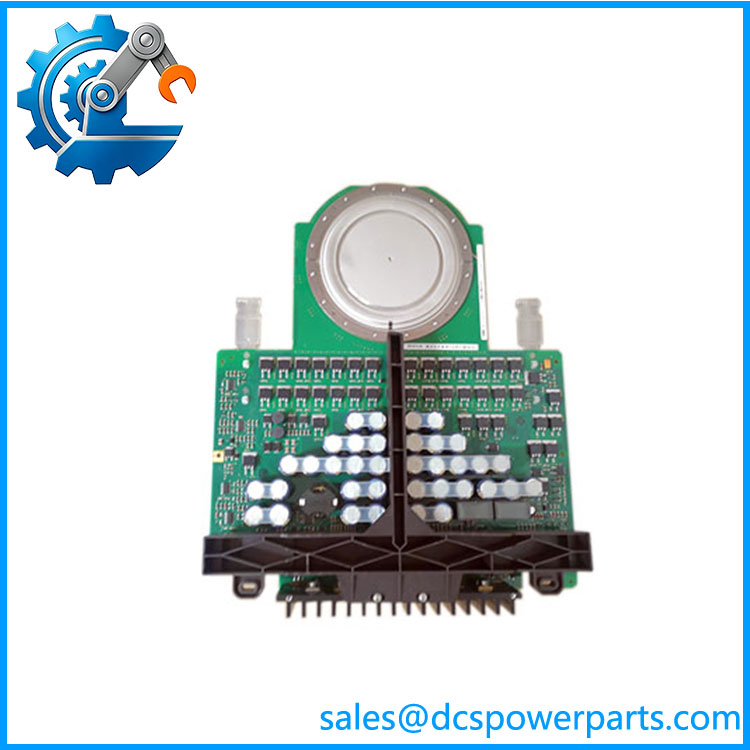

The ABB 5SGY3545L0010 3BHB006485R0001 is a high-power IGCT (Integrated Gate-Commutated Thyristor) module designed for ABB medium-voltage power conversion equipment. This semiconductor switching device is used inside converter assemblies where high current handling, fast switching response, and precise control of electrical energy flow are required. The ABB 5SGY3545L0010 3BHB006485R0001 belongs to ABB’s 5SGY IGCT family and is associated with applications such as ACS6000 medium-voltage drives and specialized power converter systems.
Unlike conventional thyristor assemblies that require additional external commutation methods, IGCT technology integrates the gate drive connection with the semiconductor element, allowing controlled turn-on and turn-off operation. The ABB 5SGY3545L0010 3BHB006485R0001 functions as a switching element within inverter and converter power stages, helping regulate energy conversion between electrical sources and industrial loads. Typical applications include large motor drives, converter stations, and high-power industrial equipment where semiconductor performance directly affects system operation.
For maintenance teams supporting ABB ACS6000 or related converter platforms, the ABB 5SGY3545L0010 3BHB006485R0001 is commonly considered during power module replacement and lifecycle support activities. To be completely transparent, IGCT replacement requires careful verification beyond the part number. Engineers should confirm converter topology, gate unit compatibility, cooling arrangement, mounting hardware, and related semiconductor components before installation.
The practical value of maintaining an original matching IGCT module is reducing uncertainty during high-power converter repairs. These components operate under significant electrical and thermal stress, so inspection of mechanical interfaces, pressure contacts, cooling surfaces, and gate connections should be completed before returning equipment to service.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | ABB 5SGY3545L0010 |
| Ordering Number | 3BHB006485R0001 |
| Manufacturer | ABB |
| Product Type | IGCT Power Semiconductor Module |
| Technology | Integrated Gate-Commutated Thyristor |
| Voltage Class | 4500V |
| Current Class | 3500A |
| Module Diameter | 91 mm class |
| Application | Medium-voltage power converters |
| Compatible Systems | ABB ACS6000 / SFC converter applications |
| Semiconductor Function | High-power switching device |
| Gate Drive | Integrated gate commutation structure |
| Cooling Method | Pressure-contact cooling assembly |
| Installation | Converter power stack assembly |
| Replacement Reference | 5SHY3545L0014 series replacement family |
5SGY3545L0010
Related Products
- ABB 5SHY3545L0014 3BHE023784R0001 — Updated IGCT module version replacing several earlier 5SGY/5SHY variants. ABB documentation lists 3BHB006485R0001 among replaced product IDs, making it an important replacement reference for compatible applications.
- ABB 5SHY3545L0010 3BHB013088R0001 — Related 4500V IGCT module used in ABB ACS6000 and SFC systems. Compatibility depends on converter design and hardware revision.
- ABB 5SHY3545L0009 3BHB020720R0002 — Another 5SHY3545 family IGCT module used in ABB power converter and excitation applications. Suitable replacement selection requires system verification.
- ABB GVC750BE101 — Gate unit assembly associated with ABB IGCT power modules. Supports gate control functions required for semiconductor switching operation.
- ABB ACS6000 Medium Voltage Drive System — Main application platform where IGCT modules are installed for motor control and power conversion.
- ABB ACS5000 Drive System — Medium-voltage converter platform using similar power semiconductor technology. Application compatibility depends on installed converter configuration.
- ABB UNITROL 6000 System Components — Excitation system hardware using related IGCT-based power conversion assemblies.
Frequently Asked Questions (FAQ)
1. What is the ABB 5SGY3545L0010 3BHB006485R0001 used for?
The ABB 5SGY3545L0010 3BHB006485R0001 is an IGCT power semiconductor module used in high-power converter systems. It acts as a controlled switching element inside medium-voltage drives and power conversion equipment.
2. Can I hot-swap the ABB 5SGY3545L0010 module?
No. IGCT modules are installed inside high-voltage converter power sections and should not be treated as hot-swappable components.
Typical replacement procedure:
- Isolate the converter from all energy sources.
- Confirm DC bus discharge.
- Follow manufacturer-approved electrical safety procedures.
- Inspect cooling and contact surfaces.
- Perform commissioning checks after installation.
3. Does the ABB 5SGY3545L0010 support firmware v3.1?
The IGCT module itself does not run application firmware like a controller CPU. Its compatibility depends on the converter control system, gate unit configuration, and associated drive hardware.
4. Will replacing the IGCT module erase my drive parameters or control logic?
No. The IGCT is a power switching component and does not store drive application software or control parameters.
After replacement, engineers should verify:
- Gate unit communication
- Converter diagnostics
- Current feedback signals
- Protection settings
- Startup test results
5. How can I verify a New Surplus ABB 5SGY3545L0010 3BHB006485R0001?
Recommended inspection steps:
- Confirm ABB identification markings.
- Verify the 5SGY3545L0010 designation.
- Check the 3BHB006485R0001 ordering number.
- Inspect semiconductor housing and contact surfaces.
- Verify storage and handling records.
6. Is the ABB 5SGY3545L0010 compatible with 5SHY3545L0014?
The relationship requires engineering verification. ABB lists newer 5SHY3545L0014 modules as replacement references for older product IDs including 3BHB006485R0001, but actual field replacement should still consider converter model, gate unit, and application requirements.
7. What failures commonly damage ABB IGCT modules?
Common causes include:
- Excessive thermal stress
- Cooling system problems
- Overcurrent events
- Gate drive faults
- Converter protection failures
Replacing the semiconductor without identifying the original failure cause may result in repeated damage. A complete converter inspection is recommended before startup.
