ABB 3BHE014135R0001 | UAD149A01 I/O | Power Electronics Control

Description

ABB UAD149A0001 3BHE014135R0001 | Combi I/O System | Excitation & Power Electronics

Key Technical Specifications

ABB-related catalog records explicitly associate UAD149A01 with ABB identification 3BHE014135R0001, supporting the Combi I/O classification.

Product Introduction

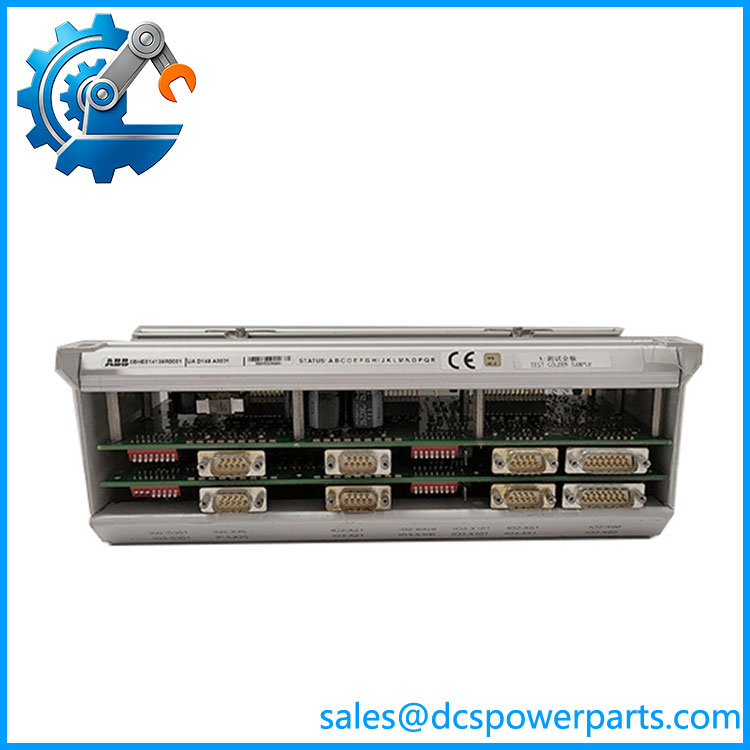

The ABB 3BHE014135R0001 is an ABB UAD149A01 Combi I/O System component used within ABB industrial power-control equipment. Its role is best understood as an equipment-specific I/O and interface assembly rather than a standalone PLC CPU. The available documentation associates this identification number with ABB Combi I/O hardware used in power and automation applications.

The appears in the same technical ecosystem as ABB excitation and power-electronics equipment, but public reseller descriptions are inconsistent enough that exact channel counts, voltage ratings, communications, and environmental specifications should not be treated as confirmed without the machine documentation. In particular, descriptions calling this part a generic 24 VDC PLC module or assigning it arbitrary Ethernet/PROFIBUS interfaces should be avoided.

UAD149A0001 3BHE014135R0001

Application Scenarios & Field Pitfalls — The Engineer’s Perspective

Engineering Pain Point

A replacement UAD149 assembly can look like a straightforward board swap, but the real risk is system compatibility rather than physical fit. ABB power-control equipment often uses equipment-specific boards whose function depends on the surrounding rack, backplane, configuration, firmware, and connected power-conversion hardware. A board can power up normally and still fail to operate correctly if it is installed in the wrong host configuration.

Typical Applications

Excitation equipment
The UAD149 family is associated in public ABB-related records with excitation-control equipment and related power-system hardware.

Power-electronics control
The Combi I/O architecture can provide the interface between electronic control circuitry and external equipment signals.

Industrial drive systems
ABB power-conversion and drive installations may use equipment-specific I/O assemblies to connect control electronics with measurement and command circuits.

Legacy automation maintenance
This type of board is particularly important when maintaining installed ABB systems where replacing the complete controller or power-conversion cabinet would be considerably more disruptive.

Technical Pitfalls

1. Do not classify it as a generic PLC CPU.
   The stronger identification is Combi I/O System associated with 3BHE014135R0001.
2. Do not use generic I/O specifications from unrelated UAD149 listings.
   Some secondary sources claim 12–48 VDC input, 5 VDC/10 A output, Arduino compatibility, or other specifications that clearly do not establish the electrical characteristics of the ABB assembly. Those claims should not be used as purchasing specifications.
3. Do not assume UAD149A1501 is automatically interchangeable.
   The related UAD149A1501 / 3BHE014135R1501 appears in the same UAD149 family, but a different ABB identification number means the replacement must be checked against the host equipment and configuration.
4. Verify the host system before substitution.
   Record the drive, excitation controller, converter, cabinet, rack position, neighboring boards, and connector arrangement. These details can be more useful than the base UAD149 designation.
5. Check firmware and configuration.
   If the assembly contains configuration-dependent electronics, replacement may require restoration of machine parameters or hardware configuration data. Do not assume that a physically identical board automatically carries the correct application configuration.
6. Inspect the complete connector interface.
   Before installation, compare connector keys, pin arrangement, board revision, terminal/interface hardware, and physical markings with the removed unit.

Related Products

• ABB UAD149A1501 3BHE014135R1501 — Related UAD149 family assembly; verify system-specific interchangeability.
• ABB UAD149A0011 3BHE014135R0011 — Related identification; revision and application compatibility require verification.
• ABB PCD235C101 3BHE057901R0101 — ABB excitation-control hardware used in AC 800PEC-related systems; different platform and function.
• ABB PPD517A3011 3BHE041576R3011 — AC 800PEC-based excitation/high-speed control hardware.
• ABB PPD513AOC-100440 3BHE039724R0C3D — AC 800PEC power-electronics/excitation control hardware.
• ABB UFC762AE101 3BHE006412R0101 — ABB current-detection/control board used in power-conversion applications.
• ABB UFC760BE143 3BHE004573R0143 — Common-interface hardware associated with ABB power electronics.
• ABB UNITROL 1000 — Automatic voltage regulator family for synchronous-machine excitation applications.
• ABB DCS-series control boards — Related ABB power-converter control hardware, but not direct substitutes for .
• ABB 5SHY / 5SHX power semiconductor devices — Power-stage components commonly found in ABB converter architectures; electrically different from the I/O assembly.

Procurement Note

For , the safest purchasing description is:

ABB , 3BHE014135R0001, Combi I/O System.

Provide the complete identification exactly as printed on the board, plus the host equipment model, cabinet/rack position, neighboring modules, serial/ML information where available, and clear photographs of the connectors.

For used or surplus inventory, inspect the PCB for corrosion, overheating, damaged connectors, cracked solder joints, and evidence of previous component replacement. Functional testing should be performed against the actual ABB host system or an approved test fixture. A simple power-up test is not sufficient to establish compatibility.

Engineering classification: ABB 3BHE014135R0001 = Combi I/O System / equipment-specific I/O assembly. Exact electrical and communication specifications should be confirmed from the host-system documentation rather than copied from conflicting reseller listings.
