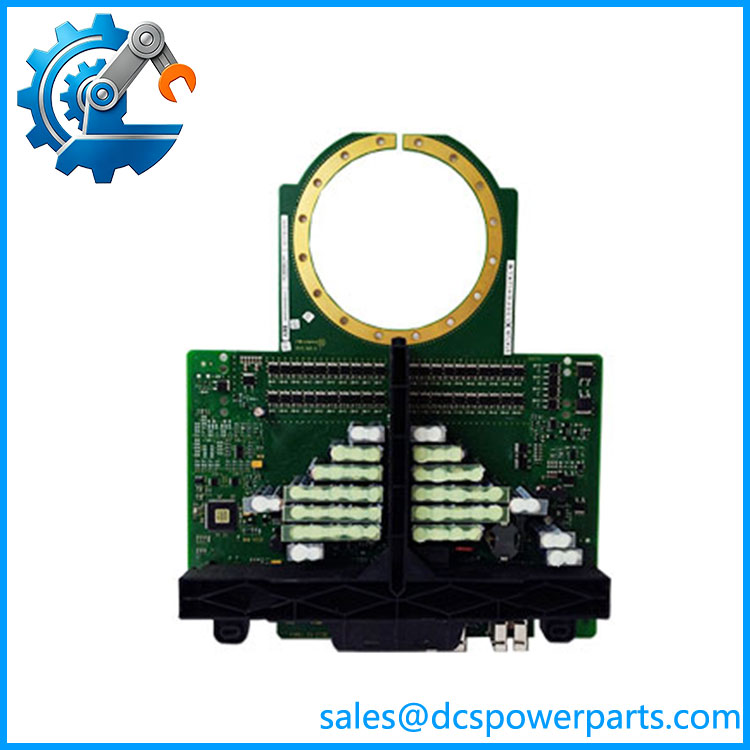

ABB GVC736CE101 3BHB045647R0001 – PM Kit for 12 × 91 mm IGCTs
Product Introduction
The ABB GVC736CE101 3BHB045647R0001 is a power-module maintenance kit associated with the GV C736 CE101 power-electronics assembly. Its documented description is “PM KIT FOR 12X91MM IGCTS,” indicating that the kit is intended for an assembly using twelve 91 mm IGCT devices. This is an important distinction when sourcing the part: the 3BHB045647R0001 should not be treated as a conventional PLC I/O card, drive control board, or standalone semiconductor module. It belongs to the power-electronics maintenance side of ABB equipment.
The ABB GVC736CE101 3BHB045647R0001 is associated with high-power switching equipment where IGCT devices form a critical part of the power-conversion stage. IGCT technology combines the controllability of a gate-controlled semiconductor with the low-conduction-loss characteristics required in high-power applications. Secondary ABB-part references consistently associate GVC736CE101 with IGCT hardware, although available public sources do not provide enough evidence to safely assign a voltage, current, switching frequency, or complete drive model to this exact kit.
For procurement, the ABB GVC736CE101 3BHB045647R0001 should therefore be matched by the complete order number and the installed GV C736 CE101 configuration. A visually similar IGCT assembly is not sufficient evidence of interchangeability. The number and physical format of the IGCT devices, associated gate-drive hardware, mechanical arrangement, cooling interface, and revision of the power assembly all need to be checked before a maintenance kit is approved.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 3BHB045647R0001 |
| ABB Type Designation | GVC736CE101 |
| Manufacturer | ABB |
| Product Type | PM Kit / Power Module Kit |
| Kit Application | IGCT power module assembly |
| IGCT Quantity | 12 |
| IGCT Size | 91 mm |
| Associated Assembly | GV C736 CE101 |
| Semiconductor Technology | IGCT |
| Primary Function | Power-module maintenance / replacement |
| Voltage Rating | Not confirmed for this kit |
| Current Rating | Not confirmed for this kit |
| Operating Temperature | Not confirmed for this kit |
| Cooling Arrangement | Verify against the installed GV C736 CE101 assembly |
| Mounting | Assembly-specific; verify mechanical configuration |
| Communication Interface | Not applicable to the PM kit itself |
The 12 × 91 mm IGCT description is the strongest directly matching specification available for this exact order number.
GVC736CE101 3BHB045647R0001
Main Features and Engineering Considerations
IGCT Power-Module Application
The key characteristic of the ABB 3BHB045647R0001 is that it is a PM kit, rather than a conventional electronic control PCB. IGCTs are high-power semiconductor devices used for controlled switching in medium- and high-power converter equipment. The GV C736 CE101 designation appears in multiple ABB-part references alongside other IGCT-related components.
Exact Mechanical Matching Matters
The “91 mm” specification is not a cosmetic identifier. In a power semiconductor assembly, the physical interface between the semiconductor, heatsink, clamping structure, busbar arrangement, and gate-drive connection is part of the engineering design.
A replacement kit should therefore be checked against the installed assembly rather than selected solely because another component carries the GVC736 designation.
Do Not Substitute by Electrical Rating Alone
Public reseller data gives conflicting descriptions of this part. Some sources incorrectly characterize 3BHB045647R0001 as a generic ACS880 power-converter module or high-current thyristor module. Those descriptions should not be used as the basis for procurement. The more specific matching description identifies the part as a PM kit for 12 × 91 mm IGCTs, GV C736 CE101.
That distinction is important because an IGCT replacement kit can depend on the exact mechanical and electrical construction of the converter stage.
Maintenance and Installation
Replacement of IGCT power hardware is not equivalent to swapping a plug-in control card. The maintenance procedure should include de-energization and DC-link discharge verification, inspection of busbar connections, semiconductor mounting surfaces, clamping hardware, cooling surfaces, gate-drive connections, and associated protection components.
Torque values, thermal-interface requirements, clamping pressure, and semiconductor orientation should be taken from the applicable ABB equipment documentation. They should not be inferred from the 3BHB045647R0001 part number.
Application Scenarios
- ABB high-power industrial drive systems
- Medium-voltage power-conversion equipment
- IGCT-based converter assemblies
- GV power modules
- Preventive maintenance of IGCT power stages
- Corrective replacement of worn or failed IGCT assemblies
- Maintenance inventory for legacy ABB power-electronics equipment
Engineer’s Guide: Field Pitfalls
1. Do not purchase this as a generic thyristor module.
The documented description is a PM kit for 12 × 91 mm IGCTs, not simply an interchangeable SCR/thyristor device.
2. Confirm the complete ABB order number.
Verify 3BHB045647R0001, not merely “.” The GVC designation can appear on related components and assemblies.
3. Verify the IGCT quantity and physical format.
The exact matching description specifies 12 × 91 mm IGCTs. A kit intended for a different number or size of devices should not be assumed compatible.
4. Inspect the complete power assembly.
If an IGCT has failed, investigate the cause. Gate-driver faults, cooling problems, abnormal commutation, busbar issues, snubber/protection problems, or excessive electrical stress can cause a replacement semiconductor to fail again.
5. Do not rely on reseller specifications for voltage/current ratings.
Available secondary sources disagree substantially about the function and ratings of this part. Exact electrical ratings should be obtained from the equipment-specific ABB documentation.
Frequently Asked Questions
What is ABB 3BHB045647R0001?
It is an ABB PM kit for 12 × 91 mm IGCTs, associated with the GV assembly.
Is 3BHB045647R0001 a PLC or DCS module?
No. It is power-electronics maintenance hardware associated with an IGCT power assembly, not a PLC/DCS I/O module.
Is the same as 3BHB045647R0001?
They are associated identifiers for the same procurement item: is the ABB type/designation, while 3BHB045647R0001 is the ABB order number identified for the PM kit.
How many IGCTs does the kit cover?
The matching description specifies 12 IGCTs with a 91 mm format.
Can another GVC736 component replace 3BHB045647R0001?
Not automatically. Related GVC736 parts exist for different configurations, including kits for different IGCT quantities and associated components. The exact GV configuration must be verified before substitution.
Procurement Note
For ABB 3BHB045647R0001, the most important procurement check is the complete 3BHB045647R0001 order number together with the installed GV assembly.
I would request confirmation of:
- Exact ABB order number
- designation
- 12 × 91 mm IGCT configuration
- Kit completeness
- Semiconductor manufacturer/marking where applicable
- Original versus repaired/refurbished status
- Storage history and packaging condition
- Inspection or functional-test documentation
- Compatibility with the existing GV power assembly
Because this is power-semiconductor maintenance hardware, a generic “tested” statement is not enough. The physical configuration and exact component identity should be documented before the kit is released for a critical-drive repair.
