Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Model | TU715F |
| Order Number | 3BDH000378R0001 |
| Product Type | I/O Terminal Unit |
| System Platform | ABB Freelance DCS / S700 I/O |
| Signal Type | 24 VDC Digital and Analog I/O |
| Terminal Type | Screw terminal |
| Wiring Type | 1/2 wire connection |
| Number of I/O Channels | 32 channels |
| Channel Grouping | 4 groups × 8 channels |
| Rated Voltage | 24 VDC |
| Maximum Total Current | 10 A |
| Supported Wire Size | 0.08 to 2.5 mm² |
| Mounting | S700 I/O module base / DIN rail installation |
| Protection Rating | IP20 |
| Dimensions (W × H × D) | 68 × 135 × 30 mm |
| Weight | Approx. 0.19 kg |
| Application | Distributed I/O field connection interface |
Product Introduction
ABB TU715F 3BDH000378R0001 Overview
The ABB TU715F 3BDH000378R0001 is an I/O Terminal Unit designed for ABB Freelance DCS S700 I/O systems. It provides the mechanical mounting point and electrical termination interface required for installing S700-series I/O modules in industrial control cabinets. Unlike an active I/O module, the ABB TU715F 3BDH000378R0001 does not process field signals itself; its primary function is to provide reliable wiring connectivity between field devices and the installed I/O electronics.
The ABB TU715F 3BDH000378R0001 uses screw-type terminals for field connections and supports ABB S700 I/O modules handling 24 VDC digital and analog signals. The terminal unit design allows an I/O module to be removed and replaced without disturbing field wiring, which reduces maintenance effort during troubleshooting or hardware replacement activities.
The ABB TU715F is commonly installed with ABB Freelance automation stations, remote I/O assemblies, and process control panels requiring modular field signal connections. Compatible modules include digital I/O, analog input/output, frequency modules, and mixed signal modules within the S700 family.
When replacing a 3BDH000378R0001, engineers should verify the installed I/O module type, terminal assignment, field wiring arrangement, and cabinet documentation. Although the terminal unit itself is passive hardware, incorrect matching with the installed I/O module can result in wiring errors or incorrect signal operation.

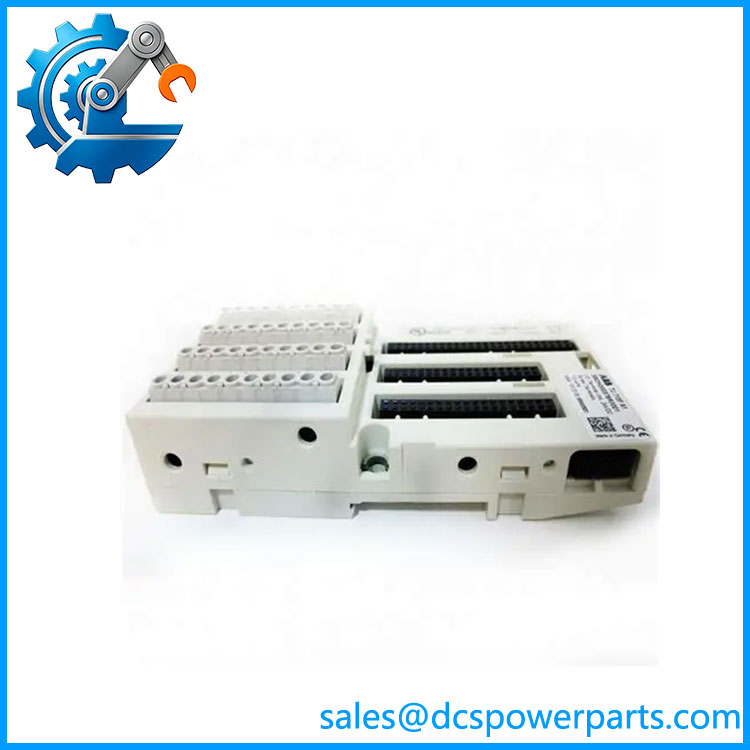

TU715F 3BDH000378R0001
Application Scenarios & Field Pitfalls (The Engineer’s Perspective)
Engineering Pain Point
A process I/O channel shows signal loss, unstable readings, or unexpected field device behavior. The active I/O module may appear functional, but the termination interface or field wiring connection may be the actual source of the problem.
The troubleshooting path should include:
- Terminal screw connection condition
- Field cable continuity
- 24 VDC distribution
- I/O module seating
- Channel assignment verification
- Signal polarity checking
The ABB 3BDH000378R0001 provides the connection path, but field wiring and I/O module configuration remain critical parts of the complete signal chain.
Typical Applications
Process Automation Systems
Used for:
- Analog transmitter connections
- Digital status monitoring
- Valve and actuator interfaces
- Remote process measurement points
Water and Utility Control
Applied in:
- Pump station automation
- Treatment process monitoring
- Local control cabinets
Manufacturing Systems
Used for:
- Machine status signals
- Sensor connections
- Auxiliary equipment control
Energy Applications
Applied in:
- Power auxiliary systems
- Distributed monitoring panels
- Plant utility automation
Technical Pitfalls to Avoid
1. Match the Correct I/O Module
Before installation, verify:
- I/O module model
- Channel arrangement
- Signal type
- Terminal assignment
The is only a connection platform; the inserted module determines the actual signal function.
2. Inspect Screw Terminals
Common field issues include:
- Loose terminal screws
- Oxidized contacts
- Incorrect wire stripping length
- Damaged terminal blocks
Poor termination can create intermittent faults that appear as I/O module failures.
3. Confirm 24VDC Distribution
Check:
- Process voltage UP (+24 VDC)
- Process voltage ZP (0 VDC)
- Current loading
- Power supply stability
The terminal unit distributes field power connections through dedicated terminals.
4. Preserve Existing Wiring Documentation
Before replacement, record:
- Terminal numbering
- Connected field devices
- Channel mapping
- Cabinet drawings
A passive terminal unit replacement still requires careful wiring verification.
