Description
Product Overview

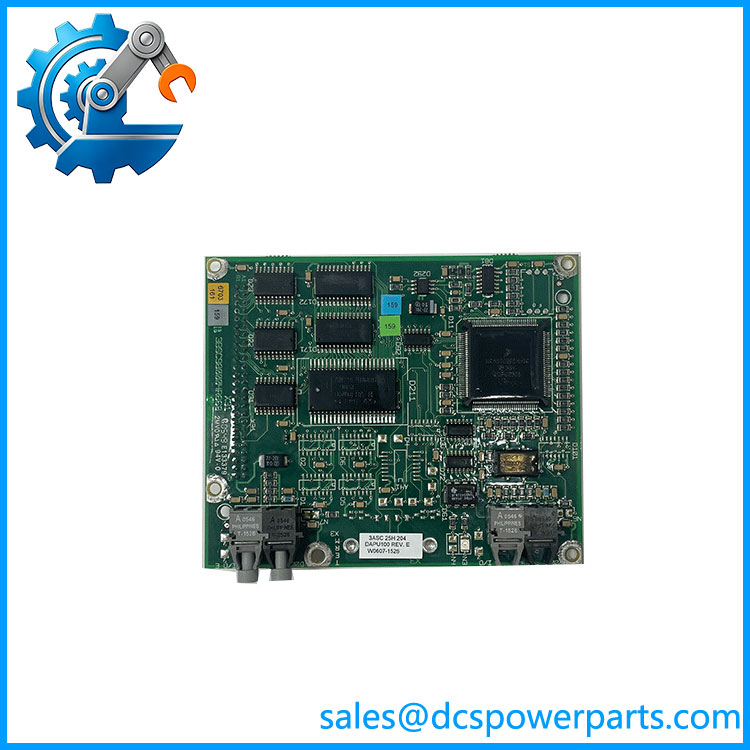

ABB DAPU100 3ASC25H204 is an I/O control board designed for ABB industrial drive and converter systems requiring a dedicated interface between field signals and internal control electronics. The board provides the signal handling functions required for communication between external control devices, monitoring circuits, and the drive regulation system. ABB classifies the unit as a Control board, I/O, distinguishing it from power-stage boards such as pulse transformer or feedback modules.
The ABB 3ASC25H204 DAPU100 belongs to the ABB ASTAT-era control board family and is associated with systems including DARA 1000, DARA 1001, DAPM 100, and DAPM 101 platforms. Within these architectures, the board works as an interface component that manages process-related input and output signals required by the drive controller.
Unlike a PLC I/O module used in a general automation rack, the DAPU100 3ASC25H204 is a dedicated drive-system circuit board. Its operation depends on the surrounding ABB controller hardware, software configuration, and installed converter architecture. Replacement requires verification of the complete drive assembly rather than only matching the board designation.
For maintenance teams supporting legacy ABB drive installations, the ABB DAPU100 3ASC25H204 remains an important spare component because many ASTAT-based systems continue operating in industrial applications. Before replacement, engineers should confirm connector arrangement, installed drive model, parameter configuration, and the function of the failed I/O channel.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Model | DAPU100 |
| Part Number | 3ASC25H204 |
| Product Type | I/O Control Board |
| Board Function | Drive input/output interface |
| Product Family | ABB ASTAT / DARA / DAPM series |
| Application | Industrial drives and converter systems |
| Signal Interface | Digital and analog process I/O (system dependent) |
| Installation Type | Internal control cabinet mounting |
| Typical Supply Voltage | Drive system internal supply |
| Weight | Approx. 80 g |
| Used In | DARA 1000, DARA 1001, DAPM 100, DAPM 101 (spare application) |
| Part Classification | Spare control board |
ABB product information lists the net weight as approximately 80 g and describes the product as DAPU 100; Control board, I/O.
Main Features and Advantages
DAPU100
Dedicated Drive I/O Interface
The primary role of ABB DAPU100 3ASC25H204 is signal exchange within ABB drive control architectures. It provides the connection point for external control signals required by the drive system.
Typical signal functions may include:
- Start/stop commands
- Status feedback
- Interlock signals
- Monitoring contacts
- Control references
The exact signal assignment depends on the installed ABB equipment configuration.
Integration With ABB Converter Systems
The is part of a larger control structure that may include:
- Main control boards
- Power converter modules
- Pulse trigger boards
- Feedback boards
- External operator interfaces
It should be evaluated as part of the complete drive system.
Support for Legacy ABB Equipment
Many ABB ASTAT and DARA-based systems remain in service in industrial plants. Maintaining a tested spare can help reduce downtime when aging electronic boards fail.
Common failure-related symptoms may include:
- Missing external commands
- Incorrect status indication
- Communication between control sections lost
- Unexpected drive interlocks
Board-Level Replacement
Replacing the I/O control board can be more economical than replacing a complete drive controller assembly when the fault is isolated to the interface section.
Compatibility With Existing Control Architecture
The design allows the original ABB drive system to remain unchanged when a matching replacement board is installed.
Before installation, confirm:
- Drive model
- Board revision
- Connector location
- Parameter settings
- System documentation
Application Scenarios
ABB Industrial Motor Drives
Used in ABB drive systems controlling:
- Pumps
- Fans
- Compressors
- Conveyors
- Production machinery
Converter Control Systems
The board can be part of ABB converter assemblies requiring external signal processing and control interfaces.
Heavy Industry Equipment
Typical environments include:
- Steel processing
- Mining equipment
- Marine systems
- Power-related industrial machinery
Legacy ASTAT Installations
The remains relevant for maintenance of older ABB drive platforms where original control architecture is still operational.
Related Components
| Model | Function |
|---|---|
| 3ASC25H203 DAPC100 | Main control board |
| 3ASC25H208 DATX100 | Pulse transformer board |
| 3ASC25H209 DATX110 | I/O board / control module interface |
| 3ASC25H210 DATX120 | Remote I/O board |
| 3ASC25H214 DATX130 | Rotor feedback board |
ABB spare-parts documentation separates these boards by function, identifying as the I/O control board and DATX-series boards as other specialized interface boards.
Engineer’s Guide: Field Pitfalls
⚠️ Do Not Replace With Similar DATX Boards
ABB ASTAT boards may share similar mechanical formats but perform different tasks.
Example:
| Board | Function |
|---|---|
| I/O control board | |
| DATX100 | Pulse transformer board |
| DATX130 | Rotor feedback board |
Installing the wrong board can cause incorrect drive operation.
⚠️ Confirm the Drive Platform
Before replacement, verify:
- DARA model
- DAPM model
- Controller revision
- Existing board location
- Application software
A board that fits physically may not function correctly in another ABB drive family.
⚠️ Check External Wiring Before Board Replacement
I/O faults are not always caused by the PCB.
Inspect:
- Terminal connections
- Field wiring
- Interlock circuits
- External switches
- Signal reference voltage
- Grounding
⚠️ Refurbished Board Testing Requirements
A proper inspection should include:
- PCB visual inspection
- Connector condition check
- Power supply verification
- I/O signal simulation
- Input/output channel testing
- LED/status verification
- Drive-system compatibility check
A simple power-up test does not confirm I/O functionality.
Frequently Asked Questions
What is ABB 3ASC25H204 ?
It is an ABB I/O Control Board used in ABB ASTAT/DARA/DAPM drive control systems.
Is a PLC module?
No. It is a dedicated ABB drive-system control board.
What is the difference between and DATX100?
- I/O control board
- DATX100: Pulse transformer board
They perform different functions within ABB drive systems.
Where is 3ASC25H204 used?
It is associated with ABB DARA 1000, DARA 1001, DAPM 100, and DAPM 101 drive platforms.
