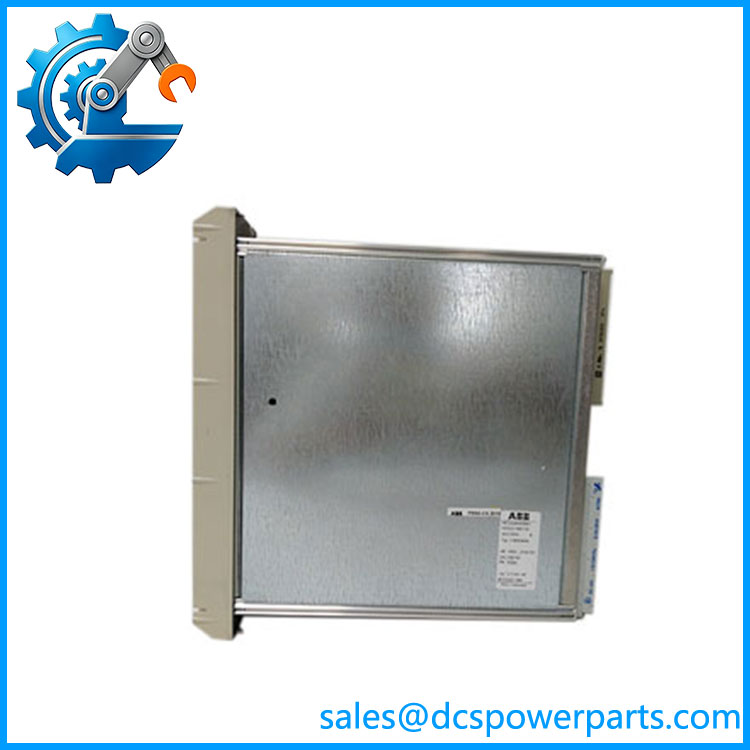

ABB 216NG63A HESG441635R1 HESG216879/K | Auxiliary DC Power Supply | REG 216
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Model | 216NG63A |
| Order Code | HESG441635R1 |
| Additional Identification | HESG216879/K |
| Product Type | Auxiliary DC Power Unit |
| Circuit Type | DC/DC Converter |
| Product Family | RE.216 |
| Typical System | REG 216 / REC 216 |
| Nominal Output | 24 VDC |
| Input Application | Station battery DC |
| Redundancy | Supported in applicable 216NG6-series configurations |
| Protection | Overload and short-circuit protection |
| Status Indication | Input/output status indication |
| Rack Family | 216MB-series |
Available technical references describe the 216NG63/216NG63A as an auxiliary DC supply within the RE.216 system, with 24 VDC output and support for redundant/parallel power configurations. Some published figures differ by variant, so the exact input/output rating should be confirmed against the installed system documentation before engineering approval.
Product Introduction
The is an auxiliary DC power unit used within ABB’s RE.216 protection and control architecture. Its role is fundamentally different from the 216AB61 binary output unit or 216EA61B input unit: it provides the auxiliary power required by the electronic protection hardware and associated I/O assemblies. The unit is part of the 216NG6-series power-supply hardware used in REG 216 and related REC 216 systems.
The HESG216879/K identification is particularly important for procurement because legacy REG 216 systems contain several closely related power and I/O assemblies. The 216NG63A should therefore be matched by complete ordering code, rack configuration, station-battery voltage, and redundancy arrangement rather than by the model number alone. A secondary listing that describes this unit as an AC drive, digital output module, or network processor is not consistent with the stronger RE.216 system evidence.
216NG63A HESG441635R1 HESG216879/K
Application Scenarios & Field Pitfalls — The Engineer’s Perspective
Engineering Pain Point
A power-supply fault in a legacy protection rack can look like a processor or I/O failure. If the 24 VDC auxiliary supply becomes unstable, multiple electronic units can simultaneously report faults, lose communication, or stop operating. Replacing individual protection cards before checking the 216NG63A power path can therefore lead to unnecessary component replacement.
Typical Applications
- REG 216 generator protection: Supplies auxiliary DC power to the electronic protection system.
- REC 216 control systems: Supports the associated control-unit hardware.
- Power plant protection panels: Used with the 216MB-series rack and related electronic units.
- Legacy protection-system maintenance: Replacement of aging auxiliary DC/DC converter hardware.
Technical Pitfalls
1. Do not classify it as an I/O card.
The 216NG63A is an auxiliary power unit. Listings describing it as a 16-channel digital input/output module are not consistent with the RE.216 power-supply architecture.
2. Verify the station battery voltage.
The 216NG6 family contains variants for different DC supply arrangements. One technical listing describes 216NG63 as a 220/250 VDC-class station-battery application, while another source gives a broader 36–312 VDC input family for a particular configuration. These values should not be transferred blindly between variants.
3. Check redundant-power configuration.
The 216NG6-series architecture can support parallel operation for increased capacity or redundancy. Jumper and rack configuration therefore matter when replacing one unit in a redundant system.
4. Check the 24 VDC output before replacing downstream modules.
Measure the auxiliary supply under the actual rack load and inspect the input/output status indication. An intermittent supply can produce apparently unrelated faults across several RE.216 modules.
5. Do not hot-swap without documentation.
Available technical information specifically warns against live insertion/removal of the power unit. Follow the plant’s protection-system isolation and maintenance procedure before removing the module.
6. Match the complete part number.
For procurement, record 216NG63A + + /K exactly. Legacy ABB protection equipment often has several revision and ordering-code combinations that should not be assumed interchangeable.
Related Products
- ABB 216VC62A HESG324442R112/F — Processing unit for the RE.216 protection system.
- ABB 216AB61 HESG324013R101 — 32-channel binary output unit.
- ABB 216DB61 — Binary input and tripping unit.
- ABB 216EA61B HESG448230R1/G — Analog input unit.
- ABB 216GA61 — Auxiliary output relay assembly.
- ABB 216MB66 HESG324511M1 — RE.216 equipment rack.
- ABB 216GW62 — Related RE.216 power/interface hardware.
- ABB 216NG63 — Closely related auxiliary DC supply designation.
- ABB REG 216 — Generator protection system using the 216-series hardware.
Procurement Note
For ABB 216NG63A /K, verify the complete nameplate, station-battery voltage, rack type, output-voltage requirement, and single/redundant power configuration before purchasing. For a critical generator-protection system, the correct power-supply variant is more important than matching the general 216NG63A model designation.
The main engineering classification is: ABB 216NG63A = auxiliary DC power supply / DC/DC converter for the RE.216 protection architecture, not a PLC I/O module or AC drive.
