Description
Product Overview

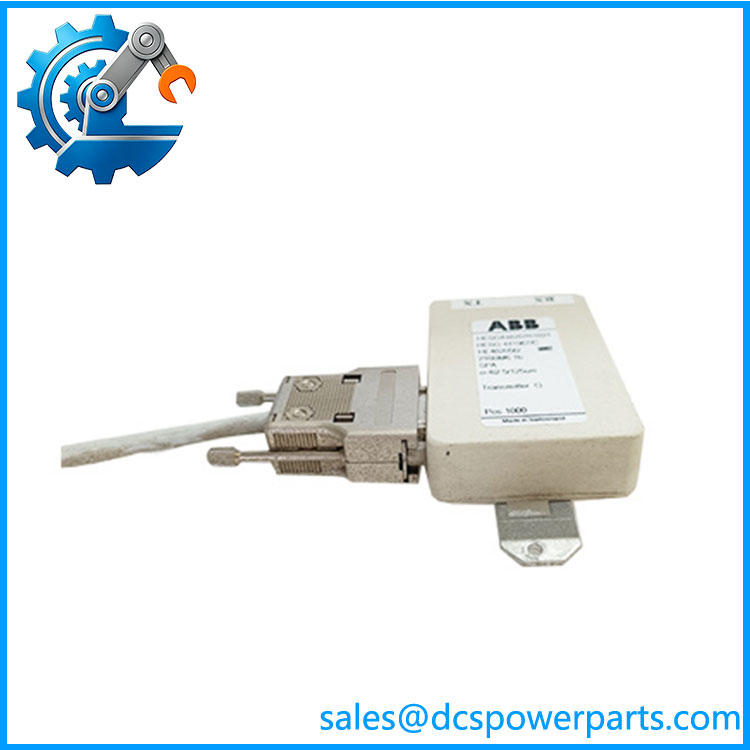

ABB 216BM61b HESG448267R1021 is an optical communication interface used with ABB’s REG216 numerical generator protection system. Unlike generic listings that describe this part as a digital I/O or process-control module, ABB documentation identifies the exact 216BM61b HESG448267R1021 order number as an interface for the RS232C interbay bus, using the SPA communication protocol over optical fiber.
The ABB 216BM61b HESG448267R1021 uses an ST bayonet optical connector and 62.5/125 µm glass optical fiber. Its purpose is to provide galvanically isolated optical communication between protection-system equipment and the associated interbay communication network. This is particularly relevant in substations and generator protection installations, where electrical isolation and reliable communication between protection devices are important. ABB documentation lists the closely related HESG448267R1022 as a different 216BM61b interface for IEC 60870-5-103, demonstrating that the suffix is functionally important.
For procurement, the complete ABB 216BM61b HESG448267R1021 designation should therefore be preserved. It should not be substituted merely because another 216BM61b variant has the same basic optical connector.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Model | 216BM61b |
| Order Number | HESG448267R1021 |
| Product Family | REG216 / REG216 Classic |
| Product Type | Optical Fiber Communication Interface |
| Communication Function | RS232C interbay bus interface |
| Communication Protocol | SPA |
| Physical Medium | Optical fiber |
| Connector | ST bayonet |
| Fiber Type | Glass |
| Fiber Size | 62.5/125 µm |
| Optical Configuration | G/G |
| Application | Generator and substation protection |
| System Function | Interbay communication |
| Related Variant | HESG448267R1022 |
| Related Protocol | IEC 60870-5-103 on R1022 variant |
| Firmware | System-dependent |
| Mounting | REG216/system dependent |
The G/G designation in ABB’s documentation refers to glass fiber for both receiver and transmitter paths.
Main Features and Advantages
SPA Optical Communication
The defining characteristic of 216BM61b HESG448267R1021 is its SPA optical communication interface. ABB specifies this exact order number for SPA communication rather than IEC 60870-5-103.
REG216 Integration
The module is directly associated with ABB’s REG216 / Classic numerical generator protection platform. This makes it a system-specific communication component rather than a general-purpose fiber Ethernet adapter.
Optical Isolation
Using glass optical fiber provides electrical isolation between connected protection-system equipment. In substation environments, this can be important where ground-potential differences and electrical interference are concerns.
ST Optical Connection
The ST bayonet connector is a practical identification point when inspecting an existing installation. The connector and fiber specification should be checked before ordering a replacement.
Protocol-Specific Ordering
ABB lists two different 216BM61b order numbers:
- — SPA
- HESG448267R1022 — IEC 60870-5-103
This distinction is critical.
216BM61b
Application Scenarios
- Generator protection systems
- Substation protection
- numerical protection
- Interbay communication
- SPA-based protection-device networks
- Optically isolated protection communication
- Legacy ABB system maintenance
Engineer’s Guide: Field Pitfalls
WARNING 1 — Do not confuse R1021 with R1022
This is the most important procurement point.
R1021 = SPA
R1022 = IEC 60870-5-103
ABB’s own documentation distinguishes these variants.
A visually similar replacement with the wrong suffix can therefore be electrically installable but functionally incorrect.
WARNING 2 — It is not a generic digital I/O module
Several secondary websites incorrectly describe as a digital I/O, process-control, or general automation module.
The ABB documentation provides much stronger evidence: this exact order number is an RS232C interbay-bus SPA optical interface.
WARNING 3 — Check the fiber type
The specified optical fiber is 62.5/125 µm glass fiber with an ST connector. Do not assume a modern LC/SC multimode patch lead is automatically compatible.
WARNING 4 — Verify the communication architecture
Before replacement, document:
- Protection relay model
- hardware version
- SPA network configuration
- Optical transmit/receive connections
- Fiber type
- ST connector condition
- Interbay communication settings
- Associated communication modules
Frequently Asked Questions
What is ABB 216BM61b ?
It is an ABB optical fiber communication interface for the numerical generator protection system, specifically configured for SPA interbay communication.
What protocol does use?
SPA. ABB’s documentation explicitly assigns the R1021 order number to the SPA version.
What is the difference between R1021 and R1022?
| Order Number | Protocol | Connector |
|---|---|---|
| SPA | ST bayonet | |
| HESG448267R1022 | IEC 60870-5-103 | SMA screw |
Both are associated with 216BM61b, but they serve different communication protocols.
What fiber does it use?
ABB specifies glass optical fiber, 62.5/125 µm, with G/G optical transmission/reception.
Is this an Ethernet module?
No. The documented function is an RS232C interbay-bus interface using SPA over optical fiber, not a conventional 10BASE-T/100BASE-TX Ethernet interface.
What should be tested on a replacement?
For a used or refurbished unit, verify:
- Exact marking.
- PCB and hardware revision.
- ST optical connectors.
- Optical transmitter/receiver operation.
- 62.5/125 µm fiber compatibility.
- SPA communication.
- Communication with the associated equipment.
- Interbay data exchange.
- Alarm/diagnostic status.
- Extended communication stability.
Bottom line: ABB 216BM61b is an SPA optical interbay communication interface for the protection platform. The strongest available technical evidence comes directly from the documentation, which clearly distinguishes it from the IEC 60870-5-103 HESG448267R1022 variant.
