ABB 1TGE120021R0110 | MLink Gateway | MNS iS PROFIBUS Communication

Description

ABB 1TGE120021R0110

Key Technical Specifications

ABB’s MLink manual lists 1TGE120021R0110 as the PROFIBUS hardware selection and identifies the available DCS communication families as PROFIBUS DP/DP-V1, Modbus RTU/TCP, and PROFINET IO. The manual also states that PROFINET is supported for use with ABB 800xA.

Product Introduction

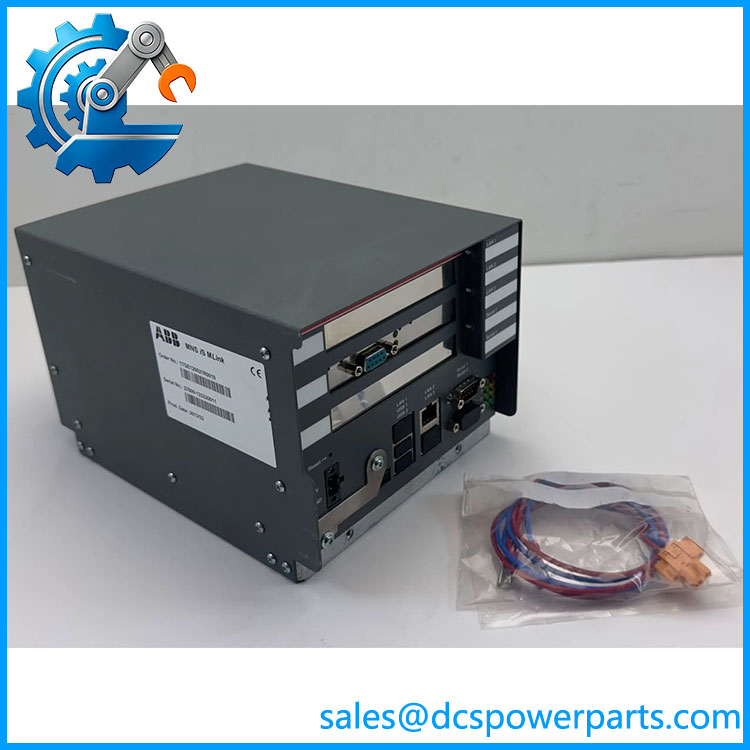

The ABB 1TGE120021R0110 is an MLink Hardware Version 2 communication gateway used in ABB MNS iS intelligent motor control centers. Its principal job is to collect and exchange information between the MNS iS motor-control architecture and a higher-level control system. For the R0110 hardware identifier, the external fieldbus connection is PROFIBUS DP/DP-V1. ABB documentation specifically assigns this hardware to MNS iS installations from Version 6.1 onward.

The MLink platform can provide more than basic cyclic fieldbus communication. Depending on the installed software configuration, functions can include a web server, OPC connectivity, time synchronization, fieldbus communication, and redundant operation. This makes the 1TGE120021R0110 a system-level communication gateway rather than a simple PROFIBUS adapter.

1TGE120021R6111

Application Scenarios & Field Pitfalls — The Engineer’s Perspective

Engineering Pain Point

The biggest replacement risk is treating 1TGE120021R0110 as a generic PROFIBUS gateway. Its communication behavior is tied to the MNS iS architecture, MLink configuration, connected MControl units, and MNavigate configuration. ABB specifically warns in its troubleshooting documentation that PROFIBUS communication problems can result from incorrect slave addressing, termination, cabling, or an incorrect GSD configuration in the DCS.

Typical Applications

• MNS iS intelligent MCCs — Gateway between MNS iS motor-control units and the plant control system.
• PROFIBUS DCS integration — Provides PROFIBUS DP/DP-V1 communication to the supervisory control system.
• PLC/MCC data exchange — Transfers motor status, measurements, commands, alarms, and diagnostic information according to the configured MNS iS data mapping.
• 800xA-connected MNS iS installations — MLink supports multiple higher-level communication architectures, with protocol availability dependent on the installed hardware and software configuration.

Technical Pitfalls to Avoid

1. Do not substitute the Modbus version by part-number similarity.
   ABB identifies 1TGE120021R0010 as the Modbus MLink version and 1TGE120021R0110 as the PROFIBUS version. The external DCS interface is therefore a critical procurement parameter.
2. Check the MNS iS software generation.
   ABB documentation identifies 1TGE120021R0110 as the MLink hardware for MNS iS V6.1 onward. An older installation may use the preceding MLink hardware family.
3. Preserve the PROFIBUS slave address.
   ABB’s troubleshooting procedure specifically calls for checking the MLink slave address and ensuring that the address is not duplicated elsewhere on the network.
4. Verify the DCS GSD file and data mapping.
   A physically correct replacement can still fail at commissioning if the DCS uses the wrong GSD, node address, or configured data structure.
5. Inspect PROFIBUS termination and shielding.
   ABB specifically lists cable connection, shielding, and termination as first-level communication checks. This is particularly important when replacing a gateway after cabinet modifications.
6. Preserve the MLink configuration.
   ABB documentation describes MNavigate as the configuration environment and notes that application files can need to be downloaded to the MLink after a configuration interruption. Back up the existing configuration before replacing the hardware.
7. Do not assume every software module is installed.
   MLink can include Web Server, OPC Server, Fieldbus, Time Synchronization, and Redundant Operation software modules depending on its initial configuration. Hardware replacement alone does not establish that every software function is present.

Related Products

• ABB 1TGE120021R0010 — MLink Hardware Version 2 associated with the Modbus communication configuration; protocol configuration differs from the R0110 PROFIBUS version.
• ABB 1TGE120016R0104 — MNS iS switchgear-bus connector for the documented non-redundant Modbus configuration.
• ABB 1TGE120016R0103 — MNS iS switchgear-bus connector associated with the documented dual-redundant configuration.
• ABB MLink — The communication-gateway platform to which the 1TGE120021R0110 belongs.
• ABB MControl — MNS iS motor-control unit communicating through the MLink architecture.
• ABB MNavigate — Engineering/configuration environment used for MNS iS and MLink configuration.
• ABB MNS iS — Intelligent low-voltage motor-control-center platform in which the MLink gateway operates.
• ABB 800xA — Higher-level automation platform supported for MNS iS PROFINET integration; protocol requirements must be checked for the actual installation.

Procurement and Replacement Note

For ABB 1TGE120021R0110, the critical procurement information is the complete product ID, MNS iS software generation, PROFIBUS configuration, MLink application files, DCS GSD/data mapping, slave address, and installed software modules.

The most important distinction is R0110 = PROFIBUS MLink hardware. Do not replace it with 1TGE120021R0010 simply because the base number looks nearly identical; ABB documents the latter as the Modbus version. Also confirm that the existing MNS iS installation is compatible with the MLink Version 2 hardware identified for V6.1 onward.

For a field replacement, capture the existing MLink configuration in MNavigate, PROFIBUS address, DCS node configuration, GSD version, switchgear-bus connections, and any enabled Web/OPC/time-synchronization functions before removing the original gateway. That information is essential for restoring the MCC communication architecture without changing the plant’s control-system data mapping.
